ABB ES2225VC4K Enclosure Cabinet - IP55
Part Number: ES2225VC4K
Quick Summary
ABB ES2225VC4K is a preassembled enclosure cabinet designed for control and automation panels in industrial facilities. Sourcing a robust cabinet that meets IP55, RoHS, and CE requirements while fitting a 1200x2200 footprint can hinder project timelines. It complies with IEC 62208 and IEC 61439-1-2, and ships with a glazed double-door configuration for visibility and access. The rugged sheet steel build, RAL 7035 finish, and built-in cable container deliver long-term reliability in harsh environments. By combining a compact footprint with clear component visibility, this enclosure helps reduce field wiring complexity and accelerates commissioning, while maintaining regulatory compliance and easy serviceability.
Product Information
Extended Description

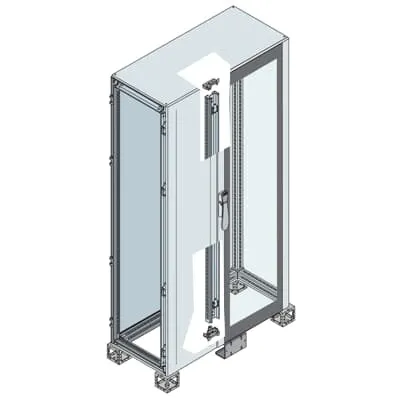

ES2225VC4K ABB: Cabinet with glass door2200x1200x500mm (HxWxD) W=400mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - glazed door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
146.3020 kg
Reference Depth/Length
500 mm
Reference Height
2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
155.640 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Preassembled glazed-door cabinet with integrated cable container streamlines installation, reducing field labor and wiring errors. This translates to faster commissioning on multi-panel layouts and lowers project risk in automotive, packaging, and process automation environments. The glass door enables quick inspections and fault diagnosis without opening the enclosure, supporting maintenance teams and minimizing downtime. The sheet steel construction with an orange peel finish in RAL 7035 delivers durable protection and a professional, low-maintenance appearance in harsh industrial spaces. IP55 protection, combined with IEC 62208 and IEC 61439-1-2 compliance, provides reliable enclosure performance against dust and water ingress in factory floors and controlled environments. Overall dimensions and a built-in cable container support organized layouts, simplifying design and installation for equipment integration and future scalability. RoHS and REACH compliance, along with WEEE considerations, streamline procurement and regulatory alignment across markets.
Get a Quick Quote for a ABB ES2225VC4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2225VC4K?
Enquire Now
FAQs
Choose a stable, level mounting surface that accommodates the 1210 mm width and 1240 mm depth, with clearance for doors and cable access. Since the unit is preassembled with a cable container, plan for integrated wiring paths and enclosure ventilation. Ensure IP55 seals are undisturbed during door operation and confirm mounting against IEC 62208/NEMA compatibility for your location.
Key specs include an IP55 protection rating, glass double doors, and a sheet steel body finished in RAL 7035. External dimensions are 1210 mm wide by 2311.5 mm high by 1240 mm deep, with a net weight around 146.3 kg. It supports RoHS/REACH compliance, CE declaration, and aligns with IEC 62208 and IEC 61439-1-2 standards.
Yes. The ES2225VC4K is designed to comply with IEC 62208 and IEC 61439-1-2, supporting safe, standardized enclosure use in industrial environments. It also offers NEMA compatibility with related IEC/UL expectations and a robust IP55 rating to protect internal components from dust and moisture in manufacturing floors, control rooms, and semi-outdoor spaces.
The preassembled design reduces field labor during installation and commissioning, delivering faster project completion and lower labor costs. The glass door improves visibility for diagnostics, reducing downtime. Durable sheet steel construction and reliable RoHS/REACH compliance help minimize maintenance frequency and regulatory risk, delivering steady long-term operating cost savings in continuous production environments.
The cabinet features a built-in cable container and a glazed door configuration with double doors for easy access and inspection. Its preassembled nature simplifies integration with control panels, while IEC/NEMA compatibility and ETIM classifications support procurement workflows. For upgrades, plan around the reference dimensions (1200x2200 mm footprint) and ensure future panel additions remain within the 1210 mm net width.
