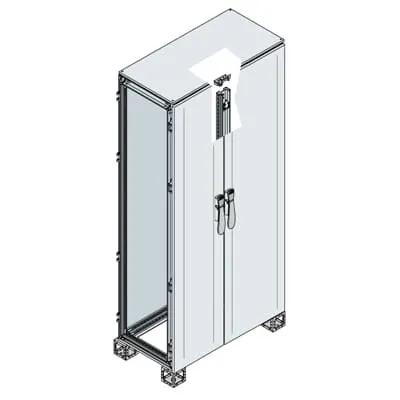

ABB ES2226FV4K Cabinet Enclosure - IP55 Rated
Part Number: ES2226FV4K
Quick Summary
ABB ES2226FV4K cabinet enclosure protects control and automation boards in industrial switch rooms and machine environments. As equipment complexity grows, users need a reliable, IP-rated housing with easy access to wiring and components. This enclosure is CE-declared and designed to IEC 61439-1-2 standards, with IP55 protection and robust material. Its pre-assembled construction, double doors, and cable container simplify installation and ensure scalable, safe operation. The compact footprint and standard color finish support rapid deployment across automation projects while reducing field engineering time.
Product Information
Extended Description
ES2226FV4K ABB: Cabinet with blind door 2200x1200x600mm (HxWxD) W=400mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - blind door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
155.4380 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
165.360 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: IP55 protection and sheet steel construction. Business Impact: Trusted protection against dust ingress and water splashes reduces unexpected downtime and equipment wear. Application: ideal for harsh factory floors and outdoor control cabinets in industrial automation. Feature: Pre-assembled mounting with a blind door and cable container. Business Impact: speeds installation, lowers on-site labor costs, and minimizes commissioning time. Application: new line builds or retrofits where quick deployment is critical. Feature: Double door with opaque door surface and orange peel finish (RAL 7035). Business Impact: improved access for maintenance and wiring while maintaining a professional, corrosion-resistant exterior. Application: control cabinets in process automation and machine building. Feature: Compliance and standards bundle (IEC 62208, IEC 61439-1-2, NEMA equivalents, CE). Business Impact: ensures regulatory alignment, simplifies procurement, and reduces risk during audits. Application: certified environments in industrial sectors with strict safety and reliability requirements. Feature: Accessible dimensions and cable management (Net width 1210 mm, net height 2311.5 mm, net depth 1240 mm; Weight 155.4 kg). Business Impact: predictable fit within existing plant layouts and easier handling during installation. Application: scalable to mid-sized automation projects with standard control hardware.
Get a Quick Quote for a ABB ES2226FV4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2226FV4K?
Enquire Now
FAQs
The ES2226FV4K arrives pre-assembled with a blind door and cable container, designed for straightforward mounting on standard bases. Align to the reference width of 1200 mm and height around 2200 mm, then secure using conventional M6 mounting hardware. Verify IP55 seals after installation and route cables through the container for clean wiring and compliance with IEC 60529 guidance.
Key specs include IP55 protection, sheet steel construction with orange peel finish (RAL 7035), double doors, and a durable pre-assembled enclosure. It complies with IEC 62208 and IEC 61439-1-2, carries CE conformity, RoHS and REACH declarations, and is suitable for environments governed by WEEE classification. Net dimensions are approximately 1210 mm width by 2311.5 mm height by 1240 mm depth, with a net weight around 155 kg.
Yes. The enclosure is designed for control and automation boards in machine building and process automation environments. Its IP55 rating protects sensitive electronics from dust and moisture, while CE/IEC compliance supports industrial procurement. The cable container and pre-assembled mounting simplify integration with standard control hardware and drive systems, enabling faster project ramp-up and safer, more reliable operation.
This cabinet enclosure adheres to CE declarations and CE conformity IS2, IEC 61439-1-2 and IEC 62208, and is compatible with NEMA 1, 3R, 12 configurations. It carries RoHS and REACH information, WEEE guidance, and ETIM/EC classifications for enclosure products. These certifications help ensure regulatory alignment, simplify vendor qualification, and support robust compliance reporting.
The ES2226FV4K reduces field engineering time through pre-assembly and cable management features, enabling faster deployment and quicker commissioning. Its IP55 protection minimizes maintenance incidents caused by dust and moisture, boosting uptime. Although exact ROI depends on your plant, typical gains include shorter project timelines, lower on-site labor costs, and improved reliability for automated control systems.
