ABB ES2226K Enclosure/Cabinet - IP55, IEC 62208
Part Number: ES2226K
Quick Summary
ABB ES2226K Enclosure/Cabinet is a pre‑assembled control housing designed for electrical panels in factory automation and process control. Engineers often struggle with time-consuming field assembly, door misalignment, and inconsistent protection ratings; this cabinet fixes those issues with a double-door configuration and an intermediate upright for modular wiring. It complies with IEC 62208 and IEC 61439-1-2, carries CE conformity, and offers IP55 protection, RoHS information, and REACH declarations for regulatory assurance. The rugged sheet steel enclosure finished in orange-peel RAL 7035 delivers longevity in harsh environments while supporting IS2 enclosure catalog integration. In short, you gain faster installation, reliable protection, and scalable capacity for growing control systems.
Product Information
Extended Description

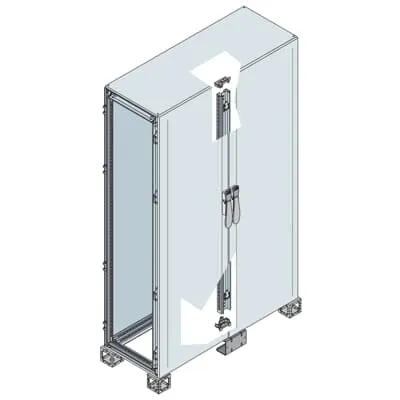

ES2226K ABB: Cabinet with double blind door 2200x1200x600mm (HxWxD)
Configuration Type
3. Cabinet with double door and intermediate upright
Enclosure Type
Pre assembled - cabinet with double blind door and intermediate upright
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
153.9340 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
163.760 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: Double-door with intermediate upright enables easier wiring access and modular routing, reducing panel assembly time and error rates, ideal for compact control panels in automated lines. Feature → Business Impact → Application: Pre assembled construction minimizes on-site labor and field alignment problems, accelerating deployment in new lines or plant upgrades. Feature → Business Impact → Application: IP55 protection provides robust dust and water ingress defense for factory floors and outdoor-adjacent electrical rooms, extending component life. Feature → Business Impact → Application: Orange Peel surface finish in RAL 7035 delivers durable aesthetics with high visibility and corrosion resistance, suitable for maintenance teams in busy environments. Feature → Business Impact → Application: Dimensions W 1210 x H 2311.5 x D 1240 mm and 153.9340 kg weight balance internal space for controllers, drives, and terminal blocks, enabling scalable panel design. Feature → Business Impact → Application: RoHS/REACH compliance and CE declaration, plus ETIM alignment and IEC/NEMA references, streamline procurement, regulatory audits, and cross‑site standardization.
Get a Quick Quote for a ABB ES2226K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2226K?
Enquire Now
FAQs
The ES2226K is a preassembled enclosure with a double-door configuration and intermediate upright, designed for straightforward panel mounting and wiring. It supports IEC 62208 and IEC 61439-1-2 standards, CE conformity, and a robust IP55 rating, ensuring reliable operation in typical industrial environments while simplifying on-site integration with existing control systems.
The cabinet features a net width of 1210 mm, net height of 2311.5 mm, and net depth of 1240 mm, with a net weight of 153.9340 kg. Package level 1 units are 1 piece with a gross weight of 163.760 kg. This sizing supports mid- to large‑size control panels and modular component layouts.
Ideal for factory automation, process industries, and electrical rooms requiring robust protective enclosures. The double-door, intermediate upright arrangement accommodates modular wiring and devices, supporting scalable control panels for manufacturing lines, packaging machines, and energy management subsystems, while meeting industry standards for safety and reliability.
The ES2226K complies with IEC 62208 and IEC 61439-1-2, carries CE conformity with an official Declaration of Conformity, and meets RoHS and REACH requirements. It also aligns with ETIM classifications and is compatible with IS2 Enclosures Technical Catalogue 2024, ensuring regulatory compliance and supplier standardization across projects.
The pre‑assembled design reduces field labor, minimizes misalignment risks, and shortens installation time, delivering faster project completion and lower labor costs. With provided manuals (1STM604121R0006) and access to the IS2 catalogue data sheet, teams gain consistent maintenance guidance, lower lifecycle risk, and a clear pathway for scalable upgrades without replacing the entire cabinet.
