ABB ES2226MF4K Cabinet - IP55 Enclosure, IS2 Catalog
Part Number: ES2226MF4K
Quick Summary
ABB ES2226MF4K Cabinet is a rugged control and automation enclosure designed for industrial environments and switchgear rooms. It simplifies integration by offering a preassembled configuration with compartments, addressing common on-site assembly challenges. This cabinet meets IP55 protection and CE conformity, with IEC 62208 and IEC 61439-1-2 compatibility to support safe, reliable operation. RoHS and REACH compliance further reinforce environmental responsibility, while the IS2 Enclosures Technical Catalogue 2024 context helps ensure long-term support and spare parts availability. For panel builders and system integrators, the ES2226MF4K delivers predictable lead times, clear dimensional data, and a scalable platform for future expansion with minimized lifecycle risk.
Product Information
Extended Description

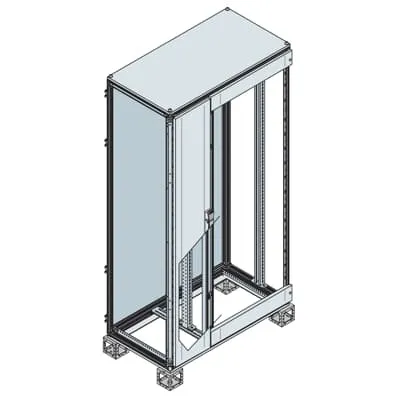

ES2226MF4K ABB: Cabinets for compartments 2200x600x1200mm (HxDxW) with Cable container W=400mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
135.3130 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
143.950 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: Preassembled cabinet with compartments reduces on-site assembly time and risk of misalignment, enabling faster project delivery and consistent build quality for control panels in automotive and packaging lines. This translates to lower labor costs and improved uptime in high-mix production environments. Feature → Business Impact → Application: IP55 rated enclosure protects sensitive electronics from dust and water ingress, minimizing panel failures in challenging factory floors and outdoor installations. Ideal for process equipment, conveying systems, and material handling where enclosure integrity is critical. Feature → Business Impact → Application: Orange Peel surface in RAL 7035 delivers durable, easy-to-clean aesthetic with long-term UV and chemical resistance, supporting cleanliness standards in electronics assemblies and food-packaging lines. Feature → Business Impact → Application: Double door design provides wide access for wiring, maintenance, and component replacement, improving serviceability in limited-access control rooms and cabinet bays. Feature → Business Impact → Application: Cable container W=400mm facilitates neat cable routing and separation of power and signal runs, reducing heat buildup and simplifying future rework in large control cabinets. Feature → Business Impact → Application: Compliance with RoHS/REACH and ETIM class codes ensures procurement compatibility and regulatory assurance, reducing supplier risk and enabling seamless catalog integration across MES/ERP systems. Feature → Business Impact → Application: Steel sheet construction with ISO-compliant dimensions supports robust enclosure performance in harsh environments, suitable for IEC-based control systems, NEMA-rated applications, and multi-vendor integration in manufacturing plants.
Get a Quick Quote for a ABB ES2226MF4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2226MF4K?
Enquire Now
FAQs
The ES2226MF4K is a preassembled enclosure with compartments, designed for quick integration into existing panels. Ensure the mounting surface supports the 1200x600 footprint and confirm IP55 sealing against dust and water jets. Use standard mounting holes and verify CE declarations are in place before commissioning.
The cabinet includes a cable container with W=400mm to organize power and signal cables, reducing cross-talk and heat buildup. Compartmental configuration enables separate zones for drives, PLCs, and I/O modules, improving maintainability and safety during expansion or rework.
Yes. The enclosure complies with CE declarations, IEC 62208 and IEC 61439-1/2, and is compatible with ETIM EC000261 class codes for enclosure cabinets. It also aligns with RoHS and REACH requirements, ensuring regulatory compliance across most industrial procurement environments.
Industries such as automotive manufacturing, packaging, food processing, and general industrial automation benefit from its rugged construction, compartmentalized layout, and IP55 protection. The cabinet supports scalable control architectures and simplifies integration with modular automation components in high-demand production lines.
The preassembled, compartmented design reduces installation time and field rework, lowering labor costs. Durable orange-peel finish and RoHS/REACH compliance minimize maintenance cost and risk of component replacement, delivering improved uptime and longer service intervals in demanding factory settings.
