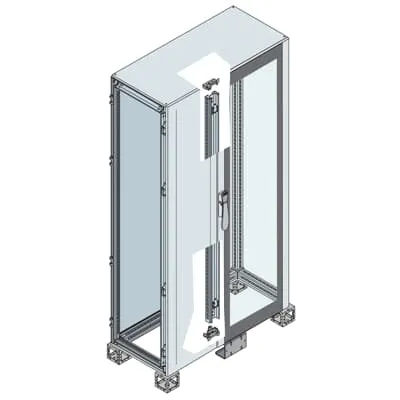

ABB ES2226VC4K Cabinet with Glass Door - IP55
Part Number: ES2226VC4K
Quick Summary
ABB ES2226VC4K is a cabinet enclosure for control and automation panels in industrial environments. It is designed to simplify installation challenges by offering a pre-assembled solution that reduces on-site wiring and mounting time. Many buyers struggle with finding robust enclosures that meet CE, RoHS/REACH, and IP protection requirements while maintaining accessibility for maintenance. This unit delivers CE conformity, RoHS and REACH compliance, and an IP55 rating, helping you meet regulatory and safety standards with less effort. The combination of a glazed door and cable container supports organized wiring and clear visibility of interior components, delivering tangible business value through improved uptime and faster commissioning. Consider this enclosure for industrial applications requiring reliability, compliance, and professional aesthetics like IS2 Enclosures Catalogue 2024.
Product Information
Extended Description
ES2226VC4K ABB: Cabinet with glass door2200x1200x600mm (HxWxD) W=400mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - glazed door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
151.0960 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
160.740 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Pre-assembled cabinet with glazed door provides rapid installation and predictable performance, reducing field wiring time and commissioning risk. The glass door enables quick visual inspection of components, improving maintenance response times and reducing downtime. The orange peel finish in RAL 7035 offers long-term durability and a professional industrial appearance that resists wear in harsh environments. The cable container and door configuration simplify internal cabling, enabling easier EMC management and future reconfiguration without bulky rewiring. Material and construction from sheet steel deliver robust protection against dust and incidental impact, with IP55 sealing to guard against water jets and dust ingress. Regulatory compliance—CE, RoHS, REACH, IEC/NEMA standards—ensures safe, traceable sourcing and accelerated purchasing approvals. These factors translate into lower total cost of ownership and faster plant readiness.
Get a Quick Quote for a ABB ES2226VC4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2226VC4K?
Enquire Now
FAQs
Leverage the pre-assembled design to minimize on-site work. The cabinet features a fixed cable container and a pre-mounted door assembly for rapid alignment. Verify mounting on a level base using standard factory mounting points, connect input/output cabling through the cable container, and ensure internal components fit within 1,210 mm width and 2,311.5 mm height to avoid clearance issues.
Key specs include IP55 protection, a 1,210 mm width, 2,311.5 mm height, 1,240 mm depth, and 151.1 kg net weight. The finish is orange peel, RAL 7035, with a transparent door surface. The enclosure complies with CE, RoHS, REACH, IEC 62208, IEC 61439-1-2 and is compatible with NEMA 1, 3R, 12, ensuring broad electrical and environmental resilience.
IP55 protection supports dust resistance and protection against water jets, making it suitable for indoor industrial spaces and sheltered outdoor applications. For harsher outdoor exposure, ensure installation under a canopy or within a protective enclosure. The IS2 Enclosures Catalogue 2024 guidance confirms suitability for typical plant rooms and process areas where visibility and accessibility matter.
The enclosure carries CE conformity with a Declaration of Conformity, RoHS information and REACH declaration, and standards alignment to IEC 62208 and IEC 61439-1-2, plus NEMA 1, 3R, 12. These certifications support regulatory compliance, traceability, and market access across sectors such as manufacturing and process automation.
Pre-assembled construction reduces field wiring and on-site assembly labor, shortening commissioning cycles and lowering risk of wiring errors. Durable sheet-steel construction and IP55 sealing help minimize maintenance costs, while quick access for inspection enhances uptime. The result is faster project realization and a lower total cost of ownership over the cabinet’s lifecycle.
