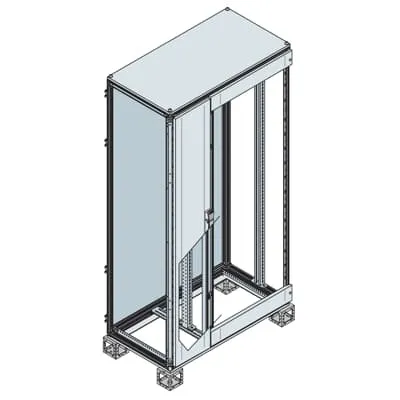

ABB ES2228MF4K Cabinet for compartments - IP55
Part Number: ES2228MF4K
Quick Summary
ABB ES2228MF4K cabinet for compartments is a robust control and automation enclosure designed for demanding industrial environments. It consolidates equipment, cables, and control panels within a single, configurable housing to simplify deployments. A common pain point is lengthy on-site assembly and inconsistent protection; this pre-assembled cabinet minimizes field labor and accelerates commissioning. The design aligns with CE, RoHS, and REACH requirements and carries IEC 62208 and IEC 61439-1-2 guidance, along with IP55 protection. With compatible standards and a proven finishing process, it delivers reliable performance and long-term compliance. This solution also supports scalable configurations and faster maintenance, while reinforcing overall project value for automation initiatives.
Product Information
Extended Description
ES2228MF4K ABB: Cabinets for compartments 2200x800x1200mm (HxDxW) with Cable container W=400mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
144.8070 kg
Reference Depth/Length
800 mm
Reference Height
2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
154.050 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre assembled cabinet with compartments simplifies site installation and minimizes bespoke assembly time. Business impact: faster commissioning, reduced field labor, and fewer scheduling risks. Application: control cabinets for automation on manufacturing lines and plant automation rooms. Feature: IP55-rated enclosure provides rugged environmental protection. Business impact: resilience against dust and water ingress lowers maintenance costs and extends service life. Application: production floors, workshops, and outdoor plant areas where reliable enclosure performance is required. Feature: Sheet steel body with orange peel finish in RAL 7035 delivers durable protection and consistent aesthetics. Business impact: lower risk of corrosion damage and easier color-matching with plant infrastructure. Application: harsh industrial environments and electrical installations where uniform appearance matters. Feature: Dimensions and cable container support efficient cable management, with a 400 mm container and reference dimensions 2200x1200x800 mm. Business impact: organized wiring reduces installation time and simplifies upgrades. Application: PLCs, power distribution, and signal routing inside a single, scalable cabinet. Feature: Compliance and standards alignment including CE, RoHS, REACH and IEC 62208/61439-1-2. Business impact: regulatory risk mitigation and quality assurance across projects. Application: industrial automation, energy, and process industries requiring certified enclosures. Feature: Pre-assembled mounting and ETIM/eClass classifications support quick procurement and seamless integration with BIM and purchasing workflows. Business impact: faster sourcing, reduced part numbers, and compatibility with IS2 Enclosures Technical Catalogue 2024. Application: procurement teams and engineers standardizing enclosures across sites.
Get a Quick Quote for a ABB ES2228MF4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2228MF4K?
Enquire Now
FAQs
ABB ES2228MF4K is a pre-assembled enclosure designed for configuration with compartments. It fits standard control cabinet footprints and integrates with IS2 enclosure classifications. Pre-installed mounting and cable management features reduce on-site adaptation time, making it ideal for retrofit projects and new automation lines alike.
Key specs include IP55 protection per IEC 60529, dimensions of reference height 2200 mm, reference width 1200 mm, reference depth 800 mm, and product net dimensions of approximately 1210 mm by 2311.5 mm by 1240 mm. Material is sheet steel with orange peel finish in RAL 7035, with a net weight around 144.8 kg.
Yes. The enclosure is designed to meet IEC 62208 and IEC 61439-1-2 standards, aligning with NEMA equivalents (1, 3R, 12) where applicable. This ensures electrical safety, reliability, and compatibility with regulatory requirements in industrial automation environments.
The cabinet carries CE declaration of conformity and RoHS/REACH compliance, including a REACH information and date of declaration. WEEE categorization indicates the product is not within WEEE scope, and it references IS2 enclosures standards for catalog alignment.
The ES2228MF4K reduces commissioning time and on-site labor through pre-assembly, minimizing field errors and downtime. Its standardized build and compliant components lower regulatory risk and simplify procurement, delivering faster project completion and improved maintenance cycles across automation deployments.
