ABB ES2228VC4K Other/Miscellaneous - IP55 Enclosure
Part Number: ES2228VC4K
Quick Summary
ABB ES2228VC4K provides rugged control and automation cabinet solutions for industrial manufacturing environments. Engineers often struggle with space constraints, cable management, and ensuring compliance throughout installation and operation. It meets IEC 62208 and IEC 61439-1-2 standards, carries CE conformity, and offers IP55 protection for harsh environments. This pre-assembled, glazed-door enclosure simplifies installation, accelerates commissioning, and supports compliant, dependable control systems. By aligning with IS2 enclosures guidelines and RoHS/REACH declarations, ABB delivers a scalable solution that reduces downtime and total cost of ownership while supporting easy integration with standard automation components and power distribution.
Product Information
Extended Description

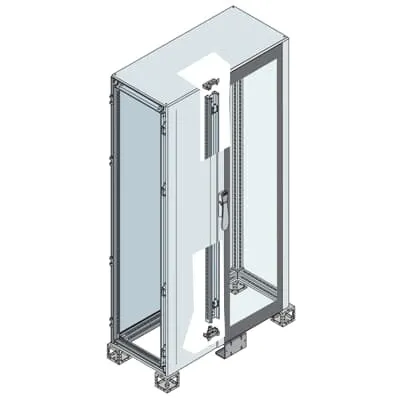

ES2228VC4K ABB: Cabinet with glass door2200x1200x800mm (HxWxD) W=400mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - glazed door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1210 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1240 mm
Product Net Weight
160.580 kg
Reference Depth/Length
800 mm
Reference Height
2200 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
170.830 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Cabinet with cable container is integrated into a pre-assembled glazing door enclosure, delivering faster field wiring and simplified assembly. By consolidating cable paths inside a dedicated container, technicians spend less time on routing and labeling, which translates into shorter commissioning windows and reduced labor costs. This structure is ideal for control panels and machine enclosures in automated lines, where reliability and accessibility matter most. IP55 protection guards internal components from dust and water ingress, minimizing unplanned downtime and extending service intervals. For systems with frequent washdowns or dusty shop floors, this rating provides dependable performance without protective housings. Constructed from sheet steel with an orange peel finish (RAL 7035) and a transparent double door, the enclosure combines durability with visibility for easier component inspection and maintenance. Dimensions of 1210 mm width, 2311.5 mm height, and 1240 mm depth, along with a net weight around 160.580 kg, support stable mounting and precise room planning. RoHS and REACH compliance, CE declaration, and WEEE-not-in-scope status simplify regulatory adherence across global sites, while ETIM EC000261 and eClass V11.1 27180101 classifications help with accurate online cataloging and procurement. The pre-assembled, cable-container-enabled design reduces field wiring time and accelerates commissioning, delivering tangible reductions in total cost of ownership over the system lifecycle.
Get a Quick Quote for a ABB ES2228VC4K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2228VC4K?
Enquire Now
FAQs
Yes. The ES2228VC4K is designed as a pre-assembled enclosure with a built-in cable container, aligning with IS2 enclosure standards for electrical cabinets. The double-glazed door and mounting type facilitate straightforward integration into existing layouts, helping you achieve faster commissioning and consistent cabling across multiple panels.
The cabinet achieves IP55 protection per IEC 60529, protecting internal components from dust and water ingress. It complies with IEC 62208 and IEC 61439-1-2, carries CE conformity, and supports RoHS and REACH declarations, making it suitable for rigorous industrial environments and compliant across global sites.
Ideal for factory automation, machine control panels, and process industry electrical cabinets, the ES2228VC4K’s glazed double door, cable container, and robust sheet steel build support reliable control during washdowns, dust exposure, and demanding temperature cycles, while providing easy equipment visibility for routine inspection.
This enclosure ships with a CE Declaration of Conformity (IS2) and supports RoHS/REACH compliance with declared dates. It also aligns with ETIM EC000261, eClass V11.1 27180101, and WEEE guidance, ensuring procurement systems and sustainability reporting can cite standardized classifications.
The pre-assembled design with an integrated cable container reduces field wiring time and simplifies installation, lowering labor costs and commissioning time. Durable materials and compliant construction minimize downtime and maintenance needs, delivering a lower total cost of ownership across equipment lifecycles and multiple sites.
