ABB ES2244K Cabinet - IP55 Enclosure, CE/IS2
Part Number: ES2244K
Quick Summary
ABB ES2244K cabinet enclosure provides a ready-to-install control and automation panel solution for industrial facilities. Owners face downtime when installations lag behind design specs; this pre-assembled cabinet reduces on-site assembly and integration risk. It aligns with CE and IEC requirements, delivers IP55 protection, and RoHS/REACH compliance for safer, compliant operations. With an orange peel finish in RAL 7035 and standardized mounting, it speeds procurement and simplifies future upgrades. As part of the IS2 Enclosures Catalogue 2024 family, ES2244K is ready for demanding environments, with documented installation manuals and CE conformity. This combination of rugged build and clear regulatory alignment translates to lower total cost of ownership and faster time-to-value.
Product Information
Extended Description

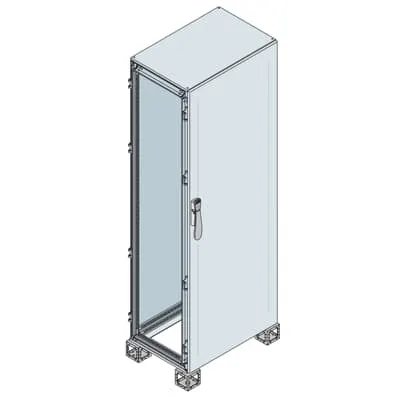

ES2244K ABB: Cabinet with blind door 2200x400x400mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
410 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
440 mm
Product Net Weight
65.0950 kg
Reference Depth/Length
400 mm
Reference Height
2200 mm
Reference Width
400 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
69.250 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: The cabinet ships pre-assembled with a blind door, dramatically reducing on-site assembly time and commissioning risk; this enables faster project timelines and lower labor costs in panel building and factory installations. The result is a faster time-to-value for automation projects and easier maintenance planning for OEMs and integrators. Feature → Business Impact → Application: Orange Peel finish in RAL 7035 provides durable corrosion resistance and easy visual inspection, reducing repaint cycles in harsh environments and improving long-term reliability for process lines and packaging machinery. Feature → Business Impact → Application: Sheet steel construction and a single door configuration simplify enclosure routing and service access, improving fault diagnosis speed and facilitating modular expansions in control rooms and machine cells. Feature → Business Impact → Application: IP55 protection, RoHS/REACH compliance, and CE declarations ensure regulatory alignment and safer operation, lowering risk during audits and enabling cross-border project deployment in manufacturing and water/energy sectors. Feature → Business Impact → Application: Dimensions and mounting compatibility (pre-assembled, 400 mm reference depth, 2200 mm height, 410 mm net width) provide a predictable fit with ABB and third-party control panels, reducing integration challenges on new lines and upgrades. Feature → Business Impact → Application: Documentation, including IS2 catalogue references and installation manuals (1STM604121R0006), supports faster procurement, easier wiring, and consistent service handoffs for maintenance teams in automotive, food & beverage, and packaging facilities.
Get a Quick Quote for a ABB ES2244K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2244K?
Enquire Now
FAQs
The ES2244K is a pre-assembled cabinet with a single door designed for straightforward integration. Its mounting type is pre-assembled, with a reference depth of 400 mm and a product net width of 410 mm, allowing compatible layout planning with ABB and third-party control components. Installation manuals (1STM604121R0006) provide wiring and panel-mount guidance to minimize commissioning time.
This enclosure features an IP55 protection rating per IEC 60529, suitable for dust and water exposure in many industrial settings. It uses sheet steel metal construction with an orange peel finish in RAL 7035, and a single door design for easy access. The unit weighs about 65.095 kg (net) and is designed for durable, long-term service in factory environments.
The ES2244K complies with CE declarations of conformity and RoHS/REACH requirements, with relevant standards including IEC 62208 and IEC 61439-1-2, as well as applicable NEMA configurations. ETIM classifications are EC000261 for enclosure/cabinet (empty) across ETIM 8 and 9, and it aligns with IS2 Enclosures Catalogue 2024 for broader industry compatibility.
The cabinet references 2200 mm height and 400 mm width/depth, with a product net width of 410 mm and net depth of 440 mm. The product net height is 2311.5 mm, and the net weight is 65.095 kg. Package level 1 unit weight is approximately 69.250 kg, which informs handling and shipping planning for installation teams.
Ideal for control panels and automation cabinets in manufacturing lines, packaging machines, and process automation setups. The ES2244K’s pre-assembled design, IP55 protection, CE/RoHS compliance, and IS2-aligned documentation support rapid deployment, reduced field wiring, and easier upgrades, making it suitable for facilities aiming to improve uptime, regulatory compliance, and maintenance efficiency.
