ABB ES2245K Cabinet - 5B5B10B110 IP55 Enclosure
Part Number: ES2245K
Quick Summary
ABB ES2245K cabinet for robust control and automation housing in industrial facilities. This pre-assembled enclosure minimizes field wiring complexity and speeds up deployment, helping projects hit tight timelines. The design offers reliable IP55 protection, CE conformity, and RoHS/REACH compliance, ensuring operation in harsh environments while maintaining regulatory integrity. With a durable orange peel finish in RAL 7035 and a sheet steel construction, it balances ruggedness with professional aesthetics. For systems integrators and OEMs, the ES2245K delivers repeatable quality, easier spare parts planning, and scalable integration with existing IS2 enclosure standards and catalog references.
Product Information
Extended Description

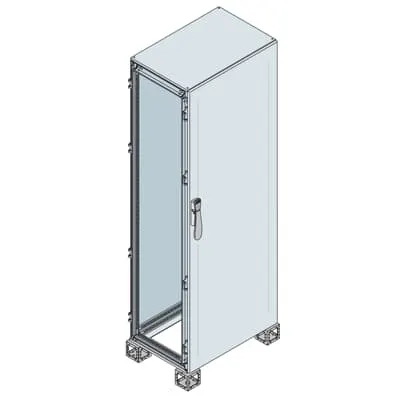

ES2245K ABB: Cabinet with blind door 2200x400x500mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
410 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
440 mm
Product Net Weight
67.3420 kg
Reference Depth/Length
500 mm
Reference Height
2200 mm
Reference Width
400 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
71.640 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled cabinet with blind door → Business Impact: Reduces installation time and on-site labor, improves wiring organization, and ensures consistent build quality. Application: Ideal for new control panels and machine cells where fast commissioning is essential. Feature: IP55 protection → Business Impact: Provides reliable dust and water ingress protection, minimizing downtime due to environmental exposure. Application: Suitable for manufacturing floors, packaging lines, and processing environments with dust or spray challenges. Feature: Material and finish (Sheet steel, Orange Peel, RAL 7035) → Business Impact: Durable coating and structural rigidity extend service life and reduce repaint cycles. Application: Enclosures located on production floors or outdoor-adjacent areas requiring long-term aesthetics and corrosion resistance. Feature: Single door, pre-assembled mounting → Business Impact: Streamlines installation and simplifies maintenance access, reducing commissioning risk. Application: Control cabinets housing PLCs, drives, and I/O modules in compact footprints. Feature: Dimensions and footprint (410 mm net width, 2311.5 mm net height, 440 mm net depth; reference 400x2200x500) → Business Impact: Predictable mounting, easy integration with existing frames and rail systems. Application: Standardized installations in automation rooms and panel sections with constrained space. Feature: Compliance and standards (IEC 62208/IEC 61439-1-2, NEMA 1,3R,12, RoHS, REACH) → Business Impact: Regulatory-ready, safer procurement cycles, and risk mitigation for regulated industries. Application: Deployments in electrical rooms, process lines, and facilities requiring recognized standards and traceability.
Get a Quick Quote for a ABB ES2245K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2245K?
Enquire Now
FAQs
The ES2245K arrives pre-assembled with a single blind door, designed for straightforward mounting. Plan for standard panel mounting rails and anchor points, connect field wiring through provided access points, and follow EC/IEC installation guidelines to ensure IP55 integrity and proper grounding.
Key specs include a net width of 410 mm, net height of 2311.5 mm, net depth of 440 mm, reference dimensions 400x2200x500 mm, material sheet steel with orange Peel finish in RAL 7035, IP55 protection, and a single door. It supports pre-assembled mounting and is CE/RoHS/REACH compliant.
Yes. The ES2245K carries a CE Declaration of Conformity and RoHS information, with REACH declarations ensuring regulatory compliance for materials and finished product across standard European and international markets.
It is ideal for control panels housing PLCs, drives, and I/O modules in manufacturing lines, packaging, and process automation. Its IP55 rating makes it suitable for production floors and semi-harsh environments where reliable protection and quick deployment matter.
The enclosure aligns with IEC 62208 and IEC 61439-1-2, and is compatible with NEMA 1, 3R, 12 configurations. ETIM classifications EC000261 apply to enclosures, and the product is referenced in the IS2 Enclosures Technical Catalogue 2024 for broad compatibility.
