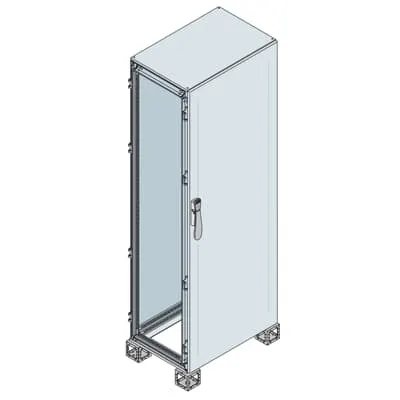

ABB ES2246K Cabinet - IP55 Enclosure
Part Number: ES2246K
Quick Summary
ABB ES2246K Cabinet is a pre assembled enclosure for control and automation in harsh industrial environments. On-site installation pain points often include lengthy wiring, misalignment, and extended commissioning; this cabinet is designed to reduce those delays with pre mounted components and a robust build. It carries CE conformity, RoHS and REACH compliance, and an IP55 rating for reliable operation in dusty or wet areas. By delivering a durable, standards-aligned enclosure, it helps you shorten time-to-value, simplify audits, and improve panel reliability for machine builders and system integrators.
Product Information
Extended Description
ES2246K ABB: Cabinet with blind door 2200x400x600mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
410 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
440 mm
Product Net Weight
69.5880 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
400 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
74.030 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: Pre assembled cabinet with blind door reduces on-site assembly time and wiring errors, accelerating project timelines for automation cabinets and control panels in manufacturing lines. Result: faster deployment, lower commissioning costs, and improved first-fill reliability in OEM environments. Feature → IP55 protection and sheet steel construction provide durable enclosure protection against dust and water ingress, supporting longer service life in factory floors where humidity and debris are common. Result: reduced maintenance calls and extended service intervals for harsh environments. Feature → RoHS and REACH compliance plus IEC standards alignment (IEC 62208, IEC 61439-1-2) ensure regulatory compliance and safer procurement across global sites. Result: easier audits, fewer compliance risks, and cost avoidance on non-compliant components. Feature → Orange Peel surface finish in RAL 7035 delivers both aesthetics and corrosion resistance in industrial settings. Result: reduced repainting needs and a professional look across multiple panels. Feature → Pre assembled mounting and single door design simplify retrofits and upgrades in existing machines. Result: lower risk during modernization projects and smoother integration with existing backplanes and accessories. Industry-insight: The ES2246K is well-suited for machine builders and panel builders requiring reliable, compliant control enclosures with predictable lead times.
Get a Quick Quote for a ABB ES2246K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2246K?
Enquire Now
FAQs
The ES2246K is a pre assembled enclosure with mounting pre configured for rapid integration. External dimensions are 2200 mm H x 400 mm W x 600 mm D, with a reference width of 400 mm and a net width of 410 mm. Its single door, pre assembled design reduces field wiring and alignment tasks, allowing straightforward retrofit or expansion of existing panels while maintaining IEC 62208/61439-1-2 compliance.
Key specs include IP55 protection per IEC 60529, sheet steel construction with Orange Peel surface in RAL 7035, and a pre assembled enclosure with blind door. Net dimensions are 410 mm wide by 2311.5 mm high by 440 mm deep, with a reference height of 2200 mm and reference width 400 mm. The cabinet weighs about 69.6 kg and aligns with RoHS and REACH declarations for regulatory compliance.
Yes. The IP55 enclosure provides dust and water ingress protection suitable for most factory floors, and the cabinet uses robust sheet steel to withstand typical industrial wear. The design is optimized for machine builders and panel integrators needing reliable, pre assembled storage for control electronics, with compliance to IEC 62208 and IEC 61439-1-2 standards.
The cabinet includes a CE Declaration of Conformity and is documented to IEC 62208 and IEC 61439-1-2, supporting NEMA equivalents in listed configurations. It carries RoHS information and REACH declarations with dates (20250108), and is categorized under ETIM EC000261, ensuring compatibility in ETIM 8/9 systems and eClass 27180101 classifications.
Adopting the ES2246K reduces on-site installation time due to its pre assembled configuration, limiting wiring errors and commissioning delays. Long-term benefits include higher panel reliability with IP55 protection and durable steel construction, lower maintenance calls, and simplified supplier audits thanks to RoHS/REACH compliance and standard IEC certifications.
