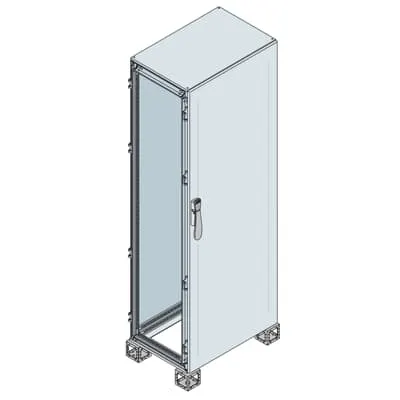

ABB ES2248K Cabinet Enclosure - Blind Door IP55
Part Number: ES2248K
Quick Summary
ABB ES2248K cabinet enclosure is a preassembled control housing designed for industrial automation applications. This integrated solution reduces on-site assembly, protecting sensitive equipment from dust, moisture, and impact. In practice, field teams often struggle with inconsistent protection and longer commissioning times when panels must be built from scratch. The enclosure complies with IEC 62208 and IEC 61439-1/2, offers IP55 protection, and carries CE conformity, ensuring safe operation in demanding environments. With RoHS and REACH compliance, it supports sustainable, regional deployments. For system integrators and OEMs, the ABB ES2248K translates to faster installation, easier maintenance, and lower total cost of ownership.
Product Information
Extended Description
ES2248K ABB: Cabinet with blind door 2200x400x800mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
410 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
440 mm
Product Net Weight
74.0630 kg
Reference Depth/Length
800 mm
Reference Height
2200 mm
Reference Width
400 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
78.790 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Preassembled cabinet with single door and blind door construction. Business Impact: reduces on-site labor, minimizes wiring errors, and accelerates commissioning. Application: panel upgrades in manufacturing lines and OEM control cabinets. Feature: Sheet steel construction with orange peel surface finish in RAL 7035. Business Impact: durable protection against impact and corrosion, consistent appearance, easier coating repair. Application: harsh factory floors and regulated environments requiring durable enclosures. Feature: IP55 protection and CE, RoHS, REACH compliance. Business Impact: reliable ingress protection and regulatory alignment for global deployments. Application: European installations and international projects with stringent safety standards. Feature: Dimensions and mounting compatibility (2200 mm height, 400 mm width, 800 mm depth; 410 mm net width). Business Impact: room for modular drives and control equipment, straightforward rack mounting. Application: space-constrained control panels and scalable automation architectures. Feature: Preassembled mounting and installation instructions (1STM604121R0006). Business Impact: reduces risk of misassembly, shortens up-front planning, and improves serviceability. Application: turnkey projects, system integrators, and service-oriented OEMs. Feature: Documentation and standards alignment (ETIM EC000261, IEC 62208, IEC 61439-1-2; NEMA 1,3R,12). Business Impact: clear compliance path and ecosystem compatibility, streamlining procurement. Application: cross-market installations and regulatory audits.
Get a Quick Quote for a ABB ES2248K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2248K?
Enquire Now
FAQs
The ES2248K is a preassembled cabinet designed to accommodate typical control panels and DIN rail components with a 400 mm width and 800 mm depth footprint. Its mounting provisions and internal clearances support common servo drives, PLCs, and I/O modules, reducing integration time and avoiding bespoke enclosures. This compatibility is beneficial for OEMs and system integrators seeking repeatable layouts across projects.
Key protections include IP55 ingress protection, protecting internal components from dust and water jets. The cabinet is constructed from sheet steel with an orange peel surface finish in RAL 7035, offering durable, corrosion-resistant housing. The single-door, blind-door configuration provides easy access for maintenance while maintaining sturdy exterior dimensions for demanding environments.
Yes. The enclosure complies with IEC 62208 and IEC 61439-1/2, supports CE conformity, and is RoHS/REACH compliant, ensuring regulatory suitability across many sectors. Its IP55 protection and robust steel construction make it appropriate for manufacturing floors, process plants, and packaging lines where dust, moisture, and mechanical impact are concerns.
The ES2248K carries CE conformity and is listed under ETIM 8 EC000261 for cabinet classification. It aligns with IEC 62208 and IEC 61439-1/2, and is compatible with NEMA 1, 3R, and 12 environments. RoHS and REACH declarations are included, with REACH information and dates indicating ongoing regulatory compliance.
The preassembled design reduces on-site labor and commissioning time, lowering installation risk and accelerating time-to-operation. By standardizing dimensions and material specs, it minimizes field modification costs and simplifies spare parts planning. Over multiple projects, these efficiencies translate to lower total cost of ownership and faster project payback for integrators and OEMs.
