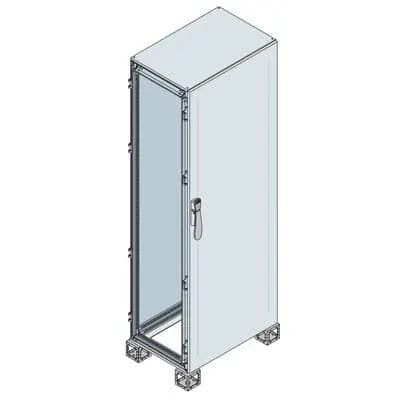

ABB ES2260K Cabinet - IP55
Part Number: ES2260K
Quick Summary
ABB ES2260K is a control and automation cabinet for protecting electrical gear in industrial control panels. Engineers often face downtime and field wiring delays when installing untested enclosures; pre-assembled cabinets like this one help streamline installation and reduce on-site errors. This cabinet offers IP55 protection and CE conformity, with IEC 61439-1-2 compatibility to meet global safety and performance standards. Finished in orange-peel RAL 7035 and built from sheet steel, it delivers durable, low-maintenance operation in harsh environments. Choosing this enclosure reduces downtime, supports faster commissioning, and simplifies compliance for automation and electrical teams. RoHS and REACH declarations help mitigate regulatory risk across manufacturing facilities.
Product Information
Extended Description
ES2260K ABB: Cabinet with blind door 2200x600x1000mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
96.7730 kg
Reference Depth/Length
1000 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
102.950 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled enclosure with single door. Business impact: Reduces field assembly time and installation errors, accelerating start-up of new automation lines. Application: Ideal for machine builders and panel builders requiring quick, reliable control cabinets. Feature: Sheet steel construction with orange-peel finish in RAL 7035. Business impact: Enhances durability and corrosion resistance in demanding environments, lowering maintenance costs. Application: Suitable for manufacturing plants with exposure to dust and humidity. Feature: Pre assembled mounting type and compact footprint. Business impact: Simplifies site wiring, enables plug-and-play integration with standard 600 mm equipment and DIN rails. Application: Fast deployment on data centers, process lines, and robotics cells. Feature: IP55 protection and CE with RoHS/REACH compliance. Business impact: Ensures regulatory compliance while protecting sensitive electronics from ingress, reducing risk and liability. Application: Suitable for indoor and semi-outdoor automation installations in accordance with IEC standards. Feature: Dimensions and weight optimized for ease of handling. Business impact: Facilitates safe transport and installation, reducing crane or forklift time. Application: Fits standard installation bays in panel shops and on equipment racks. Finally, ETIM and eClass classifications support seamless product categorization in procurement systems, improving searchability and supplier integration.
Get a Quick Quote for a ABB ES2260K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2260K?
Enquire Now
FAQs
ABB ES2260K cabinets are pre-assembled, designed for rapid on-site installation with a single-door access. Consider the 2200x600x1000 mm external footprint, IP55 protection, and 610 mm internal width versus the reference 600 mm. Ensure mounting rails and hardware are compatible with standard DIN rails and equipment fits within the 96–100 kg weight range for safe handling.
Key specs include IP55 degree of protection, sheet steel construction, orange-peel surface finish in RAL 7035, a single door, pre-assembled mounting, and dimensions referenced at 2200 mm height and 600 mm width with a 1000 mm depth. It supports IEC 62208 and IEC 61439-1-2, with RoHS and REACH compliance for regulatory assurance.
Yes. The ES2260K is designed to meet IEC 61439-1-2 requirements and is backed by CE conformity, RoHS/REACH declarations, and ETIM/EClass classifications. This ensures safety, reliability, and interoperability in global electrical control applications and simplifies procurement through standardized specifications.
The cabinet is pre-assembled for quick installation and is compatible with standard 600 mm width equipment. It provides robust access through a single door and a 610 mm net width, enabling straightforward mounting of DIN rail components and control gear while maintaining compliance with enclosure standards.
Resources include the IS2 Enclosures Technical Catalogue 2024, installation instructions (1STM604121R0006), and CE Declaration of Conformity. Regular checks should verify IP55 seals, door operation, and RoHS/REACH declarations. Access to the datasheet and data-rich documentation supports long-term maintenance, spare parts planning, and regulatory audits.
