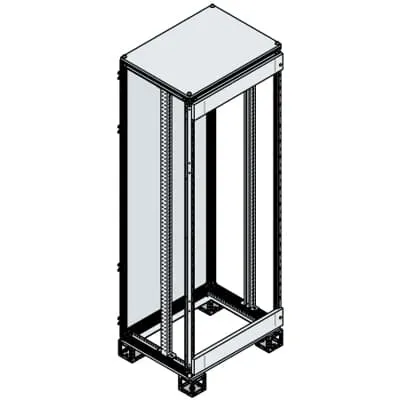

ABB ES2260MFK Cabinet - IP55 Enclosure IEC 62208
Part Number: ES2260MFK
Quick Summary
ABB ES2260MFK is a rugged cabinet enclosure designed for control and automation panels in industrial plants. Many projects struggle with complex wiring, long lead times, and costly on-site assembly, which can extend downtime. CE conformity, IEC 62208 and IEC 61439-1-2 compliance, and IP55 protection help ensure safe operation in dusty and wet environments. By delivering a pre-assembled enclosure with compartments, it reduces installation risk while supporting standard mounting layouts and compartment configurations that speed integration with existing control architectures. This translates to faster commissioning, better uptime, and a clearer path to scalable automation for machine builders and system integrators.
Product Information
Extended Description
ES2260MFK ABB: Cabinets for compartments 2200x1000x600mm (HxDxW) with Cable container W=-mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
82.8610 kg
Reference Depth/Length
1000 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
88.150 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled configuration with compartments → Business impact: Accelerates deployment and reduces on-site wiring complexity, lowering labor and risk during panel build and installation. Application: Ideal for multi-function control cabinets in packaging, process, and machine-automation lines. Feature: Durable sheet steel construction with orange peel surface in RAL 7035 → Business impact: Improved wear resistance and visibility on the plant floor, lowering maintenance costs and replacement cycles. Application: Harsh factory environments where corrosion resistance and easy inspection are critical. Feature: IP55 protection rating → Business impact: Enhanced ingress protection for dust and water exposure, protecting sensitive controls and extending cabinet life. Application: Environments with dust, mist, or wash-down requirements. Feature: Pre-assembled mounting and single door design → Business impact: Simple installation and predictable service access, reducing commissioning time and technician hours. Application: New builds and retrofits needing rapid panel integration. Feature: Compliance and standards alignment (IEC 62208, IEC 61439-1-2, CE) → Business impact: Simplified regulatory adherence and safer procurement decisions, lowering compliance risk. Application: Industries with strict safety, quality, and documentation requirements. Feature: Dimensions aligned with standard configurations (2200 mm high, 1000 mm deep, 600 mm wide) and ETIM classification EC000261 → Business impact: Seamless compatibility with common rack systems and data-driven product categorization for procurement. Application: System integrators seeking predictable footprint and supply chain traceability.
Get a Quick Quote for a ABB ES2260MFK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2260MFK?
Enquire Now
FAQs
Install the ES2260MFK as a pre-assembled enclosure to minimize on-site wiring. Align the cabinet with the 600 mm width and 2200 mm height, attach mounting rails if required, and connect conduits through standard entries. The single-door design provides easy access for commissioning, and the compartment configuration supports modular component placement for scalable panel builds.
Key specs include a 2200 mm height, 1000 mm depth, 600 mm width configuration; IP55 protection; sheet steel construction with Orange Peel surface finish in RAL 7035; a single door; pre-assembled mounting; product type 5B5B10B180; weight around 83 kg; RoHS and REACH compliant with CE conformity.
Yes. The ES2260MFK is designed to meet IEC 62208 and IEC 61439-1-2 requirements and carries a CE declaration of conformity. This ensures safety, performance, and interoperability in industrial automation environments, making it suitable for regulated applications.
Industries including process automation, packaging lines, machine-building, and general electrical control panels benefit from the ES2260MFK. Its modular compartment design, IP55 protection, and pre-assembled configuration support fast deployment, robust operation on the factory floor, and scalable automation layouts.
The pre-assembled design minimizes commissioning time and field wiring, reducing labor costs. Durable sheet steel, IP55 protection, and standard finishes lower maintenance needs, while CE, RoHS, and REACH compliance mitigate regulatory risk. Over time, faster serviceability and longer cabinet life translate to lower total cost of ownership.
