ABB ES2260VK Enclosure Cabinet - IP55 IEC 62208
Part Number: ES2260VK
Quick Summary
ABB ES2260VK enclosure protects control and automation boards for industrial panels. Engineers often face space constraints, moisture risks, and lengthy installation in busy facilities. This model aligns with IEC 62208 and IEC 61439-1-2, offers IP55 protection, and CE conformity, with RoHS/REACH compliance. The pre-assembled design reduces on-site work, while durable surface finishing supports long-term reliability. With these features, you gain faster commissioning and predictable procurement for panel builders and automation integrators.
Product Information
Extended Description

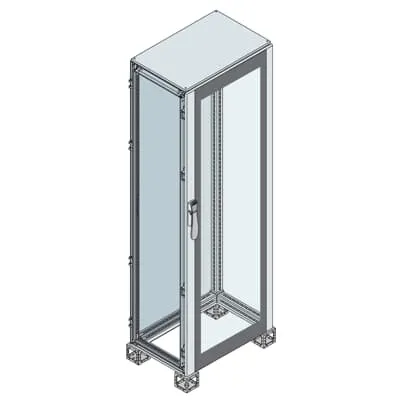

ES2260VK ABB: Cabinet with glazed door 2200x600x1000mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with glazed door
Mounting Type
Pre assembled
Product Type
5B5B10B120
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
97.1020 kg
Reference Depth/Length
1000 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
103.300 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: Pre assembled cabinet with glazed door reduces on-site assembly time, lowering commissioning costs and minimizing installation risk in tight control rooms, ideal for machine builders and process automation projects. Feature → Business Impact → Application: Sheet steel construction with Orange Peel, RAL 7035 finish delivers durable corrosion resistance and a professional appearance across harsh factory environments, enhancing safety and compliance when housing sensitive electronics. Feature → Business Impact → Application: IP55 protection and IEC 62208, IEC 61439-1-2 compliance provide robust environmental and regulatory assurance for indoor industrial uses, reducing rework and warranty issues. Feature → Business Impact → Application: Pre defined dimensions (600x2200x1000 reference) and 610x2311.5x640 mm net body enable seamless integration with existing panels and standardized mounting footprints. Feature → Business Impact → Application: RoHS and REACH declarations simplify procurement and environmental reporting, supporting sustainability and vendor compliance. Feature → Business Impact → Application: Transparent door options and glazed visibility facilitate quick inspection during maintenance without cabinet removal, improving uptime and service efficiency.
Get a Quick Quote for a ABB ES2260VK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2260VK?
Enquire Now
FAQs
The ES2260VK uses a pre assembled mounting approach with dimensions aligned to reference width 600 mm, height 2200 mm, and depth 1000 mm. Its 610 mm net width and 2311.5 mm net height support standard panel cutouts while the glazed single-door design reduces on-site assembly. Always verify mounting rails and door clearances before retrofitting into an existing rack or frame.
Key specs include an IP55 degree of protection, sheet steel construction, and a glazed door. It conforms to IEC 62208 and IEC 61439-1-2, with CE declaration and RoHS/REACH compliance. Dimensions reference 600x2200x1000 mm, with a net body of 610x2311.5x640 mm and a weight near 97.1 kg, ensuring robust indoor operation.
The enclosure is rated IP55, which protects against dust ingress and low-pressure water jets, making it suitable for indoor and semi exposed indoor applications in controlled environments. For harsh outdoor exposure, consider additional environmental protection or climate-control options to maintain internal electronics integrity.
It carries CE conformity with RoHS and REACH declarations, is listed under ETIM EC000261 for enclosures, and aligns with IEC 62208 and IEC 61439-1-2 standards. WEEE considerations indicate the product is not in scope. A Declaration of Conformity IS2 is provided, along with IS2 Enclosures Technical Catalogue 2024 references.
Pre assembled, glazed-door cabinets reduce on-site labor and commissioning time, lowering installed costs. Durable sheet steel with IP55 protection minimizes maintenance interruptions. The RoHS/REACH compliance supports long-term sustainability reporting, while CE certification simplifies procurement across regions, delivering faster project timelines and predictable long-term performance.
