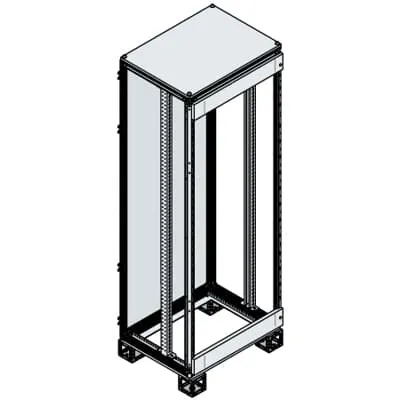

ABB ES2264MFK Cabinet for electrical configurations - IP55
Part Number: ES2264MFK
Quick Summary
ABB ES2264MFK Cabinet for electrical configurations provides a ready-to-deploy enclosure solution for control and automation panels in industrial environments. A common challenge is delivering modular, maintenance-friendly spaces that endure harsh factory conditions while staying within budget. This cabinet carries CE conformity, IP55 protection, and RoHS/REACH compliance to support global deployments. With pre-assembled construction and an orange-peel finish in RAL 7035, it accelerates installation and reduces total cost of ownership for system integrators. Designed for IS2 enclosure guidance and ETIM classifications, it aligns with modern industrial standards and streamlines supplier coordination and parts sourcing.
Product Information
Extended Description
ES2264MFK ABB: Cabinets for compartments 2200x400x600mm (HxDxW) with Cable container W=-mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
70.6880 kg
Reference Depth/Length
400 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
75.200 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Pre-assembled cabinet with compartments enables rapid start-up and lowers on-site labor, reducing commissioning time for machine builders and panel shops. The configuration type and mounting type are purpose-built for straightforward integration, supporting faster changeovers across lines and better consistency in panel quality. The durable sheet steel enclosure with Orange Peel surface in RAL 7035 improves resistance to factory grime and minimizes repaint cycles, lowering maintenance costs. The IP55 protection rating delivers reliable dust and water ingress protection in typical plant environments, expanding applicability from light to moderately demanding applications. With RoHS and REACH declarations, manufacturers can meet regulatory requirements without extensive testing. The product’s dimensions and weight are optimized for machine footprints, enabling compact layouts and easier shipping. Compliance with IEC 62208 and IEC 61439-1-2, along with NEMA equivalents, ensures alignment with global standards and simplifies cross-border deployments. ETIM EC000261 and eClass V11.1 classifications improve category accuracy in procurement systems, reducing sourcing time and errors. The pre-assembled design, combined with a pre-configured door setup, speeds installation and minimizes field wiring complexity, delivering tangible cost-of-ownership benefits for OEMs and system integrators.
Get a Quick Quote for a ABB ES2264MFK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2264MFK?
Enquire Now
FAQs
This cabinet is pre-assembled for configuration with compartments, designed to slot into standard control panel layouts. With a width of 610 mm, height around 2311.5 mm, and depth 640 mm, it fits many machine enclosures while preserving internal cable containment. Mounting is pre-assembled, simplifying alignment, reducing field wiring, and supporting rapid integration with ABB or third-party I/O modules.
The ES2264MFK complies with CE declarations of conformity and RoHS/REACH requirements, ensuring global regulatory readiness. It references IEC 62208 and IEC 61439-1-2 for enclosure performance, and supports NEMA 1, 3R, and 12 configurations. ETIM EC000261 and eClass V11.1 classifications improve data accuracy in procurement systems, while WEEE considerations are noted in the product metadata.
Yes. The cabinet’s IP55 protection, metal sheet enclosure, and pre-assembled compartments are ideal for packaging lines and process control applications. The orange-peel finish in RAL 7035 offers durable exterior protection, and the robust construction reduces environmental vulnerability. Its configuration flexibility supports modular control architectures, enabling scalable line automation and future upgrades.
The pre-assembled configuration with compartments minimizes on-site assembly and wiring, dramatically shortening commissioning cycles. By eliminating many field fabrication steps, system integrators can accelerate project timelines, improve first-pass electrical integrity, and reduce labor costs during installation and initial test runs.
Net weight is approximately 70.6880 kg, with a package gross weight around 75.200 kg per unit. Packaging accounts for safe transport of the steel enclosure and fittings. This weight profile informs forklift planning, site access, and shipping logistics for international or multi-site deployments.
