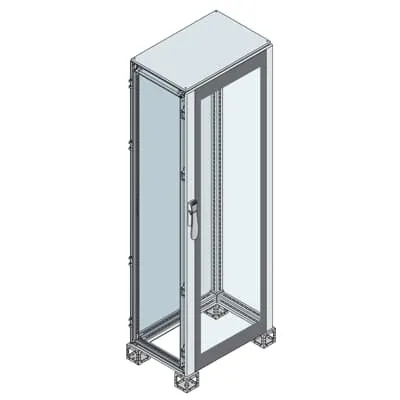

ABB ES2264VK Cabinet with Glazed Door - IEC 62208 IP55
Part Number: ES2264VK
Quick Summary
ES2264VK is an ABB control and automation cabinet with glazed door, ideal for factory automation enclosures. Sourcing a reliable, pre-assembled enclosure reduces field wiring errors, installation time, and on-site punch-list carryover. It complies with IEC 62208 and IEC 61439-1-2 and carries IP55 protection, CE declarations, and RoHS/REACH compliance for safer, long-life operation. Designed for quick integration into control panels, economies come from a robust, standardized footprint that supports PLCs, drives, and I/O modules while meeting ETIM classifications. With a transparent door option and durable sheet steel construction, it stands up to demanding plant environments. Its 600 x 2200 x 400 mm footprint is designed for flexible mounting and scalable expansion in modern automation rooms.
Product Information
Extended Description
ES2264VK ABB: Cabinet with glazed door 2200x600x400mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with glazed door
Mounting Type
Pre assembled
Product Type
5B5B10B120
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
80.3790 kg
Reference Depth/Length
400 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
85.510 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled cabinet with glazed door. Business Impact: Reduces on-site wiring, testing time, and field assembly errors, enabling faster project delivery. Application: Ideal for factory automation panels in assembly lines where quick deployment matters. Feature: IP55 protection. Business Impact: Maintains internal electronics’ reliability against dust and water jets, lowering maintenance and downtime. Application: Harsh factory floors and machine rooms needing dependable enclosure protection. Feature: Durable material with Orange Peel finish (RAL 7035). Business Impact: Long-lasting exterior withstands wear and corrosion, reducing repaint cycles. Application: Outdoor or semi-exposed plant environments requiring robust aesthetics and visibility. Feature: Transparent door surface. Business Impact: Easy visual inspection of components without opening, accelerating maintenance checks. Application: PLCs and drives in control rooms where rapid status assessment is beneficial. Feature: RoHS and REACH compliance plus CE declaration. Business Impact: Simplifies regulatory audits and procurement, reducing compliance risk and waste handling. Application: Global manufacturing environments with strict environmental controls. Feature: Standardized footprint and ETIM classification. Business Impact: Streamlines sourcing and interoperability with other equipment, lowering total cost of ownership. Application: Panel builders integrating with PLCs, drives, and I/O modules. The content reflects practical industry context and addresses common objections such as installation speed, regulatory compliance, and long-term maintenance.
Get a Quick Quote for a ABB ES2264VK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2264VK?
Enquire Now
FAQs
For installation, ensure a stable, level mounting surface compatible with a 600x2200x400 mm footprint. Use the pre-assembled cabinet to minimize on-site wiring and wiring harness routing, and follow the IS2 installation guide 1STM604121R0006 to maintain IP55 integrity and CE compliance during mounting.
Yes. The enclosure is designed to meet IEC 62208 and IEC 61439-1-2 requirements, providing a robust, code-compliant solution for electrical panels and control cabinets, along with CE declarations and regulatory documentation to simplify audits.
Industries including factory automation, packaging, and process control benefit from the ES2264VK due to its IP55 protection, pre-assembled configuration, and compatibility with PLCs, drives, and I/O modules in standardized footprints for scalable automation upgrades.
The cabinet carries RoHS and REACH declarations, CE conformity, and WEEE considerations. It also adheres to ETIM EC000261 for enclosure classification, and IP55 protection ensures reliability in dusty or damp environments.
Pre-assembled design reduces installation labor and commissioning time, lowering upfront costs. The durable sheet steel body with RAL 7035 finish minimizes repaint cycles, while RoHS/REACH compliance reduces end-of-life risk. Maintenance is simplified by a single-door access and transparent door option for quick inspections.
