ABB ES2265K Cabinet - IP55 Enclosure for Control Cabinets
Part Number: ES2265K
Quick Summary
ABB ES2265K Cabinet is a pre-assembled enclosure for housing control and automation components in industrial facilities. Customers often struggle with integration, wiring complexity, and regulatory compliance in harsh environments. It complies with CE conformity, IP55 protection under IEC 60529, and enclosure standards IEC 62208/61439-1-2, supporting safe, compliant installations. This pre-assembled cabinet minimizes field labor, reduces wiring errors, and aligns with IS2 enclosure guidelines for faster project delivery.
Product Information
Extended Description

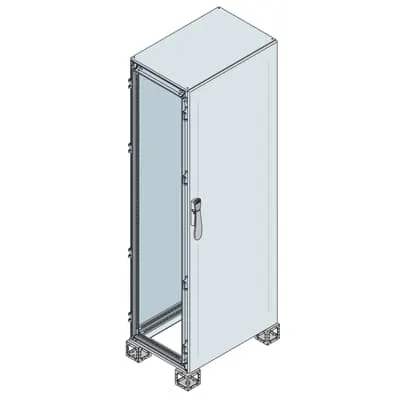

ES2265K ABB: Cabinet with blind door 2200x600x500mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
84.3460 kg
Reference Depth/Length
500 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
89.730 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled cabinet with blind door. Business Impact: Significantly reduces on-site assembly time and wiring errors, accelerating project schedules and lowering labor costs. Application: Ideal for control panels and machine enclosures on production lines where quick deployment matters. Feature: IP55 protection with sheet steel construction. Business Impact: Delivers robust environmental protection against dust and water ingress, minimizing unplanned downtime. Application: Suitable for harsh factory floor conditions and semi-exposed installations. Feature: Clear, standard-compliant finishing. Business Impact: Ensures regulatory readiness and simplifies visual identification, maintenance, and color-coded planning. Application: European facilities with color standards (RAL 7035) and IS2 catalog alignment. Feature: CE, RoHS, and REACH declarations. Business Impact: Eases supplier qualification, audits, and sustainability reporting, reducing procurement risk. Application: Regulated sectors requiring traceable material compliance. Feature: Optimized dimensions and mounting compatibility. Business Impact: Facilitates space planning and chassis integration with existing equipment, reducing rework. Application: Modular automation systems with fixed footprint constraints and standard enclosure sizes.
Get a Quick Quote for a ABB ES2265K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2265K?
Enquire Now
FAQs
For the ES2265K, begin with a site survey to confirm the footprint of 610 mm width, 2311.5 mm height, and 640 mm depth. Mount on a level base, connect power and field wiring via pre-routed channels, and secure the blind door. Use the provided manuals (1STM604121R0006) to ensure correct terminal layout and cable management, reducing commissioning time and risk.
Yes. The ES2265K is designed to meet IEC 62208 and IEC 61439-1-2 enclosure standards, ensuring structural integrity and safe enclosure of electrical equipment. It carries a CE declaration and RoHS/REACH information, streamlining regulatory compliance. Choosing this cabinet supports a standards-aligned approach across control panels and automation cabinets, simplifying procurement and installation.
IP55 protection means the cabinet offers dust protection and limited water ingress under normal conditions, which is crucial for factory floors and damp environments. This reduces component failure risk, extends service life, and lowers maintenance downtime. When combined with IS2 guidance, it ensures consistent, high-performance protection across installations.
RoHS information confirms restriction-free materials, and the REACH declaration indicates no substances above 0.1 mass percent. This simplifies supplier qualification and audits for regulated industries, supporting sustainability goals and procurement approvals. While it does not replace other standards, it strengthens conformity documentation and reduces compliance-related delays.
The pre-assembled ES2265K cabinet typically reduces on-site wiring, harness assembly, and finishing time, leading to lower labor costs and faster commissioning. Its IEC-aligned design, IP55 protection, and material compliance mitigate rework risks and maintenance surprises. Over the lifecycle, customers often see shorter project cycles, improved uptime, and a lower total cost of ownership.
