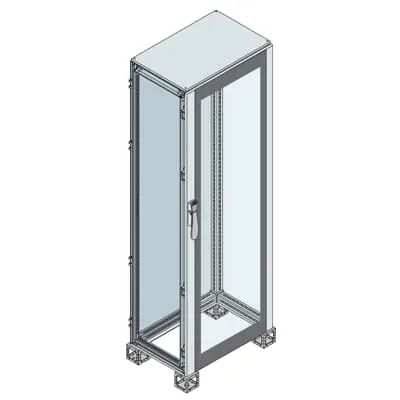

ABB ES2265VK Heavy-Duty Cabinet with Glazed Door - IP55
Part Number: ES2265VK
Quick Summary
ABB ES2265VK provides a rugged enclosure for control panels in industrial automation. It helps protect electronics from dust, moisture, and impact, reducing downtime and maintenance costs in demanding plants. With CE conformity, RoHS compliance, REACH information, and IEC 62208/61439-1-2 alignment, the cabinet meets core industry standards. This pre-assembled enclosure with a glazed door helps streamline installation and wiring visibility, delivering a reliable, field-ready solution for automated cells and production lines. For buyers, the ABB ES2265VK also supports scalable control architectures and compliant sourcing, combining durability with straightforward procurement of an IP55-rated enclosure.
Product Information
Extended Description
ES2265VK ABB: Cabinet with glazed door 2200x600x500mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with glazed door
Mounting Type
Pre assembled
Product Type
5B5B10B120
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
83.4250 kg
Reference Depth/Length
500 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
88.750 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled cabinet with glazed door. Business Impact: Accelerates on-site installation and reduces integration risk for automation panels. Application: Control cabinets on production lines where fast deployment and clear access are critical. The enclosure’s mounting is pre-assembled, simplifying retrofits and new builds alike. Feature: Sheet steel construction with Orange Peel, RAL 7035 finish. Business Impact: Long-term durability in harsh environments with easy maintenance and consistent color matching across facilities. Application: Factory floors, process lines, and electrical rooms requiring robust aesthetics and weather resistance. Feature: IP55 protection. Business Impact: Superior ingress protection against dust and water jets, lowering commissioning failures and downtime. Application: Enclosures exposed to dust, moisture, or wash-down areas in manufacturing. Feature: RoHS and REACH compliance. Business Impact: Regulatory assurance and simpler supplier qualification for OEMs and integrators. Application: Procurement and compliance workflows for capital equipment. Feature: Compliance with IEC 62208 and IEC 61439 standards; CE Declaration of Conformity. Business Impact: Lifecycle reliability and regulatory alignment, reducing risk during audits and approvals. Application: Panel shop and end-user environments requiring certified enclosures. Feature: Dimensions and weight data (600x2200x500 external, 610 mm net width, 83.4 kg net weight). Business Impact: Precise space planning and predictable logistics, aiding installation planning and shipping cost estimation. Application: Line-side control housings and modular automation architectures. All these features together provide a robust, compliant, and install-ready solution suitable for modern industrial environments, with proven compatibility for ETIM classifications and IS2 catalogue references.
Get a Quick Quote for a ABB ES2265VK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2265VK?
Enquire Now
FAQs
The ES2265VK is a pre-assembled enclosure with a glazed door, designed to integrate with standard automation panels. External dimensions are 600x2200x500 mm, with a net width of 610 mm and a weight around 83.4 kg, aiding accurate space planning and mounting in existing rack or enclosure layouts.
Key specs include IP55 protection per IEC 60529, RoHS information with 20250108 RoHS date, REACH declaration, and CE conformity. The cabinet uses sheet steel with orange peel finish (RAL 7035) and a single glazed door, supporting stable operation in dusty, humid, and workshop environments.
Yes. The ES2265VK is ideal for factory automation cabinets, electrical panels, and control housings on production lines. Its pre-assembled configuration reduces installation time, while IP55 protection and standard-compliance ensure dependable operation across multiple line layouts and OEM integrations.
The cabinet aligns with IEC 62208 and IEC 61439-1-2, carries a CE Declaration of Conformity, and is RoHS/REACH compliant. ETIM classifications and IS2 enclosures references support cataloging and procurement, while reduced WEEE impact is indicated by Product Not in WEEE Scope.
Pre-assembled construction shortens installation and reduces field labor costs, while IP55 protection lowers maintenance interruptions from dust and moisture. Clear material data and compliance simplify supplier qualification, contributing to lower project risk and improved uptime in long-running manufacturing environments.
