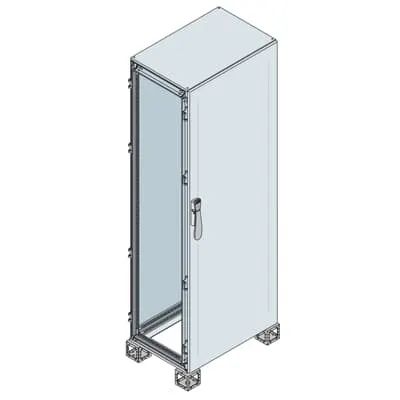

ABB ES2266K Cabinet with blind door - IP55 Enclosure
Part Number: ES2266K
Quick Summary
ABB ES2266K cabinet with blind door provides robust control enclosure for industrial automation applications. Users seeking reliable, scalable protection for electrical and electronic equipment will appreciate a pre-assembled solution that reduces on-site assembly time and potential error. Key certifications such as IP55 protection, CE conformity, and IEC 62208/61439-1-2 compliance ensure suitability for harsh factory environments and regulatory alignment. Designed for rugged factory floors, it ships pre-assembled with a single door, RAL 7035 orange peel finish, and a durable sheet-steel body. This enclosure supports easy installation, optimized cable routing, and long-term maintenance efficiency, delivering measurable total cost of ownership reductions for OEMs and integrators.
Product Information
Extended Description
ES2266K ABB: Cabinet with blind door 2200x600x600mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
87.110 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
92.670 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: The ES2266K is a pre-assembled cabinet with blind door, which reduces field labor and installation error, accelerating commissioning and improving first-time quality on new lines. This translates to lower downtime and quicker throughput gains on automated packaging or assembly cells. Feature → Business Impact → Application: IP55-rated enclosure protects sensitive control electronics from dust and moisture, lowering failure rates in harsh factory floors and outdoor-adjacent cells, ideal for plastics, metalworking, and material handling environments. Feature → Business Impact → Application: Sheet steel construction with an orange-peel finish in RAL 7035 delivers durability, easy maintenance, and consistent appearance across multi-line installations, supporting long-term reliability and simplified spare-part planning. Feature → Business Impact → Application: The 610 mm width, 2311.5 mm height, and 640 mm depth provide a footprint that aligns with standard plant layouts while enabling neat cable management and modular expansion for future automation tasks. Feature → Business Impact → Application: RoHS and REACH declarations ensure regulatory compliance, reducing supply-chain risk and facilitating audits in industries with strict material controls, such as food processing and pharmaceutical packaging. Feature → Business Impact → Application: Compliance with IEC 62208, IEC 61439-1-2, and ETIM/NEMA standards ensures interoperability with typical control panels, drivers, and motor starters, easing procurement and integration for OEMs and system integrators. Feature → Business Impact → Application: Single-door access and pre-assembled mounting simplify maintenance routines, enabling quick inspections, cleanouts, and component replacements in busy OEM lines. Feature → Business Impact → Application: The accompanying CE declaration and IS2 enclosure data catalog support rapid documentation, improving traceability and compliance during customer audits and regulatory reviews.
Get a Quick Quote for a ABB ES2266K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2266K?
Enquire Now
FAQs
The ES2266K is a pre-assembled cabinet with a single blind door designed for straightforward integration. With dimensions around 610 mm wide and 2200 mm high, it fits standard footprints and simplifies mounting on factory floors. Installation benefits include reduced on-site labor, fewer field connections, and quicker commissioning, which minimizes startup downtime in OEM and system-integrator projects.
Key specs include a 2200 mm reference height and 600 mm reference width/depth, IP55 protection, sheet steel construction, RAL 7035 orange-peel finish, and a DOOR single. It is pre-assembled for fast deployment, weighs about 87.110 kg net, and ships with a 1-piece package at around 92.670 kg gross. Standards include IEC 62208 and IEC 61439-1-2.
Yes. The enclosure has an IP55 rating, offering protection against limited dust ingress and water jets from any direction. This makes it suitable for many harsh factory settings, including manufacturing floors and outdoor-adjacent control zones, ensuring reliable operation of mounted control electronics and drives.
The cabinet carries CE conformity with a Declaration of Conformity IS2 and aligns with RoHS and REACH declarations. It references ETIM 8/9 EC000261, eClass V11.1 27180101, and standards IEC 62208, IEC 61439-1-2, plus NEMA 1, 3R, 12, ensuring broad regulatory and interoperability coverage for global installations.
Maintenance and installation resources include the 1STM604121R0006 manuals, the IS2 Enclosures Technical Catalogue 2024, CE declarations, and the Data Sheet. These materials help with commissioning checklists, mechanical assembly guidance, and long-term service planning, supporting faster repairs and consistent maintenance across multiple sites.
