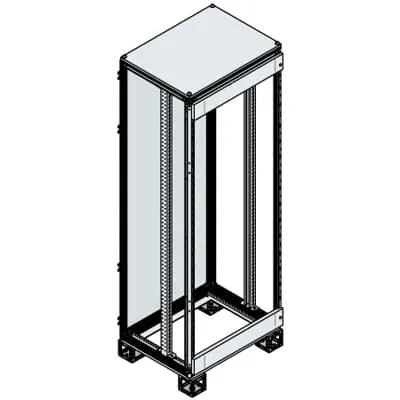

ABB ES2266MFK Cabinet for compartments - IP55
Part Number: ES2266MFK
Quick Summary
The ABB ES2266MFK cabinet for compartments houses control and automation panels in configurable industrial enclosures. Engineers often struggle with space optimization and maintenance access in tight control-room environments. It meets IEC 62208 and IEC 61439-1-2 standards, IP55 protection, and CE conformity for global installation. With its pre-assembled design and durable RAL 7035 finish, you gain faster deployment, reduced on-site wiring complexity, and lower total cost of ownership while maintaining strict compliance.
Product Information
Extended Description
ES2266MFK ABB: Cabinets for compartments 2200x600x600mm (HxDxW) with Cable container W=-mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
76.7790 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
81.680 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Configuration Type 6. Cabinet for configuration with compartments → Business Impact: enables modular, scalable layouts that shorten project timelines and reduce engineering effort. Application: multi-section control cabinets in automated lines. Feature: Enclosure Type and Mounting Type are Pre assembled → Business Impact: accelerates delivery and installation, minimizes field assembly risk, and lowers commissioning costs. Application: turnkey installations in process automation. Feature: Material is Sheet Steel Metal with Orange Peel, RAL 7035 → Business Impact: robust mechanical protection and durable aesthetics, simplifying maintenance and wear resistance. Application: harsh factory floors and serviceable enclosures. Feature: Surface and Door Finishing are Orange Peel, Opaque → Business Impact: improved corrosion resistance and easy cleaning, supporting long service life. Application: high-dust environments. Feature: Degree of Protection IP55 and IEC/NEMA compatibility → Business Impact: reliable ingress protection for dust and water, reducing downtime and maintenance intervals. Application: outdoor-adjacent or wash-down areas. Feature: RoHS/REACH compliance and WEEE categorization → Business Impact: regulatory assurance and simpler supplier audits. Application: global manufacturing operations. Feature: Dimensions and Net Weight (610 mm width, 2311.5 mm height, 640 mm depth, 76.779 kg net) → Business Impact: predictable space planning and transport logistics. Application: plant floor installations and retrofit projects. Feature: ETIM 8/9 (EC000261), eClass V11.1 (27180101) classifications → Business Impact: smooth procurement and accurate data in digital marketplaces. Application: OEM and system integrator procurement workflows. Feature: Includes reference to IS2 Enclosures Technical Catalogue 2024 and CE declaration → Business Impact: consolidated standards and documented compliance. Application: compliance-driven projects.
Get a Quick Quote for a ABB ES2266MFK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2266MFK?
Enquire Now
FAQs
This cabinet is pre-assembled for quick deployment. Mount it on a prepared base, ensure level installation, connect internal bus and cable entries, and reference the included manual 1STM604121R0006. The design supports compartmental configurations, reducing on-site assembly time and wiring errors while meeting IEC 61439-1-2 and IP55 requirements.
The cabinet features a product net width of 610 mm, product net height of 2311.5 mm, and product net depth of 640 mm, with a net weight of 76.779 kg (package level 1 gross weight 81.68 kg). Reference dimensions are 600 mm width/depth with a 2200 mm height, enabling accurate space planning.
Yes. It carries RoHS information and a RoHS date of 20250108, along with REACH declaration and data indicating no substances above 0.1 mass percentage. This simplifies supplier declarations and regulatory audits for global manufacturing operations.
The enclosure is made from sheet steel with an orange peel surface finish in RAL 7035 and opaque door finishing. This combination offers robust mechanical protection, corrosion resistance, durable aesthetics, and easier cleaning—important for ongoing maintenance in dusty or humid environments.
The cabinet aligns with ETIM 8/9 EC000261 (Enclosure/cabinet empty) and eClass V11.1 27180101, and meets IEC 62208 and IEC 61439-1-2, along with CE marking and IS2 enclosure documentation. These classifications and standards facilitate procurement, interoperability, and regulatory compliance across industries.
