ABB ES2268K Other/Miscellaneous - IP55
Part Number: ES2268K
Quick Summary
ABB ES2268K cabinet provides a rugged control and automation enclosure for industrial equipment. Installation delays and reliability concerns are common when enclosures fail to meet IP ratings or regulatory requirements. This cabinet aligns with IEC 62208 and IEC 61439-1-2, offers IP55 protection, and carries CE conformity for global use. With RoHS and REACH compliance, a robust sheet steel build, and clear ETIM classification, it supports faster commissioning and lower lifecycle costs. Designed for OEMs and system integrators, it delivers reliable automation enclosure solutions with predictable lead times and easier sourcing for scalable projects.
Product Information
Extended Description

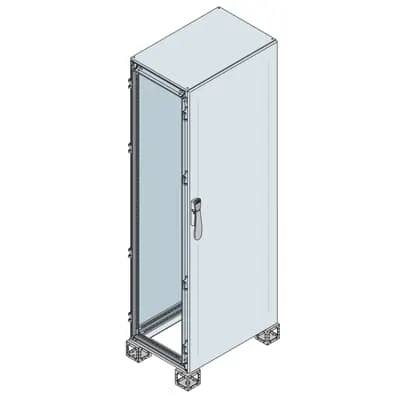

ES2268K ABB: Cabinet with blind door 2200x600x800mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
640 mm
Product Net Weight
92.6280 kg
Reference Depth/Length
800 mm
Reference Height
2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
98.540 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
ABB ES2268K is a pre-assembled cabinet with a single blind door, reducing on-site assembly time and installation risk. This configuration accelerates commissioning for control panels in machine lines and process automation, while ensuring consistent build quality. The package ships as a ready-to-install enclosure, simplifying installation sequencing and reducing field wiring errors during startup. Constructed from sheet steel with an orange peel finish (RAL 7035), the enclosure delivers durable protection and surface durability in demanding environments. The IP55 rating guards against dust and water ingress, reducing field maintenance and extending the life of internal components in manufacturing floors. External dimensions are 2200 x 600 x 800 mm (HxWxD) with a pre-assembled mounting profile for quick panel assembly. The cabinet accepts standard internal components and offers a net width of 610 mm, height 2311.5 mm, and depth 640 mm, enabling predictable layout in control rooms and on factory floors. Certified to IEC 62208 and IEC 61439-1-2, with CE Declaration of Conformity, RoHS and REACH compliance, ES2268K aligns with global enclosure standards. It supports ETIM classifications EC000261 and provides WEEE category as not in scope, helping procurement teams meet regulatory obligations while simplifying parts sourcing. Pre-assembled configuration and compatibility with IS2 Enclosures Technical Catalogue 2024 mean faster commissioning, reduced risk of field modification, and lower total cost of ownership for OEMs and system integrators. Its heavy-duty build, reliable hinges, and finish support long service intervals, delivering cost savings through improved uptime.
Get a Quick Quote for a ABB ES2268K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2268K?
Enquire Now
FAQs
The ES2268K is a pre-assembled cabinet with a single blind door, designed for straightforward on-site installation. Plan for the external footprint of 2200 x 600 x 800 mm and a net width of 610 mm to accommodate internal components. It’s mounted pre-assembled, reducing field wiring errors and commissioning time while ensuring a consistent build quality.
The enclosure carries IP55 protection, shielding internal equipment from dust and water ingress in typical factory settings. Its sheet steel construction with an orange peel finish provides durability, while CE, RoHS, and REACH compliance mitigate regulatory risk. This combination supports reliable operation, minimized maintenance, and longer service intervals in demanding environments.
Yes. The cabinet adheres to ETIM classifications EC000261 and is compatible with IS2 Enclosures Technical Catalogue 2024. Its product type 5B5B10B110 and single door design align with common enclosure configurations, making sourcing straightforward and ensuring compatibility with a wide range of control and automation equipment.
The ES2268K meets IEC 62208 and IEC 61439-1-2 standards, carries CE conformity, and adheres to RoHS and REACH requirements. It also references WEEE categorization and ETIM classifications, ensuring regulatory compliance, safe disposal, and standardized cataloging. These certifications simplify procurement, compliance reporting, and integration into regulatory-driven projects.
Investing in the ES2268K yields faster commissioning due to pre-assembled construction, reduced field modification needs, and lower risk of wiring errors. The IP55 protection and durable finish minimize downtime and maintenance costs, while standard dimensions and documentation streamline procurement and integration, delivering a lower total cost of ownership over the enclosure’s lifecycle.
