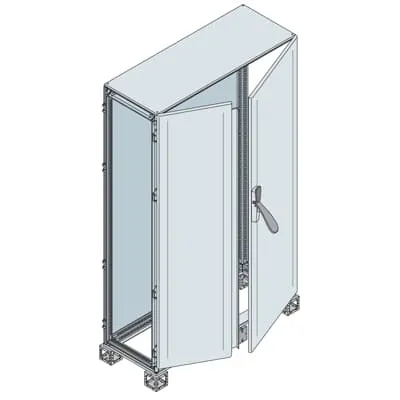

ABB ES2275BK Other/Miscellaneous Cabinet - IP55
Part Number: ES2275BK
Quick Summary
The ABB ES2275BK is a robust enclosure cabinet designed for industrial control and automation applications. It provides secure housing for electrical panels with double-door access and an overlapping closure to improve seal integrity. This design helps prevent downtime caused by dust, moisture, and in-service corrosion in challenging factory environments. The cabinet complies with key standards including IEC 62208 and IEC 61439-1/2, carries CE declarations, and offers IP55 protection for reliable operation. With a durable orange-peel finish in RAL 7035 and a pre-assembled structure, it delivers faster deployment and predictable total cost of ownership for system integrators and maintenance teams.
Product Information
Extended Description
ES2275BK ABB: Cabinets with blind overlapping closure 2200x1600x500mm (HxWxD)
Configuration Type
2. Cabinet with double door and overlapping closure
Enclosure Type
Pre assembled - cabinet with double blind door and overlapping closure
Mounting Type
Pre assembled
Product Type
5B5B10B140
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1640 mm
Product Net Weight
166.8690 kg
Reference Depth/Length
500 mm
Reference Height
2200 mm
Reference Width
1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
177.520 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: The cabinet features double doors with overlapping closure, delivering a tighter seal and enhanced ingress protection, reducing the risk of panel contamination and unplanned shutdowns in harsh environments. This translates to higher equipment availability in manufacturing lines and process plants. Application: ideal for control and automation cabinets in food & beverage, packaging, and process industries where reliable enclosure integrity is essential. Feature → Business Impact → Application: Pre-assembled mounting and delivery as a ready-to-install unit cut on-site labor and install time, accelerating project timelines and lowering field labor costs. Application: suitable for panel builders and system integrators seeking rapid deployment in new lines or upgrades. Feature → Business Impact → Application: Orange Peel surface in RAL 7035 provides durable aesthetics and corrosion resistance, reducing repaint cycles and maintenance overhead while meeting corporate branding. Application: suitable for indoor and semi-outdoor factory environments requiring a professional finish. Feature → Business Impact → Application: IP55 protection, EN compliance, and RoHS/REACH adherence minimize regulatory risk and warranty claims while supporting long service life in dust- and water-exposed settings. Application: industrial automation cabinets across OEM, OEM supplier, and end-user facilities. Feature → Business Impact → Application: Clear documentation and ETIM classification support parts planning and maintenance, improving spare-parts accuracy and lifecycle planning for service teams.
Get a Quick Quote for a ABB ES2275BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2275BK?
Enquire Now
FAQs
Plan for a pre-assembled unit weighing approximately 166.9 kg, with dimensions around 1610 mm width, 2311.5 mm height, and 1640 mm depth. Ensure adequate lifting equipment, proper on-site clearance, and a level foundation. Use the overlapping double-door closure to maximize seal integrity and reduce ingress, and verify mounting compatibility with existing frames and spaces to streamline installation.
The ES2275BK meets IEC 62208 and IEC 61439-1/2 standards for enclosures, supports NEMA 1, 3R, and 12 configurations, and carries IP55 protection. It also aligns with CE declarations, RoHS and REACH requirements, and ETIM EC000261 classification, ensuring regulatory compliance and interoperability with modern industrial equipment.
Yes. The enclosure is designed as a pre-assembled cabinet with a robust steel shell and standard mounting footprints. Its ETIM EC000261 classification helps with part compatibility, and it’s documented in the IS2 Enclosures Technical Catalogue 2024, facilitating straightforward integration with common control panels, terminal blocks, and HVAC accessories used in automation projects.
The durable sheet steel construction with RAL 7035 finish reduces repainting and corrosion-related maintenance, extending service life. Pre-assembly shortens installation time and labor costs. Compliance with RoHS/REACH minimizes regulatory risk, while documented standards simplify future upgrades and spare-parts planning, delivering lower total cost of ownership over the cabinet’s lifetime.
Designed for dust and water ingress protection at IP55, the enclosure supports reliable operation in demanding environments. The orange-peel coating resists wear, while the double-door, overlapping closure reduces exposure to contaminants. It is suitable for indoor and semi-outdoor factory settings and aligns with IEC/NEMA standards to maintain performance under continuous use.
