ABB ES2276K Enclosure - IP55 Cabinet
Part Number: ES2276K
Quick Summary
ABB ES2276K is an enclosure cabinet designed for robust control and automation applications. This pre-assembled cabinet with double doors and an intermediate upright helps protect sensitive electronics in demanding industrial environments. A common pain point is delivering secure, regulatory-compliant enclosures that install quickly without field modifications. The ES2276K meets CE conformity, RoHS and REACH requirements while aligning with IEC 62208 and IEC 61439-1-2 standards, reducing risk and ensuring long-term compliance. By choosing a ready-to-install enclosure, engineering teams can cut commissioning time, improve wiring consistency, and minimize on-site rework. The rugged sheet steel construction, RAL 7035 finish, and IP55 protection support reliable operation on factory floors and process lines, making this enclosure a practical backbone for modern automation systems. Additional ISO-like references and IS2 Enclosures Catalogue 2024 compatibility add further business value.
Product Information
Extended Description

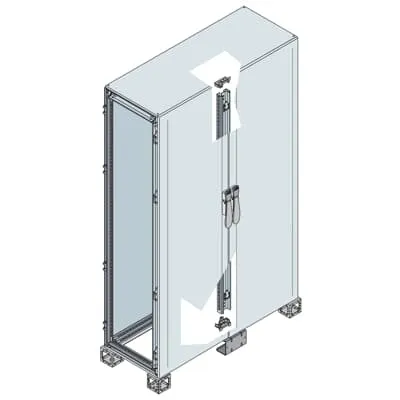

ES2276K ABB: Cabinet with double blind door 2200x1600x600mm (HxWxD)
Configuration Type
3. Cabinet with double door and intermediate upright
Enclosure Type
Pre assembled - cabinet with double blind door and intermediate upright
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1640 mm
Product Net Weight
175.0940 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
186.270 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre assembled cabinet with double blind doors and an intermediate upright. Business Impact: Minimizes field assembly, reduces installation errors, and speeds panel hardening. Application: Ideal for control panels and automation cabinets in manufacturing lines. Feature: IP55 protection with IS2 enclosure reference. Business Impact: Keeps dust, water ingress, and incidental washdown at bay, extending component life and reducing service calls. Application: Suitable for machine rooms, packaging lines, and process plants. Feature: Durable sheet steel with orange peel finish in RAL 7035; opaque door surface. Business Impact: Delivers resilience and a professional finish while lowering repaint and corrosion-related costs. Application: Factory floors and industrial environments. Feature: Precise dimensions and mounting footprint: 1610 mm net width, 2311.5 mm net height, 1640 mm net depth; reference 1600x2200x600. Business Impact: Facilitates accurate layout planning, cable routing, and scalable installations. Application: New builds and retrofits. Feature: Compliance and standards: RoHS, REACH, CE declaration; IEC 62208, IEC 61439-1-2; NEMA 1,3R,12. Business Impact: Ensures regulatory alignment and cross-market compatibility, supporting QA and procurement. Application: Global manufacturing and regulated projects.
Get a Quick Quote for a ABB ES2276K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2276K?
Enquire Now
FAQs
Yes. The ES2276K is a pre-assembled enclosure with a double-door configuration and an intermediate upright, designed to integrate with typical control panel layouts. It supports standard mounting practices for automation cabinets, aligns with ETIM EC000261 classifications, and is suitable for installation alongside common DIN rail equipment within its 1610 mm net width footprint. This reduces in-field assembly time and wiring errors while preserving scalable expansion options.
Key protections include IP55 rating per IEC 60529, protecting against dust and water ingress in industrial environments. It complies with CE declarations, RoHS and REACH regulations, and references IEC 62208 and IEC 61439-1-2 standards for enclosures. It also aligns with NEMA 1, 3R, 12 configurations, ensuring broad compatibility across global automation installations and regulatory contexts.
The ES2276K is well-suited for machine control panels, automation cabinets, and electrical enclosures in manufacturing, packaging lines, and process industries. Its IP55 protection and durable RAL 7035 finish tolerate factory floor conditions, while the pre-assembled design speeds deployment in systems requiring reliable, code-compliant electrical housings with predictable dimensions for space planning.
RoHS information and a REACH declaration accompany the ES2276K, with a REACH date of 20250108. The product is documented as RoHS compliant and REACH information states no substances exceeding 0.1 mass percentage. WEEE classification notes the product is not within WEEE scope, supporting streamlined procurement and environmental reporting alongside CE conformity.
The enclosure arrives pre-assembled, reducing on-site labor and commissioning time while ensuring consistent build quality. Its double-door design, intermediate upright, and standardized dimensions simplify wiring, component replacement, and future upgrades. With CE, RoHS, REACH compliance and IS2 catalogue compatibility, projects experience lower risk, faster QA sign-offs, and a clearer path to scalable automation across multiple production lines.
