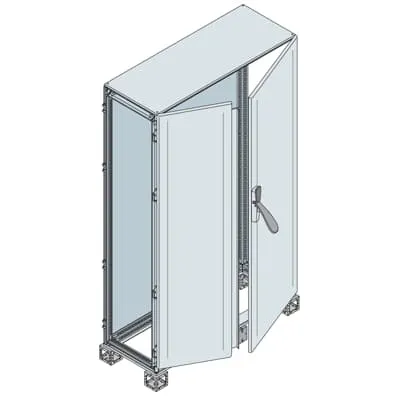

ABB ES2279BK Cabinet - IP55 Enclosure
Part Number: ES2279BK
Quick Summary
ABB ES2279BK cabinet is a pre-assembled enclosure for control and automation in industrial facilities. This design minimizes downtime by protecting sensitive electronics from dust, moisture, and accidental contact. IP55 protection per IEC 60529, CE conformity (IS2), and RoHS/REACH compliance ensure reliable operation in harsh environments. With dimensions of 1610 mm width, 2311.5 mm height, and 1640 mm depth, plus a durable Orange Peel finish in RAL 7035, it supports scalable automation. This combination delivers faster installation, easier maintenance, and robust protection for control cabinets in factories, machines, and assembly lines. By standardizing with pre-assembled mounting, technicians can deploy identical enclosures across multiple lines, reducing commissioning time.
Product Information
Extended Description
ES2279BK ABB: Cabinets with blind overlapping closure 2200x1600x800mm (HxWxD)
Configuration Type
2. Cabinet with double door and overlapping closure
Enclosure Type
Pre assembled - cabinet with double blind door and overlapping closure
Mounting Type
Pre assembled
Product Type
5B5B10B140
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1640 mm
Product Net Weight
181.2130 kg
Reference Depth/Length
800 mm
Reference Height
2200 mm
Reference Width
1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
192.780 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Double door with overlapping closure provides enhanced security and superior seal integrity. Business Impact → Reduces dust and moisture ingress, protecting critical electronics and lowering maintenance costs. Application → Ideal for machine control panels on manufacturing lines requiring reliable access and protective enclosure. Feature → Pre assembled enclosure with double blind door facilitates rapid deployment and consistent fit. Business Impact → Speeds installation, reduces on-site fabrication, and minimizes field wiring errors. Application → Suited for multi-line automation plants seeking standardization. Feature → Sheet steel construction with Orange Peel finish in RAL 7035 delivers durability and easy maintenance. Business Impact → Long-term corrosion resistance and standardized appearance across facilities. Application → Suitable for harsh indoor and outdoor industrial environments. Feature → IP55 rating provides dust and water jet protection. Business Impact → Meets IEC 60529 requirements, reduces enclosure-related failures and service interruptions. Application → Outdoor-enabled or damp indoor settings in manufacturing or process industries. Feature → Large dimensions and weight (1610 mm W x 2311.5 mm H x 1640 mm D; ~181 kg) support high-capacity control networking. Business Impact → Stable, vibration-resistant housing for complex automation equipment; easier mounting of devices and cable trays. Application → Central control cabinets for PLCs, drives, and I/O assemblies. Feature → Regulatory compliance and documentation including IEC standards, CE IS2, RoHS/REACH, and WEEE status. Business Impact → Streamlines procurement, audits, and global deployments with clear traceability. Application → Projects across multiple sites requiring universal standards and conformity.
Get a Quick Quote for a ABB ES2279BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2279BK?
Enquire Now
FAQs
The ES2279BK is a pre-assembled enclosure with mounting designed for quick field deployment. It ships as a single unit (package level 1: 1 piece) and uses a double blind door with overlapping closure. Reference dimensions are 1600 mm width by 2200 mm height by 800 mm depth, with actual product nets at 1610 mm x 2311.5 mm x 1640 mm and a packed weight around 192.78 kg. For installation, refer to the manual 1STM604121R0006 and ensure compatible mating accessories and mounting heights in line with IEC standards.
IP55 protection means the enclosure is protected against dust ingress sufficient to prevent interference with operation and against water jets from any direction. In industrial settings, this reduces the risk of electronics failure due to dust and moisture, extending component life, lowering unplanned downtime, and simplifying maintenance routines for control cabinets located near manufacturing lines or in outdoor-adjacent areas.
The cabinet aligns with IEC 62208 and IEC 61439-1-2 conventions and furnishes NEMA 1, 3R, 12 suitability. It carries a CE Declaration of Conformity (IS2), RoHS information with a 20250108 RoHS date, and a REACH declaration with related date. The WEEE category indicates the product’s scope is not within WEEE for disposal. This certification suite supports global deployment and regulatory compliance.
Yes, the ES2279BK is suitable for outdoor or damp indoor settings thanks to its IP55 protection and rugged sheet steel construction. The orange peel finish in RAL 7035 offers UV and weather resilience while maintaining a professional appearance. When used outdoors, ensure appropriate mounting and drainage considerations are met and follow installation guidelines in the provided manual.
The cabinet’s pre-assembled design reduces on-site assembly time, lowers field-wabrication risks, and accelerates commissioning across multiple lines. Its robust IP55 protection minimizes unplanned maintenance by safeguarding critical control electronics. The durable surface finish and standard color simplify cleaning and interchangeability of components, contributing to lower lifecycle costs and faster project payback in automation deployments.
