ABB ES2279K Control and Automation Cabinet - IP55
Part Number: ES2279K
Quick Summary
ABB ES2279K is a control and automation cabinet designed for robust panel mounting in demanding industrial automation applications. It addresses frequent pain points such as equipment downtime, weather exposure, and non-compliance with safety and environmental standards across global operations. It carries CE conformity and IP55 protection, aligned with IEC 62208/61439-1-2 and NEMA 1, 3R, 12 requirements for safe, compliant installations. Engineered for quick field service, the pre-assembled design reduces commissioning time and minimizes on-site risk. It also supports scalable control architectures and global RoHS/REACH obligations, helping OEMs meet evolving regulations. This combination delivers predictable uptime, safer maintenance cycles, and a faster route to production readiness.
Product Information
Extended Description

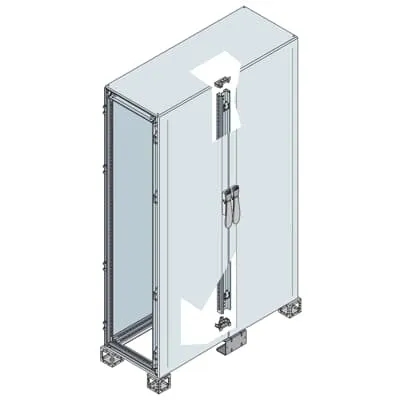

ES2279K ABB: Cabinet with double blind door 2200x1600x800mm (HxWxD)
Configuration Type
3. Cabinet with double door and intermediate upright
Enclosure Type
Pre assembled - cabinet with double blind door and intermediate upright
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1610 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
1640 mm
Product Net Weight
181.2130 kg
Reference Depth/Length
800 mm
Reference Height
2200 mm
Reference Width
1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
192.780 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled cabinet with double doors and an intermediate upright simplifies on-site assembly. Business impact: shorter commissioning times and reduced risk of misalignment in complex control panel layouts. Application: fits centralized automation skids and machine-control panels where quick start-up is critical. Feature: Orange peel surface finishing in RAL 7035 with opaque door surfaces provides a durable, easy-to-clean enclosure. Business impact: resistant to wear in demanding environments, maintaining appearance and compliance for long service life. Application: ideal for process and machine control rooms where both protection and aesthetics matter. Feature: IP55 protection ensures reliable operation in dusty or washdown environments. Business impact: minimizes ingress risk, reduces unplanned downtime, and lowers maintenance costs. Application: suitable for production floors, outdoor gateways, and equipment housings exposed to dust and moisture. Feature: Sheet steel enclosure offers robust mechanical strength and recyclability. Business impact: improves service life, reduces replacement frequency, and supports sustainable design practices. Application: rugged industrial automation panels in harsh factory environments. Feature: RoHS and REACH compliance with 20250108 dates ensures regulatory alignment across markets. Business impact: simplifies cross-border procurement and mitigates supply-chain risk. Application: global OEMs and integrators designing compliant control systems. Feature: ETIM EC000261 classification, IEC standards and NEMA compatibility facilitate procurement and integration. Business impact: streamlines catalog search, data accuracy, and system interoperability. Application: enterprise-grade control cabinets deployed in diverse industrial sectors.
Get a Quick Quote for a ABB ES2279K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2279K?
Enquire Now
FAQs
Yes. The ES2279K is a pre-assembled cabinet with a 1600 mm reference width, 2200 mm reference height, and 800 mm depth, featuring a double-door configuration and intermediate upright. It is ready for quick mounting and compatible with common control panel layouts, reducing field assembly time and alignment risk.
The enclosure provides IP55 protection, constructed from sheet steel with an orange-peel finish in RAL 7035 and opaque doors. This combination delivers solid mechanical strength, dust and water ingress resistance, and durable aesthetics suitable for rugged industrial environments.
Ideal for process automation, machine building, packaging lines, and general industrial control panels. The cabinet’s pre-assembled design accelerates commissioning for projects with tight timelines, while its robust IP55 enclosure supports washdown and dusty environments typical of manufacturing floors.
The ES2279K carries CE conformity, RoHS information (RoHS date 20250108) and REACH declarations, and complies with IEC 62208, IEC 61439-1-2, as well as NEMA 1, 3R, 12. These certifications support safe design, regulatory compliance, and global procurement.
Pre-assembled construction reduces on-site labor and commissioning time, while the IP55 rating and durable finish minimize maintenance and downtime. With RoHS/REACH compliance and long service life, the cabinet lowers total cost of ownership and accelerates time-to-production for automation projects.
