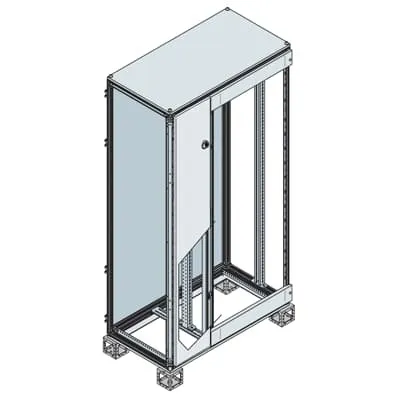

ABB ES2281MF2K Enclosure - IP55 certified cabinet
Part Number: ES2281MF2K
Quick Summary
ABB ES2281MF2K Enclosure is a pre-assembled cabinet for configuring control panels in industrial automation. For systems integrators, lengthy assembly, wiring errors, and on-site modifications slow projects and inflate costs. It carries CE conformity, RoHS and REACH declarations with IEC 62208/61439 and IP55 protection, aligning with industry standards. Built from sheet steel with a durable Orange Peel finish (RAL 7035), it simplifies procurement and installation for machine builders and panel shops, delivering dependable protection and faster time-to-operation. The rugged design accommodates configuration with compartments, enabling clear separation of power and control circuits while facilitating serviceability. Tailored to IS2 Enclosures catalog guidance, it supports scalable architectures for evolving automation needs.
Product Information
Extended Description
ES2281MF2K ABB: Encl.with compartment 2200x1000x800 VC W=200-7035
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
810 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
840 mm
Product Net Weight
127.6520 kg
Reference Depth/Length
1000 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
135.800 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre assembled cabinet with compartments enables rapid deployment of control panels while preserving modularity. Business Impact: Reduces field wiring and assembly time, accelerates commissioning, and lowers on-site labor costs. Application: Ideal for machine builders and systems integrators delivering configurable automation cabinets with compartmentalized sections. Feature: IP55 protection guards against dust and water ingress on factory floors, improving uptime and reliability. Business Impact: Extends component life, minimizes maintenance outages, and supports outdoor or semi-enclosed installations. Application: Suitable for manufacturing lines and packaging equipment where environmental exposure is a concern. Feature: Sheet steel construction with Orange Peel finish in RAL 7035 provides durability and easy color coordination. Business Impact: Enhances corrosion resistance, reduces repainting needs, and improves fault isolation through clear visual standards. Application: Enclosures in high-traffic production areas needing long-term aesthetic and functional stability. Feature: Pre assembled mounting and single door design streamline installation and serviceability. Business Impact: Cuts installation time, simplifies access for maintenance, and reduces field modification requirements. Application: Ready-to-run control cabinets for rapid integration into new or upgrading automation lines. Feature: Compliance and standards alignment including IEC 62208/61439, NEMA 1, 3R, 12, CE, RoHS, and REACH. Business Impact: Eases regulatory approvals, lowers risk of non-conformance, and supports global deployment. Application: Suitable for regulated industries and multinational projects seeking verified standards. Feature: Heavy-duty dimensions and weight stability (810 mm width, 2311.5 mm height, 840 mm depth; 127.6520 kg). Business Impact: Provides robust mechanical protection and internal space for equipment, reducing vibration-induced wear. Application: Large-scale control assemblies and power electronics installations needing solid enclosure integrity.
Get a Quick Quote for a ABB ES2281MF2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2281MF2K?
Enquire Now
FAQs
ABB ES2281MF2K is a pre-assembled cabinet designed for configuration with compartments, reducing field assembly time. It supports standard enclosure practices and aligns with IEC 62208/61439, NEMA 1, 3R, 12, and CE requirements. The unit’s mounting is pre-assembled, simplifying installation and enabling quick integration with existing control panels and equipment.
Key specs include IP55 ingress protection, sheet steel construction with Orange Peel finish in RAL 7035, product net width 810 mm, height 2311.5 mm, depth 840 mm, and weight 127.6520 kg. The enclosure is CE declared, RoHS and REACH compliant, and designed for configurations with compartments and a single door, suitable for reliable industrial use.
Yes. The cabinet’s IP55 protection and rugged sheet steel build are well suited for manufacturing floors and packaging lines where dust, moisture, and environmental exposure are factors. Its compartmentalized configuration supports separating power and control circuits, improving safety and serviceability in busy automation settings.
The enclosure carries a CE Declaration of Conformity and is RoHS and REACH compliant. It adheres to IEC 62208 and IEC 61439-1/2, and supports NEMA 1, 3R, 12 ratings. WEEE categorization notes the product as not in WEEE scope, and ETIM/eClass classifications align with industry standards for enclosure products.
The pre-assembled design reduces installation time and field wiring, lowering initial labor costs and downtime. Its IP55 protection minimizes maintenance interrupts due to environmental ingress, while the compartmentalized layout simplifies upgrades and serviceability, delivering faster time-to-operation and predictable lifecycle costs for automation projects.
