ABB ES2284FV2K Control and Automation Cabinet - IP55
Part Number: ES2284FV2K
Quick Summary
ABB ES2284FV2K is a control and automation cabinet designed for robust electrical enclosures in industrial automation. Many facilities struggle with space-efficient, pre-assembled enclosures that simplify wiring and reduce downtime. This cabinet complies with IEC 62208, IEC 61439-1-2, and IP55 protection, ensuring safe, reliable operation in harsh environments. Featuring a pre-assembled design with RAL 7035 finish and cable container, it accelerates installation and reduces project risk for OEMs and system integrators. RoHS and REACH declarations accompany the enclosure, aligning with modern sustainability and regulatory standards. It aligns with ETIM classifications and eClass 27180101 for streamlined cataloging and cross-vendor compatibility. Designed for modular expansion.
Product Information
Extended Description

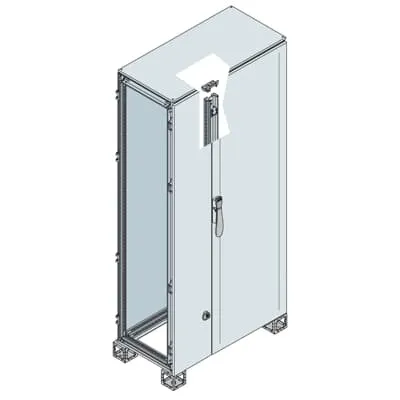

ES2284FV2K ABB: Cabinet with blind door 2200x800x400mm (HxWxD) W=200mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - blind door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
810 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
840 mm
Product Net Weight
110.5060 kg
Reference Depth/Length
400 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
117.560 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Cabinet with blind door and cable container provides a ready-to-wire enclosure. Business Impact: Accelerates installation, reduces on-site labor, and lowers project risk by eliminating custom cable routing. Application: Perfect for ABB or third-party automation installations where space is at a premium and quick commissioning matters. Feature: Pre-assembled mounting and double door design. Business Impact: Enables faster deployment, simpler maintenance access, and predictable installation schedules. Application: Suitable for automation panels in manufacturing lines, packaging equipment, and process control. Feature: Sheet steel construction with Orange Peel finish, RAL 7035. Business Impact: Durable, corrosion resistant and easy to clean, reducing repainting and downtime. Application: Indoor factory environments and rugged industrial spaces. Feature: IP55 protection and compliance with IEC 62208, IEC 61439-1-2; NEMA equivalents. Business Impact: Ensures safety and regulatory compliance across regions, aiding procurement and risk mitigation. Application: Projects requiring environmental protection and standardization across suppliers. Feature: RoHS, REACH declarations with reference dates; ETIM EC000261; eClass 27180101; WEEE classification. Business Impact: Streamlines purchasing, cataloging, and sustainability reporting. Application: Regulated industries seeking traceability and standard classification in components.
Get a Quick Quote for a ABB ES2284FV2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2284FV2K?
Enquire Now
FAQs
ABB ES2284FV2K is shipped as a pre-assembled enclosure with a blind door and integrated cable container, so on-site wiring is minimized. Consider crane or pallet handling due to its 110 kg net weight and 117 kg gross packaging. Ensure adequate ventilation and access through the double doors; refer to the 1STM604121R0006 manual for mounting and wiring guidelines.
Yes, the ES2284FV2K aligns with IEC 62208 and IEC 61439-1-2 requirements, providing a robust frame for industrial control assemblies. It also carries CE conformity and NEMA equivalents (1, 3R, 12) as referenced in ETIM EC000261 and eClass 27180101 mappings. This supports predictable performance, safer electrical installations, and easier cross-vendor procurement.
Reference dimensions are 800 mm width, 2200 mm height, and 400 mm depth (W x H x D). Net dimensions run approximately 810 mm by 2311.5 mm by 840 mm, with a net weight of 110.5060 kg and a package gross weight of 117.560 kg. For planning, use the reference size while accounting for framing tolerances in rugged environments.
Yes. The configuration is described as a cabinet with a cable container, and the unit is delivered pre-assembled for immediate wiring. This design supports organized cable routing, reduces wiring errors, and simplifies panel installation. Verify interior space against your equipment and follow the IS2 manual and mounting guidelines when integrating field devices.
Procurement is facilitated by IEC 62208 and IEC 61439-1-2 compatibility, IP55 protection, and CE conformity. The enclosure is mapped to ETIM EC000261 and eClass 27180101, with RoHS/REACH declarations and WEEE status noted. These classifications ease cataloging, regulatory compliance, and cross-supplier sourcing for regulated industries.
