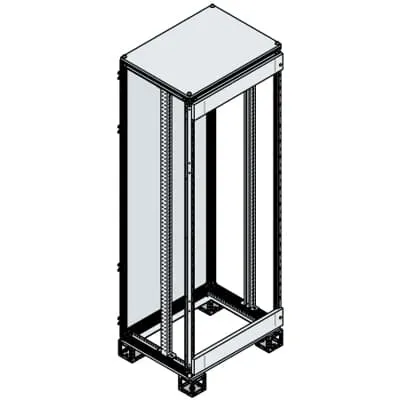

ABB ES2284MFK Cabinet for configuration - IP55
Part Number: ES2284MFK
Quick Summary
ES2284MFK cabinet for configuration with compartments enables scalable control enclosures for industrial automation. Engineers struggle with modularity and space planning in electrical rooms; this pre-assembled cabinet simplifies layout and reduces commissioning time. It meets IEC 62208 and IEC 61439-1-2, provides IP55 protection, and carries CE conformity for compliant machine enclosures. The design blends rugged sheet steel with precise tolerances, supporting future expansion without redesign. By aligning RoHS and REACH commitments, it helps you meet regulatory deadlines while limiting lifecycle costs. For manufacturers, the result is faster system integration, lower wiring errors, and a safer, maintenance-friendly cabinet that scales across multiple lines.
Product Information
Extended Description
ES2284MFK ABB: Cabinets for compartments 2200x400x800mm (HxDxW) with Cable container W=-mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
810 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
840 mm
Product Net Weight
80.2670 kg
Reference Depth/Length
400 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
85.390 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: Pre-assembled cabinet with compartments reduces installation time and ensures repeatable mounting, delivering faster project turnover and lower on-site labor costs in panel builds for packaging and manufacturing lines. Raw sheet-steel IP55 enclosure enhances durability in harsh factory environments, minimizing maintenance shutdowns and safeguarding investments in automation. Orange-peel surface in RAL 7035 delivers long-term cosmetic resilience and easier cleaning, supporting cleanroom-adjacent applications and regulatory audits. Compatibility with IS2 Enclosures Catalogue 2024 and ETIM 8/9 standards streamlines procurement, reduces engineering changes, and accelerates approvals for machine builders. Overall weight and dimensions enable straightforward integration with existing frames while preserving cabinet space for future I/O expansion.
Get a Quick Quote for a ABB ES2284MFK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2284MFK?
Enquire Now
FAQs
The ES2284MFK comes pre-assembled for rapid deployment, with standard mounting options that fit common frame rails. Its finite dimensions (810 mm W x 2311.5 mm H x 840 mm D) and IS2 enclosure compatibility simplify upgrades and expansions in mid-size automation projects without reworking existing enclosures.
Key specs include IP55 protection, sheet-steel construction, single door configuration, and a modular compartment layout. The enclosure supports IEC 62208 and IEC 61439-1-2 compliance, RoHS/REACH declarations, and CE conformity, ensuring reliability in industrial environments.
Yes. The cabinet's compartments and pre-assembled mounting, combined with IP55 protection and rigid construction, make it ideal for packaging lines and machine builders needing modular, scalable control enclosures with fast commissioning.
The enclosure complies with IEC 62208 and IEC 61439-1-2, carries RoHS/REACH information with dates, IP55 protection, and CE declaration. ETIM EC000261 classification and eClass V11.1 support accurate cataloging and procurement.
Pre-assembled compartments reduce installation time and wiring errors, lowering labor costs. Durable IP55-rated steel construction minimizes maintenance shutdowns, while RoHS/REACH compliance supports regulatory audits, delivering a favorable total cost of ownership over the cabinet’s lifecycle.
