ABB ES2285K Enclosure Cabinet - IP55, CE Compliance
Part Number: ES2285K
Quick Summary
ABB ES2285K is a rugged enclosure cabinet designed for industrial control and automation applications on factory floors and in harsh environments. The preassembled cabinet with a blind door minimizes on-site assembly challenges, accelerating commissioning and reducing project risk. With IP55 protection and CE, RoHS, and REACH certifications, this enclosure meets essential reliability and regulatory requirements for regulated manufacturing and automation projects. The combination of a durable sheet steel frame and a color-fast orange peel finish in RAL 7035 delivers long-term visibility and serviceability, while the preassembled configuration supports fast installation and consistent performance across multi-site deployments. This enables system integrators and OEMs to shorten lead times and improve total cost of ownership while maintaining compliance.
Product Information
Extended Description

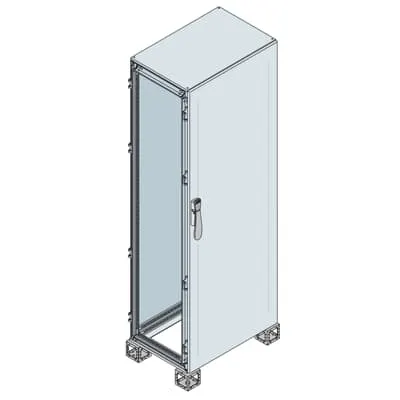

ES2285K ABB: Cabinet with blind door 2200x800x500mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
810 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
840 mm
Product Net Weight
101.3410 kg
Reference Depth/Length
500 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
107.810 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: The ES2285K is a preassembled cabinet with a blind door, which reduces on-site assembly time and commissioning costs, enabling faster project delivery and consistent quality across sites. This translates into lower labor costs and shorter time-to-production for automation panels and control cabinets in manufacturing lines. Feature → Business Impact → Application: IP55 protection provides robust dust and water ingress resistance in factory environments, lowering maintenance cycles and downtime for critical electrical assemblies used in process automation and material handling. Feature → Business Impact → Application: Sheet steel construction with an orange peel RAL 7035 finish offers durable protection against industrial wear while maintaining high visibility and ease of inspection, supporting long service life in harsh environments and simplifying color-coding in multi-line installations. Feature → Business Impact → Application: RoHS and REACH compliance, with documented dates, reduces regulatory risk for global deployments and ensures supply chain integrity for electrical enclosures used in automotive, food & beverage, and packaging industries. Feature → Business Impact → Application: Accurate net and reference dimensions (810/2311.5/840 mm net; 800x2200x500 mm reference) support precise space planning and retrofits, improving component fit and reducing enclosure rearrangements during system upgrades. Feature → Business Impact → Application: CE declaration of conformity and EN/IEC standards (IEC 62208, IEC 61439-1-2) provide verified safety and performance benchmarks, facilitating procurement approvals and ensuring compatibility with standard control panels and accessories across OEMs and integrators.
Get a Quick Quote for a ABB ES2285K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2285K?
Enquire Now
FAQs
The ES2285K is a preassembled enclosure with a blind door designed for plug-in readiness and quick commissioning. It supports standard control panel components and can be integrated with typical DIN rail and electrical accessories. When planning, verify internal width, mounting access, and door clearance against reference dimensions (800x2200x500 mm) and net dimensions (810x2311.5x840 mm) to ensure proper fit and serviceability.
The cabinet offers IP55 protection for dust and water ingress, RoHS and REACH compliance with documented dates, and a CE declaration of conformity. It aligns with IEC 62208 and IEC 61439-1-2 standards, supporting reliable operation in automated manufacturing environments and simplifying regulatory audits for multi-site deployments.
The ES2285K provides IP55 protection, which is appropriate for certain indoor and semi-exposed plant areas but is not a full weatherproof enclosure. For outdoor use or direct exposure to rain, additional weatherproofing or a dedicated outdoor enclosure would be recommended to meet environmental demands.
Key references include Declaration of Conformity IS2, IEC 62208, IEC 61439-1-2, and NEMA compatibility (1, 3R, 12). ETIM classifications EC000261, eClass V11.1 27180101, and the RoHS/REACH declarations underpin regulatory readiness and supplier qualification, ensuring the cabinet meets global electrical enclosure requirements.
Preassembly reduces on-site labor, accelerates commissioning, and minimizes field wiring complexity, delivering faster time-to-production and lower labor costs. The cabinet’s durable build, color-coded RAL 7035 finish, and verified CE/REACH compliance also reduce maintenance frequency and support longer service intervals, improving total cost of ownership in automation projects.
