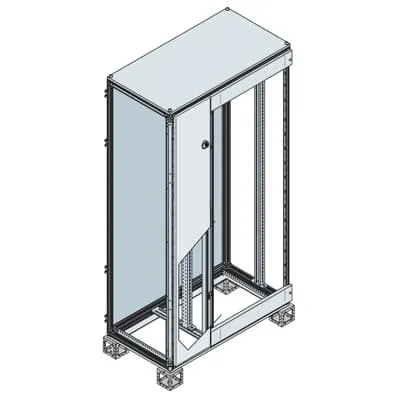

ABB ES2285MF2K Cabinet for configuration - IP55
Part Number: ES2285MF2K
Quick Summary
ABB ES2285MF2K Cabinet for configuration provides a rugged enclosure solution for industrial automation. Engineers often struggle with modular layouts, limited accessibility, and regulatory compliance in demanding spaces. CE conformity, IP55 protection, and IEC 62208/NEMA ratings support compliant, durable installations. By integrating with IS2 enclosures catalog, it offers scalable, cost-efficient control cabinets for OEMs and end users.
Product Information
Extended Description
ES2285MF2K ABB: Cabinets for compartments 2200x500x800mm (HxDxW) with Cable container W=200mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
810 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
840 mm
Product Net Weight
101.1530 kg
Reference Depth/Length
500 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
107.610 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre assembled cabinet for configuration with compartments. Impact: Accelerates deployment, reduces field wiring errors, and minimizes on-site construction time. Application: Ideal for large-scale control panels in automotive, process industries, and factory automation where compartmental organization improves maintenance and signal integrity. Feature: Orange Peel surface finish in RAL 7035 on sheet steel. Impact: Enhanced durability against corrosion, wear, and cleaning chemicals, lowering long-term maintenance costs. Application: Exterior enclosure suitable for harsh factory floors, outdoor-rated installations, and wash-down areas where aesthetics and protection matter. Feature: IP55 protection rating. Impact: Keeps dust and water ingress out, extending component life and reducingDowntime. Application: Enclosures deployed in dusty environments, humidity-prone plants, and moderately wet production lines. Feature: Reference dimensions and compartments 2200x500x800 mm (HxDxW). Impact: Modular sizing supports flexible layouts and downstream cable management; reduces custom fabrication costs. Application: Systems requiring scalable partitioning for drives, PLCs, and power distribution in centralized cabinets. Feature: RoHS, REACH, and WEEE compliance. Impact: Regulatory risk reduction and smoother supplier audits, lowering compliance costs. Application: Global manufacturing facilities needing green, legally compliant enclosures for automation projects. Feature: CE conformity and IEC/NEMA compatibility (IEC 62208, IEC 61439-1-2; NEMA 1, 3R, 12). Impact: Ensures safe operation and interoperability across assemblies and regional standards. Application: OEM builds and international deployments demanding standardized enclosure performance.
Get a Quick Quote for a ABB ES2285MF2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2285MF2K?
Enquire Now
FAQs
The ES2285MF2K is designed as an IS2-compatible cabinet for configuration with compartments and pre-assembled mounting. It aligns with IS2 Enclosures Technical Catalogue 2024 guidelines, supporting seamless integration with IS2 accessories, ventilation features, and standard mounting patterns, which simplifies procurement and reduces integration risk for OEMs and integrators.
Plan around its IP55 protection, single-door access, and 2200x800 mm footprint (reference). Ensure mounting surface clearance for door swing, cable ingress clearance for the 200 mm cable container, and compatible internal mounting rails. The enclosure is pre-assembled, which shortens on-site labor and minimizes field wiring errors during commissioning.
It carries CE conformity, IP55 protection, and is designed to IEC 62208, IEC 61439-1-2, and NEMA 1, 3R, 12 classifications. RoHS information and REACH declarations are included, along with a WR/IS2 reference, ensuring regulatory compliance for global deployments and safer, auditable sourcing.
Best suited for industrial control panels, process automation, and large machine housing where compartmental organization improves wiring discipline and maintenance. Its 2200x500x800 mm compartments, orange peel finish, and robust sheet steel construction make it ideal for manufacturing lines, packaging equipment, and utility control rooms needing durable, scalable enclosures.
The pre-assembled configuration reduces installation time and field wiring errors, lowering labor costs and commissioning risk. IP55 protection minimizes ingress-related maintenance, and the RoHS/REACH compliance reduces regulatory overhead. Over the life of a production line, these factors translate to less downtime, extended service intervals, and a faster return on investment.
