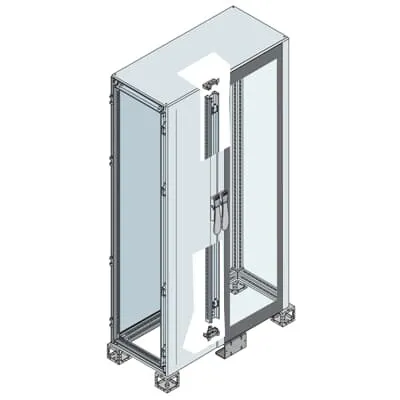

ABB ES2285VC2K Enclosure - IP55, Glass Door Cabinet
Part Number: ES2285VC2K
Quick Summary
ABB ES2285VC2K enclosure provides robust control and automation cabinet solutions for industrial electrical panels. Facility teams often wrestle with limited space and the risk of dust, moisture, and messy cable runs during panel installs. It meets CE conformity and IEC 62208/61439-1-2 requirements, and carries an IP55 rating for reliable operation in semi-harsh environments. Designed for IS2 enclosures and standard ABB control panels, the pre-assembled, glazed-door cabinet reduces installation time and ensures consistent cable management. With a durable sheet steel build and a protective RAL 7035 orange peel finish, it supports long-term reliability and predictable maintenance planning for modern automation projects.
Product Information
Extended Description
ES2285VC2K ABB: Cabinet with glass door2200x800x500mm (HxWxD) W=200mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - glazed door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
810 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
840 mm
Product Net Weight
110.8450 kg
Reference Depth/Length
500 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
117.920 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Pre-assembled cabinet with a cable container and glazed door accelerates field wiring and reduces installation risk. Shorter commissioning times translate into lower labor costs and faster time-to-value for machine builders and system integrators. Ideal for control panels in conveyors, packaging lines, and process automation where quick access and tidy cable routing matter. IP55 protection with a glass door protects sensitive electronics in dusty or mildly moist environments, enabling reliable operation in indoor facilities and machine cabinets. The integrated cable container simplifies cable management, reduces fault risk, and eases future changes during upgrades or expansions. A durable sheet steel body with orange peel finish (RAL 7035) delivers long-term reliability with minimal maintenance and corrosion resistance. Dimensions and mounting compatibility support easy retrofits and seamless integration into existing control architectures, enabling faster modernization and standardized deployments across plant environments.
Get a Quick Quote for a ABB ES2285VC2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2285VC2K?
Enquire Now
FAQs
ABB ES2285VC2K is a pre-assembled enclosure with a glazed double door and integrated cable container, designed to fit standard mounting footprints and IS2 enclosure configurations. It accelerates retrofits and new builds by streamlining wiring layouts and reducing on-site assembly. Expect shorter commissioning times, fewer field wiring errors, and a smoother handover to operations once installed.
Key specifications include a reference size of 2200 mm height by 800 mm width and 500 mm depth (reference), net width 810 mm, net height 2311.5 mm, and net depth 840 mm. It features IP55 protection, sheet steel construction, and a double glazed door with a transparent surface. Finishing is orange peel in RAL 7035, with CE conformity and IEC 62208/61439-1-2 alignment.
Yes. The IP55 rating provides protection against dust ingress and light moisture, making it suitable for indoor industrial spaces with moderate exposure. The glazed door enables quick visual checks, while the rugged sheet steel body and finish resist wear in busy production areas. For extreme washdown zones, consider additional protective measures or location planning.
The enclosure carries CE conformity and adheres to IEC 62208 and IEC 61439-1-2 standards, along with NEMA equivalents (1, 3R, 12). ETIM EC000261 classifies it as an enclosure/cabinet, and eClass 27180101 further identifies its category. RoHS information and REACH declarations are provided, with a RoHS date of 20250108 and a REACH status indicating compliance.
The pre-assembled design reduces on-site labor, minimizes commissioning risk, and accelerates project timelines, delivering a faster time-to-value. Integrated cable containment simplifies future changes and maintenance planning, while durable construction lowers long-term repair costs. These factors contribute to a lower total cost of ownership and predictable performance for modernization projects.
