ABB ES2286FV2K Control Cabinet - IP55 Enclosure
Part Number: ES2286FV2K
Quick Summary
ABB ES2286FV2K cabinet is a rugged control and automation enclosure for industrial control panels. It helps protect critical electronics from dust, moisture, and misrouting in demanding production environments. The unit carries IP55 protection, CE conformity, and compliance with IEC 62208/IEC 61439, ensuring safety and performance across critical electrical installations. The pre-assembled cabinet design reduces on-site installation time and risk, while the orange-peel surface in RAL 7035 simplifies cleaning and traceability. With its durable sheet steel construction and double door, the ES2286FV2K delivers reliable, long-term operation in manufacturing lines and packaging facilities.
Product Information
Extended Description

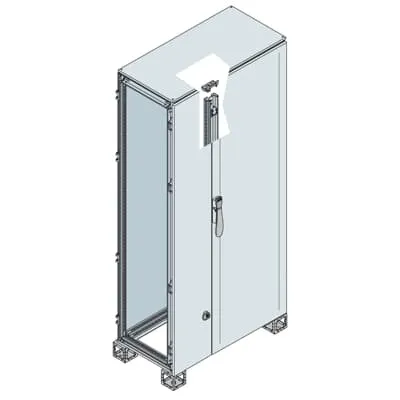

ES2286FV2K ABB: Cabinet with blind door 2200x800x600mm (HxWxD) W=200mm
Configuration Type
5. Cabinet with cable container
Enclosure Type
Pre assembled - blind door cabinet with cable container
Mounting Type
Pre assembled
Product Type
5B5B10B150
Door Type
Double
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
810 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
840 mm
Product Net Weight
117.7440 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
125.260 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: The IP55-rated enclosure delivers reliable protection against dust and water spray, reducing downtime and warranty claims in harsh factory environments. This enables longer service intervals and lower maintenance costs for packaging lines and assembly cells. Feature → Business Impact → Application: The pre-assembled cabinet with a dedicated cable container accelerates installation, minimizes field wiring errors, and shortens project timelines, particularly in control rooms and electrical distribution cabinets. Feature → Business Impact → Application: Sheet steel construction with an orange-peel RAL 7035 finish provides durable, easy-to-clean surfaces that improve identification and reduce repaint cycles in multi-line plants. Feature → Business Impact → Application: The 810 mm width, 2311.5 mm height, and 840 mm depth fit standard workflow layouts and allow seamless integration into OEM control panels and machine automation cabinets. Feature → Business Impact → Application: Compliance to IEC 62208, IEC 61439-1-2 and ETIM classifications reduces regulatory risk and simplifies procurement for industrial facilities demanding strict standards. Feature → Business Impact → Application: RoHS and REACH compliance minimizes regulatory exposure and supports sustainability programs across manufacturing sites.
Get a Quick Quote for a ABB ES2286FV2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2286FV2K?
Enquire Now
FAQs
Yes. The ES2286FV2K is designed as a pre-assembled cabinet with a reinforced mounting framework and a dedicated cable container, making it compatible with typical PLCs, drive modules, and auxiliary wiring. Its double-door configuration and ISO-aligned dimensions simplify integration into existing panel layouts while reducing field modification time.
Key specs include IP55 protection, sheet steel construction, and a durable orange-peel finish in RAL 7035. Dimensions reference 810 mm width, 2311.5 mm height, and 840 mm depth, with a net weight around 117.7 kg. It complies with RoHS and REACH and aligns with IEC 62208 and IEC 61439-1-2 safety standards.
Ideal for industrial automation panels, machine control enclosures, packaging lines, and manufacturing equipment housings. Its IP55 rating enables use in dusty or sprayed environments, while the pre-assembled design supports rapid deployment in OEM assembly lines, food and beverage packaging, and automotive manufacturing cells.
The ES2286FV2K ships with CE conformity documentation (Declaration of Conformity IS2), and references IEC 62208/61439-1-2 standards. It is ETIM EC000261 compliant, RoHS and REACH compliant, and is suitable for environments requiring NEMA 1, 3R, 12 compatibility as noted in the IEC-based standards matrix.
The pre-assembled design minimizes field wiring time and reduces installation risk, delivering faster time-to-value and lower labor costs. Durable surface finishing and RoHS/REACH compliance support lower repaint and regulatory overhead. The robust IP55 enclosure protects electronics longer, decreasing downtime and extending intervals between routine maintenance.
