ABB ES2286MF2K Enclosure - IP55, IEC 62208/61439
Part Number: ES2286MF2K
Quick Summary
ABB ES2286MF2K cabinet enables a robust control and automation housing for industrial panels in demanding environments. This pre-assembled enclosure addresses common install-time delays and field configuration challenges by delivering a ready-to-use solution with compartmentalized layouts. The design aligns with IEC 62208 and IEC 61439-1/2, along with IP55 protection, ensuring safe operation and long-term reliability. With a durable orange-peel finish in RAL 7035 and RoHS/REACH compliance, it supports scalable automation projects while reducing total cost of ownership through standardized components and faster commissioning.
Product Information
Extended Description

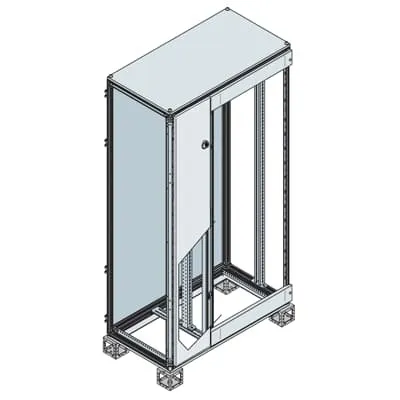

ES2286MF2K ABB: Cabinets for compartments 2200x600x800mm (HxDxW) with Cable container W=200mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
810 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
840 mm
Product Net Weight
104.7720 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
111.460 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
