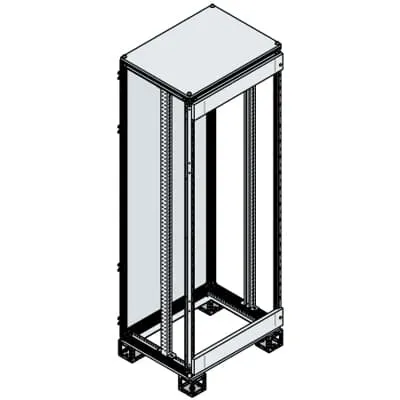

ABB ES2286MFK cabinet for Compartments - IP55
Part Number: ES2286MFK
Quick Summary
ABB ES2286MFK cabinet for configuration with compartments houses control boards in industrial automation. On-site assembly often slows projects, increases risk, and leads to misalignment of wiring; this pre-assembled enclosure minimizes field labor and speeds deployment. It carries CE conformity and IEC 62208/61439-1-2 compliance, with IP55 protection to withstand challenging environments, while RoHS/REACH information reinforces regulatory adherence. For system integrators and manufacturers, the enclosure supports efficient procurement (ETIM EC000261; eClass V11.1) and provides a scalable platform for future expansion and consolidated control architectures.
Product Information
Extended Description
ES2286MFK ABB: Cabinets for compartments 2200x600x800mm (HxDxW) with Cable container W=-mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
810 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
840 mm
Product Net Weight
87.5050 kg
Reference Depth/Length
600 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
93.090 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Pre-assembled cabinet with compartments enables rapid deployment and consistent configuration. Benefit: Reduces on-site assembly time, lowers labor costs, and improves project timelines. Application: Ideal for control panels in automated lines where enclosure standardization shortens commissioning. Feature: IP55 protection and RoHS/REACH compliance safeguard critical electronics from dust and water ingress while meeting environmental regulations. Benefit: Minimizes maintenance outages and risk of non-compliance fines. Application: Outdoor or semi-enclosed industrial environments with demanding cleanliness and regulatory expectations. Feature: Durable sheet steel construction with orange peel finish (RAL 7035) and single door design. Benefit: Long-term corrosion resistance, easy maintenance, and streamlined door access for routine inspections. Application: Asset-intensive facilities requiring durable enclosures with simple service access. Feature: Large but standardized dimensions (reference 2200x800x600 mm; net around 2311.5x810x840 mm) and mounting options. Benefit: Fits common control architectures and enables modular upgrades without rework. Application: Systems integrating multiple control subsystems in a compact footprint. Feature: Compliance with IEC 62208, IEC 61439-1-2, and NEMA equivalents; CE declaration and ETIM/eClass classifications. Benefit: Simplifies regulatory approval and supplier selection while ensuring interoperability. Application: Engineering teams sourcing cabinets for regulated machinery and plant automation.
Get a Quick Quote for a ABB ES2286MFK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2286MFK?
Enquire Now
FAQs
Plan around the cabinet’s pre-assembled design to minimize on-site assembly. Verify mounting accommodations and door orientation, then align the enclosure with standard DIN rail or chassis layouts for control components. Ensure cable routes are kept clear of hinges and that the IP55 seals remain intact during installation. Use proper lifting and alignment procedures to protect surfaces.
IP55 protection provides dust and water ingress protection suitable for many industrial settings. Key dimensions include reference height 2200 mm and width 800 mm with a depth of 600 mm, while net dimensions are around 2311.5 mm (H) x 810 mm (W) x 840 mm (D). The cabinet uses sheet steel with orange peel finish in RAL 7035, and a single-door configuration.
Yes. The ES2286MFK base design references IEC 62208 and IEC 61439-1-2 standards, aligning with responsibility for safe, reliable electrical enclosures. The IP55 rating enhances protection against dust and water ingress, while CE conformity supports broad regulatory acceptance. For extra ruggedness, consider RoHS/REACH compliance details where applicable to your materials and processes.
The enclosure carries CE Declaration of Conformity IS2 and adheres to ETIM EC000261 and eClass V11.1 classifications. Standards include IEC 62208 and IEC 61439-1-2, along with NEMA equivalents. Verification typically involves reviewing the CE declaration, technical data sheets, and IS2 documentation, ensuring the cabinet aligns with your regulatory and procurement requirements.
The pre-assembled configuration reduces field labor and commissioning time, delivering faster time-to-production and lower lifecycle costs. Its durable finish and IP55 protection decrease preventive maintenance needs, while RoHS/REACH compliance minimizes regulatory risk. The cabinet’s compatibility with IS2 enclosures and standard classifications also supports easier part replacement and supplier consolidation.
