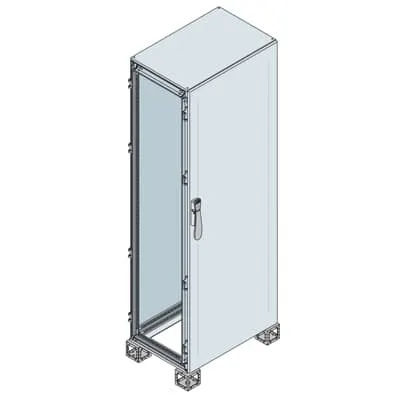

ABB ES2288K Cabinet with Blind Door – Enclosure IP55
Part Number: ES2288K
Quick Summary
ABB ES2288K cabinet is a robust control enclosure designed for automation panels in harsh industrial environments. Engineers often struggle with preassembled enclosures that fit complex footprints and mounting constraints, causing project delays and frequent field modifications. This cabinet supports IEC 62208 and IEC 61439 standards, IP55 protection class, and CE conformity for global usage. A preassembled cabinet with a rugged sheet steel body reduces installation time, simplifies logistics, and accelerates commissioning across multi-site projects. Its RoHS and REACH compliance and prefinished orange peel surface support durable, compliant deployments across diverse industrial sites, while easing maintenance and future upgrades.
Product Information
Extended Description
ES2288K ABB: Cabinet with blind door 2200x800x800mm (HxWxD)
Configuration Type
1. Cabinet with single door
Enclosure Type
Pre assembled - cabinet with blind door
Mounting Type
Pre assembled
Product Type
5B5B10B110
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
810 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
840 mm
Product Net Weight
111.1930 kg
Reference Depth/Length
800 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
118.290 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature: Cabinet with single door and preassembled design → Business Impact: Reduces on-site assembly time and field wiring complexity, speeding up commissioning and enabling faster time-to-value for automation projects. Application: Ideal for machine builders and process automation panels in manufacturing environments. Long-tail keywords: preassembled enclosure for automation, industrial control cabinet, cabinet with single door. Feature: IP55 rated sheet steel enclosure with orange peel finish → Business Impact: Provides reliable protection against dust and water ingress, extending component life and reducing maintenance cycles. Application: Harsh factory floors and outdoor-adjacent control rooms. Long-tail keywords: IP55 enclosure for industrial environments, sheet steel enclosure. Feature: RoHS and REACH compliance with CE declaration → Business Impact: Ensures regulatory compliance, easing procurement and audit processes. Application: Global deployments across regulated industries. Long-tail keywords: RoHS information, REACH declaration, CE conformity. Feature: Large footprint with defined reference dimensions (800x2200x800 mm) and net width 810 mm → Business Impact: Predictable fit with existing rack systems and standardized layouts, minimizing rework. Application: Retrofit projects and new installations in control cabinets. Long-tail keywords: standard enclosure dimensions, machine control cabinet compatibility. Feature: Finish and material attributes (RAL 7035) → Business Impact: Visual compliance and corrosion resistance for indoor use, plus straightforward color-coding for plant-wide standardization. Application: Panel installations requiring color-coded enclosures and durable surfaces. Long-tail keywords: RAL 7035 orange peel, opaque door surface. Rule-based notes: All features align with IEC and ETIM classifications to streamline sourcing and data accuracy.
Get a Quick Quote for a ABB ES2288K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2288K?
Enquire Now
FAQs
ES2288K uses a reference footprint of 800 mm with a net width of 810 mm and a height of 2311.5 mm. It arrives preassembled with a single-door configuration, making retrofit and new-install projects straightforward. Before integration, verify door clearance and service access to ensure smooth wiring and future maintenance.
The ES2288K enclosure meets IEC 62208 and IEC 61439-1-2 standards, carries IP55 protection, and provides CE conformity. It also aligns with ETIM EC000261 and eClass 27180101 classifications, ensuring compatibility with common specification catalogs and purchasing systems.
Best suited for machine builders, process automation, and factory automation panels that require robust protection and reliable service access. With its IP55 rating and RoHS/REACH compliance, it performs well in manufacturing floors, distribution centers, and controlled environments where lifetime reliability and regulatory compliance are critical.
Yes. The ES2288K carries a CE declaration, RoHS information with a stated RoHS date, and REACH declaration, confirming compliance with European regulatory requirements. These certifications support audits and cross-border procurement for global operations.
The preassembled design minimizes field labor and reduces commissioning time, lowering installation costs and downtime. The IP55 protection and durable sheet steel body extend service life in demanding environments, while standard finishes and dimensions simplify future maintenance and upgrades, delivering tangible total-cost-of-ownership benefits.
