ABB ES2288MF2K Cabinets - IP55 Enclosure for Configurations
Part Number: ES2288MF2K
Quick Summary
ABB ES2288MF2K Cabinets are pre-assembled enclosures for configurable control cabinets in industrial automation. OEMs often struggle with lengthy integration time and protection when configuring multi-compartment layouts. Built to IEC 62208 and IEC 61439-1-2 standards, with IP55 protection and RoHS compliance, they safeguard critical equipment and meet demanding regulatory requirements. The IS2 Enclosures Technical Catalogue 2024 alignment and rapid pre-assembly support faster deployment, lower on-site labor, and reduce lifecycle costs. With a spacious footprint including a 200 mm cable container, the cabinet adapts to power distribution, control modules, and wiring while preserving accessibility and scalability across sites.
Product Information
Extended Description

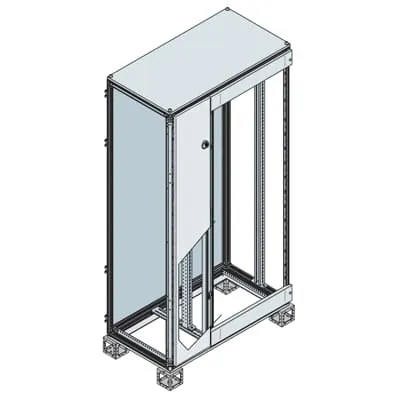

ES2288MF2K ABB: Cabinets for compartments 2200x800x800mm (HxDxW) with Cable container W=200mm
Configuration Type
6. Cabinet for configuration with compartments
Enclosure Type
Pre assembled - cabinet for configuration with comprtments
Mounting Type
Pre assembled
Product Type
5B5B10B180
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Opaque
Material
Sheet Steel Metal
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Degree of Protection
acc. to IEC 60529 IP55
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
810 mm
Product Net Height
2311.5 mm
Product Net Depth / Length
840 mm
Product Net Weight
111.9920 kg
Reference Depth/Length
800 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
119.140 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000261 - Enclosure/cabinet (empty)
ETIM 9
EC000261 - Enclosure/cabinet (empty)
eClass
V11.1 : 27180101
Object Classification Code
U
Standards
IEC 62208, IEC 61439-1-2 | NEMA 1, 3R, 12
Feature → Business Impact → Application: Pre-assembled configuration with compartments reduces on-site assembly time and installation risk, enabling faster project commissioning and lower labor costs in industrial automation projects. In practice, system integrators can deploy multi-zone control cabinets with consistent interfaces, improving uptime and reducing commissioning penalties when integrating PLCs, drives, and I/O modules in machine cells. Feature → Business Impact → Application: Durable sheet steel construction with orange peel RAL 7035 finish provides long-term protection against dust and corrosion in harsh environments, which translates into lower maintenance cycles and reduced spare-part inventories for OEMs. Feature → Business Impact → Application: IP55 protection throughout the enclosure delivers reliable ingress protection for factory floors, supporting external cable management and protecting sensitive electronics in dynamic production lines. Feature → Business Impact → Application: The 2200 mm reference height and 800×800 mm footprint accommodate configurable compartment layouts and a 200 mm cable container, enabling neat wiring and modular expansion without compromising access. Feature → Business Impact → Application: RoHS and REACH compliance, plus CE declaration, simplify regulatory approvals for global deployments and reassure procurement teams about material integrity and sustainability. Feature → Business Impact → Application: ETIM and eClass classifications (EC000261; V11.1: 27180101) ensure accurate product categorization in ERP and procurement systems, accelerating sourcing and reducing ordering errors. Feature → Business Impact → Application: Pre-assembly support and IS2 Enclosures alignment shorten delivery cycles, enabling consistent installation across sites and reducing total cost of ownership over the product lifecycle.
Get a Quick Quote for a ABB ES2288MF2K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ES2288MF2K?
Enquire Now
FAQs
Yes. The ES2288MF2K cabinet is designed for IEC 62208 and IEC 61439-1-2 compliance, CE conformity, RoHS/REACH declarations, and IP55 protection, ensuring seamless integration with standard industrial control architectures and ABB automation components. Plan mounting using the 800 mm reference width and 2200 mm reference height to match your layout, and verify DIN-rail and cable-management compatibility for your specific I/O modules.
Key dimensions include Product Net Width 810 mm, Product Net Height 2311.5 mm, Product Net Depth 840 mm, with a Reference Height of 2200 mm and Reference Width of 800 mm. The enclosure carries IP55 ingress protection, ensuring protection against dust and water jets in typical factory environments, alongside a 200 mm cable container for organized wiring.
The ES2288MF2K is ideal for manufacturing cells, process automation lines, and machine builders requiring configurable, multi-compartment control cabinets. Its modular compartments and pre-assembled design suit PLC, drive, and I/O integration in automotive, packaging, food and beverage, and general industrial equipment applications, enabling scalable layouts across multiple machines or lines.
The enclosure complies with CE Declaration of Conformity, RoHS and REACH declarations, and is tested to IEC 62208 and IEC 61439-1-2 standards. RoHS indicates restriction of hazardous substances, REACH ensures chemical safety, and CE marks regulatory compliance for broader European market access, while IP55 confirms robust protection against dust and moisture.
Pre-assembly minimizes on-site assembly time and configuration effort, reducing labor costs and risk of field errors. The modular compartments and standardized interfaces streamline procurement, installation, and future expansions, contributing to shorter down times, faster commissioning, and a lower total cost of ownership over the cabinet’s lifecycle.
