ABB ET1860K Control and Automation Board - CE Conformity
Part Number: ET1860K
Quick Summary
ABB ET1860K is a control and automation board designed for industrial enclosure projects and system integration. Users often struggle with mismatched dimensions, lengthy approvals, and non-compliant materials that derail automation timelines. This unit carries CE conformity with RoHS and REACH declarations and aligns with ETIM classification, streamlining procurement and regulatory documentation. Documented in the IS2 Enclosures Technical Catalogue 2024, it supports consistent cabinet aesthetics with an Orange Peel surface finish in RAL 7035 and a glazed front door kit. For system integrators and OEMs, the ET1860K enables faster installation, predictable performance, and reduced lifecycle costs through standardized components and clear material declarations. Its reference footprint and adjustable depth options help fit varied machine layouts without costly reworks.
Product Information
Extended Description

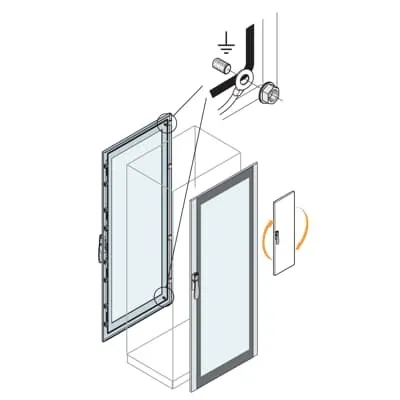

ET1860K ABB: Glazed door 1800x600mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - glazed front door
Mounting Type
Kit
Product Type
5B5B20B240
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
594 mm
Product Net Height
1796 mm
Product Net Depth / Length
46 mm
Product Net Weight
16.010 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
16.330 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature: Door configuration and glazed front door kit. Business Impact: Enables rapid, tool-free access to internal components and improves operator visibility. Application: Ideal for machine panels, panel builders, and OEM cabinets requiring a secure, ergonomic front door. Feature: Enclosure material and finish. Business Impact: Corrosion resistance and a consistent aesthetic reduce maintenance and repainting costs over the life of the cabinet. Application: Harsh industrial environments where orange peel finish in RAL 7035 maintains appearance and protection. Feature: Reference footprint and scalable depth. Business Impact: Standardized width and height with depth options minimizes rework and accelerates design validation. Application: Fits 600x1800 mm frames with depth variants of 400, 500, 600, 800, or 1000 mm for diverse installations. Feature: Compliance and documentation. Business Impact: Streamlines regulatory approvals and disposal planning with clear declarations and ETIM/eClass classifications. Application: Suitable for projects requiring CE, RoHS, REACH, and WEEE alignment supported by IS2 documentation. Feature: Documentation and packaging. Business Impact: Reduces procurement risk and logistics costs with single-piece packaging and explicit manuals. Application: OEMs and integrators benefit from predictable lead times and straightforward install sequences with 1STM604121R0006.
Get a Quick Quote for a ABB ET1860K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ET1860K?
Enquire Now
FAQs
ABB ET1860K uses a kit-based mounting with a glazed front door for 600x1800 mm reference enclosures. Plan for a 594 mm net width, 1796 mm net height, and 46 mm net depth; weight is about 16.0 kg. Install per IS2 configuration guidelines (1STM604121R0006) to ensure correct fit, fast assembly, and compliant cabling access.
Key dimensions include net width 594 mm, net height 1796 mm, net depth 46 mm, with a reference footprint of 600x1800 mm and overall package weight of 16.010 kg. The gross package weight is 16.330 kg. These figures help plan internal mounting rails and device placement while maintaining required clearance.
ET1860K uses a pickled steel sheet with an Orange Peel finish in RAL 7035 and is shipped as a glazed front door kit. It supports robust industrial cabinets and RoHS/REACH compliance, but IP rating isn’t specified in the datasheet. For hazardous environments, verify with IS2 Enclosures Catalogue and consider customer-specific IP requirements.
The product carries CE conformity with a Declaration of Conformity IS2, RoHS compliance (date 20250108), and a REACH declaration indicating no substances above 0.1% mass. WEEE category is Product Not in WEEE Scope, and ETIM/eClass classifications are EC000747 and V11.1 27182204. These certifications support regulatory readiness and simplify procurement and documentation workflows.
Standardized dimensions, a glazed-front door kit, and clear material declarations reduce sourcing time and change orders. The single-piece packaging and documented manuals (IS2 and 1STM604121R0006) streamline onboarding, while RoHS/REACH and WEEE compliance lower risk and disposal costs. The result is faster deployment, easier maintenance, and predictable lifecycle costs for OEMs and system integrators.
