ABB ET1880K Enclosure Kit - CE Declaration of Conformity
Part Number: ET1880K
Quick Summary
ABB ET1880K is an enclosure kit designed to house control and automation boards for industrial control panels. This solution tackles the common challenge of integrating a robust, compliant cabinet in space-constrained or harsh manufacturing environments. It carries CE Declaration of Conformity, RoHS and REACH compliance, and aligns with the IS2 Enclosures Technical Catalogue 2024. For engineers and procurement teams, this means a reliable, standards-driven enclosure with a glazed front door and scalable mounting options that can accelerate installation while reducing lifecycle costs.
Product Information
Extended Description

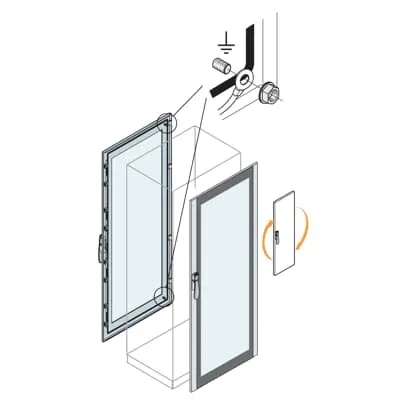

ET1880K ABB: Glazed door 1800x800mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - glazed front door
Mounting Type
Kit
Product Type
5B5B20B240
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
1796 mm
Product Net Depth / Length
46 mm
Product Net Weight
21.250 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
21.680 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Glazed front door kit provides fast visual access to internal components, enabling quicker inspections and maintenance without compromising enclosure integrity. Material is pickled steel sheet with an orange peel surface finishing in RAL 7035, delivering durable corrosion resistance and a professional factory appearance while maintaining compatibility with standard industrial environments. The enclosure offers a compact yet tall footprint with a product net width of 794 mm and height of 1796 mm, and a slim net depth of 46 mm; reference depths include 400, 500, 600, 800 and 1000 mm, delivering installation flexibility for various control panel configurations. Compliance features, including RoHS and REACH declarations and CE conformity, mitigate regulatory risk and simplify procurement audits. ETIM and eClass classifications (EC000747; 27182204) improve catalog searchability and supplier integration. Kit mounting type and single door design streamline assembly, reduce field labor, and support modular upgrades for growing automation needs.
Get a Quick Quote for a ABB ET1880K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ET1880K?
Enquire Now
FAQs
ET1880K uses a Kit mounting type with a glazed front door, supporting 3. Door configuration and a reference depth range of 400–1000 mm. This enables flexible integration with various control panels while keeping installation simple for field technicians.
The enclosure features a net width of 794 mm, net height of 1796 mm, and net depth of 46 mm. The product weight is 21.250 kg, with a packaged gross weight of 21.680 kg, aiding precise space planning and shipping considerations.
Yes. The ET1880K carries a CE Declaration of Conformity and has RoHS information dated 20250108, along with REACH declaration and details indicating compliance with substance limits and regulatory requirements for safe use in industrial environments.
ET1880K is intended for control and automation panels in industrial automation and process control. Its glazed door and robust steel construction make it suitable for factory floors, machine housings, and switchgear cabinets where visual access, protection, and reliability are critical.
Yes. The product supports reference depth/length options of 400, 500, 600, 800, and 1000 mm, with a reference height of 1800 mm and reference width of 800 mm, allowing designers to tailor the enclosure to varying control panel configurations.
