ABB ET2211K Control and Automation Board - Glazed Door CE
Part Number: ET2211K
Quick Summary
ABB ET2211K is a control and automation board designed for industrial switchgear and control panels. Engineers often struggle with glazed-front enclosures that must meet CE and RoHS while still enabling easy maintenance and future upgrades. It is CE certified with a Declaration of Conformity, RoHS and REACH information, and is referenced in ETIM and eClass standards for reliable procurement. By combining rugged pickled steel construction with a durable orange-peel finish (RAL 7035), the ET2211K delivers long service life in demanding environments. Designed for large cabinet installations, it simplifies installation, improves serviceability, and reduces total cost of ownership by ensuring compatible mounting options and installation manuals.
Product Information
Extended Description

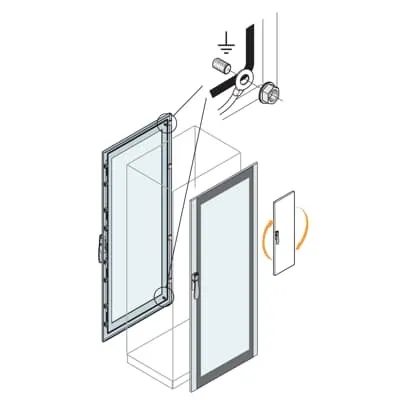

ET2211K ABB: Glazed door 2200x1000mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - glazed front door
Mounting Type
Kit
Product Type
5B5B20B240
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
994 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
32.30 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
32.960 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Feature is the glazed front door kit with a robust 2200 mm high x 1000 mm wide enclosure profile. Business impact is improved visual inspection access and streamlined maintenance for critical control panels, reducing downtime in automated lines. The application includes IS2 Enclosures Catalogue 2024 guidance, enabling consistent deployment across facilities and easier procurement. Feature the pickled steel sheet material with Orange Peel, RAL 7035 finish for corrosion resistance and predictable aesthetics, delivering durable protection in harsh industrial environments. Business impact is longer service life and lower repaint/maintenance costs, especially in chemical or humidity-prone settings, with a professional cabinet appearance. Feature the 46 mm depth and reference depth options (400/500/600/800/1000 mm), which translates to flexible retrofits and easier integration with existing systems. Application spans machine enclosures, control cabinets, and large automation panels, offering scalable solutions for plant-wide installations. The kit design supports straightforward installation using 1STM604121R0006 manuals, addressing common objections about compatibility and effort, and enabling rapid commissioning. Industry insight shows that ETIM and eClass classifications (EC000747) streamline sourcing and reduce risk in vendor selection, while the front-glass glazed door improves state visibility without compromising security or environmental protection.
Get a Quick Quote for a ABB ET2211K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ET2211K?
Enquire Now
FAQs
To install the ET2211K, verify compatibility with the glazed-front kit, anchor points, and mounting dimensions. Refer to the installation manual 1STM604121R0006 for step-by-step guidance, including sequential door mounting, gasket alignment, and hinge torque. Ensure reference depth options (400–1000 mm) align with your enclosure footprint and service access needs for reliable commissioning.
Key dimensions include a reference height of 2200 mm and reference width of 1000 mm, with a product net width of 994 mm, net height of 2196 mm, and net depth of 46 mm. The enclosure is supplied as a kit with a glazed front door and supports reference depths of 400, 500, 600, 800, and 1000 mm, ensuring compatibility with standard IS2 enclosure configurations.
Yes. The ET2211K includes a CE Declaration of Conformity and RoHS and REACH information, with RoHS and REACH dates noted as 20250108. It is also listed under ETIM 8/9 EC000747 and eClass 27182204, confirming regulatory compliance and structured classification for procurement efficiency.
The door is a single glazed unit formed in a kit enclosure with a pickled steel sheet body and an orange-peel surface finish in RAL 7035 light grey. The front door is transparent, enabling clear visibility of internal components while maintaining environmental protection and safety requirements typical for industrial cabinets.
The product net weight is 32.30 kg, supplied as a single piece per package. The package gross weight is 32.960 kg, and packaging is sized for a single unit per carton. This information supports safe handling, accurate freight planning, and efficient warehouse operations during deployment.
