ABB ET2280K Enclosure - Glazed front door, CE/IS2
Part Number: ET2280K
Quick Summary
ABB ET2280K Enclosure protects control panels in industrial automation applications. Engineers frequently wrestle with panel visibility, door misalignment, and downtime during maintenance. This glazed front-door kit meets CE conformity (Declaration of Conformity IS2), RoHS and REACH requirements, and ETIM EC000747 classification. Built from pickled steel with an Orange Peel, RAL 7035 finish, and a practical kit mounting design, it delivers durable protection in harsh environments while simplifying installation. The enclosure’s robust dimensions and modular depth options support scalable panel builds, reducing downtime and total cost of ownership for panel builders and maintenance teams.
Product Information
Extended Description

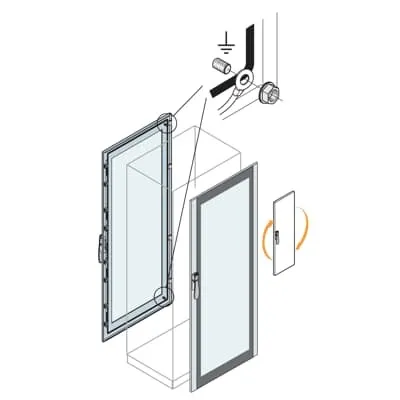

ET2280K ABB: Glazed door 2200x800mm (HxW)
Configuration Type
3. Door
Enclosure Type
Kit - glazed front door
Mounting Type
Kit
Product Type
5B5B20B240
Door Type
Single
Surface Finishing
Orange Peel, RAL 7035
Door Surface Finishing
Transparent
Material
Pickled steel sheet
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
794 mm
Product Net Height
2196 mm
Product Net Depth / Length
46 mm
Product Net Weight
25.910 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2200 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
26.440 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.1 : 27182204
Object Classification Code
U
Standards
See code for structure
Glazed front door kit with a single door provides clear sightlines for inspection and faster access during maintenance. This reduces downtime and enables prompt fault diagnosis on automated control panels in manufacturing environments. Durable pickled steel sheet with Orange Peel, RAL 7035 finish offers long-term corrosion resistance in factory floors, lowering replacement costs and minimizing maintenance interruptions. Flexible dimensions and reference depths—794 mm width, 2196 mm height, 46 mm depth with options 400/500/600/800/1000 mm—allow seamless integration into existing layouts and equipment racks, reducing engineering time and ensuring a tight fit. Mounting Type Kit and Product Type 5B5B20B240 provide straightforward installation and alignment with standard procurement workflows, supporting panel builders and integrators seeking standardized enclosures. Regulatory compliance is assured with CE Declaration, RoHS and REACH information, and WEEE considerations, simplifying regulatory approvals and end-of-life planning. Documentation and data availability, including IS2 Enclosures Technical Catalogue 2024 and installation manual 1STM604121R0006, ensure accurate installation and ongoing maintenance.
Get a Quick Quote for a ABB ET2280K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB ET2280K?
Enquire Now
FAQs
The ET2280K uses a Kit mounting type with a glazed front door and a single door design. It supports reference depths of 400, 500, 600, 800, and 1000 mm, aligning with a 794 mm width and 2196 mm height for straightforward integration into existing racks and panel layouts. This compatibility simplifies procurement and reduces engineering time.
The enclosure is built from pickled steel sheet with an Orange Peel surface finish in RAL 7035, and the door surface finishing is transparent. This combination delivers durable protection on factory floors while maintaining an aesthetic, professional appearance. RoHS information confirms compliance, and a REACH declaration ensures regulatory alignment for electronics and machinery environments.
Ideal for control cabinets in automation, electrical distribution, and process lines across manufacturing sectors. The glazed front door enables quick visibility for inspections and fault diagnosis, while the kit design speeds commissioning and simplifies ongoing maintenance in space-constrained environments.
The enclosure carries CE conformity with a Declaration of Conformity (IS2), RoHS information dated 20250108, and a REACH declaration dated 20250108. WEEE categorization indicates the product scope. ETIM 8/9 classifications EC000747 are provided for standardized procurement and cross-system compatibility, aiding regulator and supplier approvals.
Installation and maintenance resources include the IS2 Enclosures Technical Catalogue 2024 data sheet and the manual 1STM604121R0006. These documents cover dimensions, mounting, wiring, and service guidelines, enabling faster start-ups, reducing risk during maintenance, and supporting long-term reliability. Additional ABB catalogs provide integration references for IS2 enclosures and related accessories.
