ABB EV0003 Other/Miscellaneous - RoHS 20250108
Part Number: EV0003
Quick Summary
EV0003 is a cabinet joining kit designed for IS2 automation enclosures, enabling side-by-side mounting and streamlined cabinet expansion. Engineers often struggle with misaligned panels and time-consuming assembly when scaling control cabinets for growing automation lines. The solution aligns with CE declarations, RoHS compliance dated 2025-01-08, and REACH information, giving you regulatory assurance across sites. Pre-assembled for fast deployment, the kit reduces install time, minimizes gaps, and supports dependable maintenance by preserving exact spacing and baying. Designed for ABB IS2 systems and related enclosure accessories, it delivers predictable fit, easier sourcing, and a clear path to scalable control architectures. This combination helps engineering teams meet project deadlines while maintaining reliability in harsh industrial environments.
Product Information
Extended Description

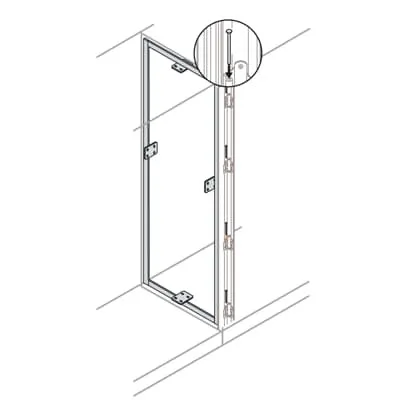

EV0003 ABB: Cabinet joining kit
Sub-Function 3
Coupling set, side
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
14. Kit for placing structures side by side
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B391
Material
Pickled steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
250 mm
Product Net Height
35 mm
Product Net Depth / Length
250 mm
Product Net Weight
0.494 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.495 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002622 - Components for arrangement / baying system (enclosure/cabinet)
ETIM 9
EC002622 - Components for arrangement/baying system (enclosure/cabinet)
eClass
V11.1 : 27182813
Object Classification Code
U
Standards
See code for structure
Feature: Side coupling set enables precise bay alignment and consistent spacing between adjacent enclosures. Business impact: reduces installation time, minimizes rework, and improves cable management margins in tight automation panels. Application: ideal for IS2 Enclosures for Automation in scalable control systems where side-by-side baying is required for density and serviceability. Feature: Compatibility with IS2 Enclosures for Automation. Impact: eliminates guesswork during design and sourcing, ensuring fast procurement and lower commissioning risk. Application: used when upgrading or reorganizing automation cabinet layouts in manufacturing plants or process industries. Feature: Pre-assembled mounting kit. Impact: cuts on-site assembly labor, reduces field error potential, and accelerates project schedules. Application: supports rapid retrofits and modular expansions in control rooms and distributed automation architectures. Feature: Pickled steel sheet construction. Impact: durable, lightweight framing with corrosion resistance suitable for harsh environments. Application: enclosure bays in automotive, food & beverage, and process industries where reliability matters. Feature: Defined dimensions and references. Impact: standard widths, heights, and depths enable predictable fit with reference lengths 300–1000 mm and heights 1400–2200 mm. Application: supports modular ABB IS2 system configurations for mid- to large-scale control cabinets. RoHS and REACH declarations are included, easing regulatory reviews during procurement and plant audits.
Get a Quick Quote for a ABB EV0003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EV0003?
Enquire Now
FAQs
EV0003 is designed to be fully compatible with IS2 Enclosures for Automation, providing a pre-assembled mounting kit for side-by-side cabinet layouts. The side coupling set guarantees precise bay alignment, minimizing gaps and rework. This supports efficient installation in ABB IS2-based control panels and facilitates scalable automation architectures.
EV0003 features a net width of 250 mm, net height of 35 mm, and net depth of 250 mm, with a reference length range from 300 mm to 1000 mm and reference heights from 1400 mm to 2200 mm. The product weight is 0.494 kg. These specs align with common IS2 enclosure configurations for modular automation cabinets.
Yes. EV0003 complies with RoHS, and REACH declarations are provided. The product also carries a CE Declaration of Conformity, supporting regulatory acceptance across multiple regions and facilitating compliance during procurement and audits.
By delivering a pre-assembled kit with a side coupling system, EV0003 reduces field labor, speeds up commissioning, and minimizes misalignment-related rework. These factors translate to shorter project timelines, lower on-site labor costs, and improved long-term reliability for automation cabinet installations.
Reference the IS2 Enclosures Technical Catalogue, the 1STM604121R0006 manual for installation guidance, the Declaration of Conformity - CE, and RoHS/REACH declarations. Also consult ETIM classifications EC002622 for components in baying systems and the ABB product data sheet for IS2 compatibility.
