ABB EV0022 Control and Automation Board - CE IS2
Part Number: EV0022
Quick Summary
ABB EV0022 Control and Automation Board is a modular 19-inch rack-mount solution for IS2 automation enclosures. In many projects, engineers face space constraints and mounting incompatibilities that slow time-to-value. This solution carries CE conformity, RoHS compliance, and REACH declarations to ensure regulatory alignment and sustainability across plant operations. Built as a pre-assembled kit with galvanized steel rails, it enables scalable automation architecture while preserving a compact cabinet footprint for tighter installations.
Product Information
Extended Description

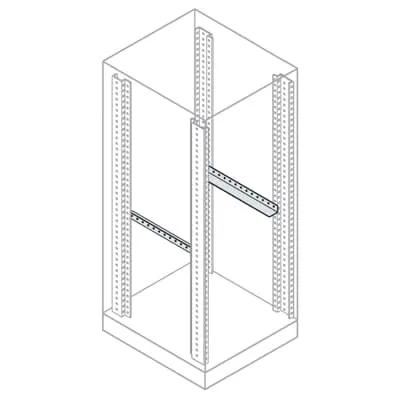

EV0022 ABB: N° 2 "L" supports D 800
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
7. “L” shaped accessories support and shelves for 19” upright
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
52 mm
Product Net Height
55 mm
Product Net Depth / Length
800 mm
Product Net Weight
0.90 kg
Reference Depth/Length
1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.9 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
Feature: 482.6 mm (19 inch) mounting set. Business Impact: Standardized rack compatibility reduces installation time and calibration effort. Application: Control panels in IS2 enclosures where modular uprights and rails are required. Feature: Suitable For IS2 Enclosures for Automation. Business Impact: Seamless integration with ABB IS2 systems minimizes engineering changes and spare-part variance. Application: Factory automation cabinets that demand proven enclosure compatibility. Feature: Mounting Type Kit | Pre assembled. Business Impact: Flexibility to retrofit or deploy straight from the box, cutting on-site labor. Application: New builds and upgrades across process lines. Feature: Material Galvanized Steel sheet. Business Impact: Corrosion resistance and durability in harsh environments, lowering maintenance costs. Application: Industrial environments and manufacturing floors. Feature: Options Provided 7. “L” shaped accessories support and shelves for 19” upright. Business Impact: Additional mounting options improve component layout and airflow management. Application: Custom rack configurations with improved cable routing. Feature: Product Net Depth / Length 800 mm; Reference Depth/Length 1000 mm; Reference Height 1400–2200 mm; Reference Width 600–800 mm. Business Impact: Clear space-planning data supports accurate enclosure sizing and future expansion. Application: Cabinet planning for scalable automation topology. The combination with RoHS/REACH declarations and a lightweight 0.90 kg design further lowers total cost of ownership while enabling quick upgrades and easier maintenance.
Get a Quick Quote for a ABB EV0022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EV0022?
Enquire Now
FAQs
Begin by confirming the IS2 enclosure size and selecting the appropriate reference height (1400–2200 mm) and width (600–800 mm). Use the 482.6 mm (19 inch) mounting set to align the rails, then secure the kit with the pre-assembled hardware or the kit option based on your retrofit needs. Ensure alignment with the Galvanized Steel sheet frame for rigidity, then connect internal components and verify clearance.
Yes. The EV0022 is specifically designed as a 19-inch rack mounting solution for IS2 enclosures. It uses a standard 482.6 mm mounting set and a pre-assembled or kit mounting type, allowing seamless integration with widely used 19-inch rack infrastructure in automation cabinets.
EV0022 carries CE conformity with the IS2 declaration of conformity and is RoHS and REACH compliant. The RoHS date is 20250108, and REACH information confirms absence of substances over the regulatory thresholds. This combination supports regulatory alignment across European projects and sustainability goals.
Key dimensions include a product net depth of 800 mm, net width of 52 mm, and net height of 55 mm, with reference depth 1000 mm and reference heights from 1400 to 2200 mm. Reference widths span 600 to 800 mm. The product weighs 0.90 kg, which aids in handling during installation and reduces support requirements.
The EV0022 delivers standardized mounting for 19-inch racks, reducing installation time and risk of misalignment. Its Galvanized Steel construction extends enclosure life, while the kit option supports quick retrofits. With CE, RoHS, and REACH compliance, you gain regulatory confidence, lower maintenance costs, and a scalable solution for evolving automation architectures.
