ABB EV0120 Control and Automation Board - CE Certified
Part Number: EV0120
Quick Summary
ABB EV0120 is a control and automation board designed for IS2 enclosure systems in automation projects. Engineers often struggle with integrating uprights, mounting compatibility, and staying compliant during rapid deployments. This kit delivers CE conformity along with RoHS and REACH declarations, and directly suits IS2 enclosures for automation. The two-uprights configuration with a 180° hinge simplifies assembly, while the pickled steel sheet construction offers durability for harsh industrial environments. With scalable reference widths and depths, it supports growing control-panel needs and reduces future rework. In short, EV0120 translates regulatory compliance and modularity into faster installations and lower life-cycle costs for OEMs and systems integrators.
Product Information
Extended Description

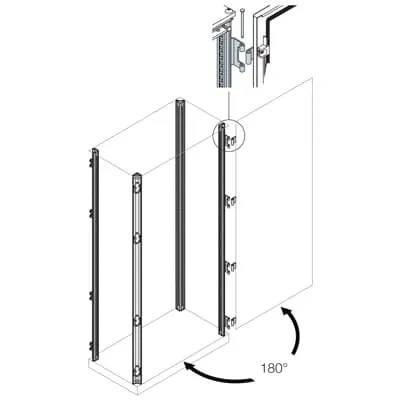

EV0120 ABB: Uprights + hinges opening 180° H=2000mm
Sub-Function 3
Other
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Configuration Type
2. Uprights
Mounting Type
Kit
Product Type
5B5B20B220
Material
Pickled steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
100 mm
Product Net Height
2000 mm
Product Net Depth / Length
100 mm
Product Net Weight
17.510 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
2000 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
17.870 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Two uprights with 180° hinge. Business impact: Simplified installation and improved access for wiring, reducing panel mounting time by aligning with IS2 enclosure footprints. Application: Ideal for mid- to large-scale automation panels where serviceability matters. Feature: Kit mounting type. Business impact: Streamlined procurement and on-site assembly, enabling faster project turnover and consistent panel builds. Application: OEMs and systems integrators deploying standardized enclosures. Feature: Material from pickled steel sheet. Business impact: Enhanced durability and corrosion resistance in harsh environments, lowering maintenance cycles. Application: Industrial control panels in manufacturing and process industries. Feature: Broad reference widths and depths. Business impact: Flexible layout options to match customer specifications without custom fabrication, lowering engineering overhead. Application: Systems requiring modular panel depth from 300 to 1000 mm and width from 400 to 1200 mm. Feature: Compliance documentation and labeling. Business impact: Regulatory risk mitigation and faster audit readiness, supporting CE, RoHS, and REACH requirements. Application: Projects with strict compliance timelines and supplier qualification processes. Feature: Packaging and weight data. Business impact: Predictable logistics and handling, enabling accurate freight planning and on-time delivery. Application: Global deployments with standard one-piece packaging.
Get a Quick Quote for a ABB EV0120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EV0120?
Enquire Now
FAQs
The EV0120 ships as a two-uprights kit with mounting hardware designed for IS2 automation enclosures. It features a 180° hinge for easy access, enabling fast assembly and reduced commissioning time while preserving a clean, serviceable panel layout.
Key dimensions include a product net height of 2000 mm, net width of 100 mm, and net depth of 100 mm, with reference widths from 400 to 1200 mm and reference depths from 300 to 1000 mm, supporting flexible enclosure sizing.
Yes. The EV0120 carries CE conformity (Declaration of Conformity IS2) and RoHS/REACH declarations, with RoHS and REACH information and dates listed to support regulatory audits and supplier qualification.
It is intended for IS2 enclosures for automation and supports Control and Automation Board configurations. The kit is ideal for scalable control-panel builds in manufacturing, process control, and machine automation projects.
Documentation includes the CE Declaration of Conformity, REACH information, RoHS data with date 20250108, and installation data such as 1STM604121R0006, plus references to the IS2 Enclosures Technical Catalogue 2024 and related ETIM/eClass classifications.
