ABB EV0400 Other/Miscellaneous - IS2 Enclosures for Automation
Part Number: EV0400
Quick Summary
ABB EV0400 control and automation board enables compact wiring and centralized control inside IS2 automation enclosures. Designed to reduce panel footprint and simplify installation, it helps engineers avoid misrouting cables and costly change orders. CE Declaration of Conformity, RoHS compliance, and REACH declarations provide regulatory assurance for industrial projects. With a 19-inch rack structure and a pre-assembled kit, built from galvanized steel, it supports scalable automation panels and easier servicing. Its documented dimensions and weight help project teams plan space, cable routes, and future upgrades with confidence. Together, these features translate into faster commissioning, lower total installed cost, and safer, compliant automation systems.
Product Information
Extended Description

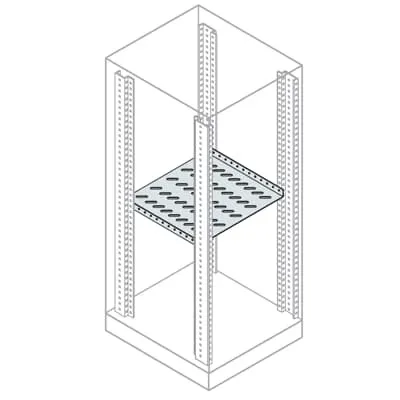

EV0400 ABB: Shelf D 400
Sub-Function 3
482.6 mm (19 inch) mounting set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
13. 19" rack structure
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B350
Material
Galvanized Steel sheet
Options Provided
7. “L” shaped accessories support and shelves for 19” upright
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
444 mm
Product Net Height
30 mm
Product Net Depth / Length
400 mm
Product Net Weight
2.750 kg
Reference Depth/Length
600 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm | 800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.75 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Standards
See code for structure
Feature 482.6 mm (19 inch) mounting set → Business Impact standardizes rack alignment, enabling quick, reliable mounting of control boards; Application IS2 Enclosures for Automation accelerates panel builds and reduces rework. Feature Suitable For IS2 Enclosures for Automation → Business Impact ensures end-to-end compatibility, minimizing retrofit work; Application Automation panel construction is streamlined. Feature Mounting Type Kit | Pre assembled and 7 L-shaped accessories support and shelves → Business Impact cuts assembly time, simplifies maintenance, and improves service access; Application New installs and upgrades are faster. Feature Material Galvanized Steel sheet → Business Impact offers durability and corrosion resistance for harsh industrial environments; Application Long service life in factory settings with reduced replacement costs. Feature Options Provided 7. “L” shaped accessories, support and shelves for 19” upright → Business Impact enhances configurability and future expansion without additional parts; Application Flexible rack configurations for evolving control systems. Feature Dimensions and Weight Product Net Width 444 mm, Product Net Depth 400 mm, Product Net Height up to 1400–2200 mm, Product Net Weight 2.750 kg → Business Impact supports precise space planning and standardized fit across DERIS and automation panels; Application Fits IS2 enclosures with defined reference dimensions to avoid rework and ensure consistent mounting.
Get a Quick Quote for a ABB EV0400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EV0400?
Enquire Now
FAQs
Installers should verify IS2 enclosure compatibility, then use the 482.6 mm mounting set to align the 19-inch rack. The pre-assembled mounting kit includes L-shaped accessories and shelves for rapid integration of a Control and Automation Board, ensuring cables route cleanly and panels remain serviceable.
EV0400 features a product net width of 444 mm, net depth of 400 mm, and net height selectable from 1400 to 2200 mm, with a product net weight of 2.750 kg. Reference depth is 600 mm, and reference widths include 600 mm or 800 mm, aiding space planning in IS2 enclosures.
Yes, EV0400 is specifically designed for IS2 Enclosures for Automation and supports the Product Class 'Control and Automation Board'. It ships as a kit with pre-assembled mounting options, promoting straightforward integration into automation panels.
EV0400 carries a CE Declaration of Conformity, RoHS compliance, and a REACH declaration (with explicit information). WEEE categorization notes it is not in WEEE scope. These certifications help mitigate regulatory risk during deployment in industrial environments.
The pre-assembled 19-inch rack structure reduces commissioning time and minimizes wiring errors, delivering faster time-to-panel. Durable galvanised steel and RoHS/REACH compliance lower maintenance and compliance costs, while modular shelves and L-shaped supports support future expansions without costly rework.
