ABB EV1071K Document Pocket - ETIM EC000317 Document Holder
Part Number: EV1071K
Quick Summary
ABB EV1071K is a document pocket that protects and organizes cabinet documentation for AM2 and IS2 automation enclosures. Engineers often struggle with misplaced paperwork and non-standard labeling inside control panels, slowing maintenance and upgrades. This accessory delivers CE conformity via IS2, aligns with ETIM EC000317 as a document holder for enclosures, and supports RoHS/REACH obligations for modern plant compliance. By standardizing pockets and color, it reduces search time during audits and repairs. Aligning with IS2 Enclosures Technical Catalogue 2024, the EV1071K also offers a straightforward mounting path and predictable lifecycle costs, helping procurement teams simplify specification and on-site installation while keeping critical documentation visually accessible.
Product Information
Extended Description

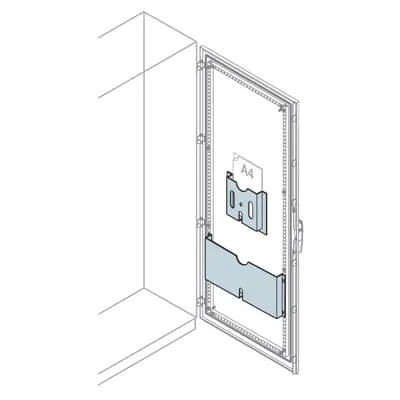

EV1071K ABB: Metal diagram holder pocket for door W=600mm
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
21. Accessories
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B391
Material
Pickled steel sheet
Options Provided
1.Document pockets
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
280 mm
Product Net Height
48 mm
Product Net Depth / Length
480 mm
Product Net Weight
1.540 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.570 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000317 - Document holder (enclosure/cabinet)
ETIM 9
EC000317 - Document holder (enclosure/cabinet)
eClass
V11.1 : 27182801
Object Classification Code
U
Standards
See code for structure
Durable construction with pickled steel sheet provides long service life in demanding cabinet environments, reducing replacement costs and downtime. The robust metal design resists scuffs and corrosion, ensuring legible diagrams and up-to-date documentation even in busy production spaces. This accessory ships as a kit or pre-assembled, enabling fast, flexible installation that minimizes field labor and risk of improper mounting. Its mounting versatility supports doors and panels across a range of ABB enclosures, accelerating project timelines and reducing commissioning delays. With a net width of 280 mm, net height of 48 mm, and net depth of 480 mm plus reference sizes, EV1071K fits standard IS2/AM2 door configurations, lowering design reviews and procurement friction. The RAL 7035 light grey finish delivers consistent aesthetics with IS2 enclosures, aiding visual management and labeling. Compliance features—CE Declaration IS2, RoHS, REACH, ETIM EC000317—plus one document pocket simplify audits and regulatory reporting, reducing risk and supporting ongoing maintenance.
Get a Quick Quote for a ABB EV1071K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EV1071K?
Enquire Now
FAQs
Installers can choose between kit-included or pre-assembled mounting options. The EV1071K is designed to attach to enclosure doors or panels with standard hardware, minimizing field work and ensuring a secure, vibration-resistant fit suitable for automation cabinets.
The pocket features a net width of 280 mm, height of 48 mm, and depth of 480 mm, with reference options across 300–1000 mm depth and 1400–2200 mm height. This enables predictable fit for IS2 and AM2 doors without custom fabrication.
Yes. EV1071K is specified for AM2 Cabinets and IS2 Enclosures for Automation and aligns with ETIM EC000317 for documentation holders, making it a compliant and compatible choice for these systems.
EV1071K carries CE conformity via IS2, ETIM classification EC000317, RoHS and REACH declarations, and WEEE status indicating in-scope or out-of-scope. These certifications ensure regulatory compliance, safer maintenance, and consistent procurement criteria.
By standardizing and protecting cabinet documentation with a dedicated pocket, EV1071K reduces search time during inspections, lowers downtime during maintenance, and simplifies compliance reporting, ultimately improving uptime and audit readiness.
