ABB EV1130 Control and Automation Board - CE RoHS
Part Number: EV1130
Quick Summary
ABB EV1130 Control and Automation Board optimizes cabinet wiring for automation deployments. In busy plant environments, tangled cables and space constraints slow startups and escalate maintenance costs. The unit carries CE Declaration of Conformity, RoHS compliance dating 20250108, and REACH information, helping you meet regulatory and sustainability targets. It ships as a kit with pre-assembled mounting, plus 15. wiring duct support brackets that simplify field installation and future reconfiguration. Built from durable metal, the EV1130 supports IS2 Enclosures for Automation and AM2 Cabinets, with flexible reference depths and heights to suit various line sizes. This design reduces errors, speeds commissioning, and lowers lifecycle costs.
Product Information
Extended Description

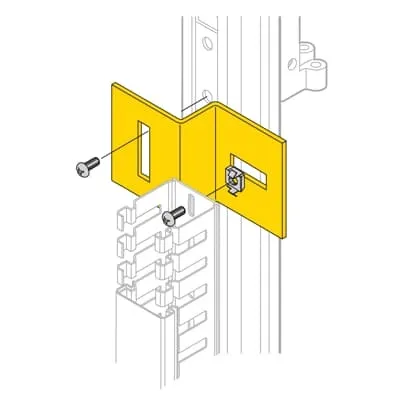

EV1130 ABB: N°100 wiring duct support brackets on upright structure
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation | C2 Consolle - IP55
Suitable for Product Class
Control and Automation Board
Accessory Type
15. Distribution and earthing system
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B391
Material
Metal
Options Provided
15. Wiring duct support brackets
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
120 mm
Product Net Height
100 mm
Product Net Depth / Length
0.120 mm
Product Net Weight
1.040 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.040 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002624 - Components for wiring, cable entry, cable fixing (enclosure/cabinet)
ETIM 9
EC002624 - Components for wiring, cable entry, cable fixing (enclosure/cabinet)
eClass
V11.1 : 27182815
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit with wiring duct support brackets. Business Impact: Speeds initial installation and simplifies future reconfigurations, reducing downtime during line upgrades. Application: Ideal for AM2 Cabinets and IS2 Enclosures, where tight spaces and modular layouts demand quick integration. Feature: Durable metal construction. Business Impact: Improves mechanical resilience in harsh industrial environments, lowering maintenance intervals and lifecycle costs. Application: Suitable for automation panels in manufacturing and process lines that require robust hardware. Feature: Flexible size and footprint options. Business Impact: Enables a tailored fit across reference depths/heights (300–1000 mm; 1400–2200 mm) and widths (400–1600 mm), reducing the need for custom enclosures. Application: Streamlines standardization across multiple lines and SKUs. Feature: Regulatory compliance package. Business Impact: Ensures CE, RoHS, and REACH conformance, mitigating regulatory risk and speeding audits. Application: Supports compliance workflows for electrical cabinets and automation assemblies. Feature: Wiring and earthing integration. Business Impact: Provides 15. Wiring duct support brackets and a dedicated earthing system, improving safety and fault isolation. Application: Helpful for installation teams aiming for clean cable routing and reliable earth connections. Feature: Documentation and installation support. Business Impact: Reduces commissioning time with clear manuals (1STM604121R0006) and ETIM-aligned classification, cutting upfront engineering effort. Application: Valuable for OEMs and integrators managing multiple panel builds.
Get a Quick Quote for a ABB EV1130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EV1130?
Enquire Now
FAQs
The EV1130 is specified for AM2 Cabinets and IS2 Enclosures for Automation, with a kit-based mounting approach and pre-assembled components. It also supports C2 Consolle - IP55 configurations, making it a solid choice for standard automation cabinet builds and modular IS2 installations.
The EV1130 carries a CE Declaration of Conformity and RoHS compliance dated 20250108, along with REACH information. It also references ETIM classifications and a WEEE category indicating non-wEEE scope, supporting regulatory alignment and supplier due diligence.
Net width is 120 mm, net height 100 mm, and net depth listed as 0.120 mm in the data. The product net weight is 1.040 kg, with reference depth/length options from 300 to 1000 mm and reference heights from 1400 to 2200 mm, enabling flexible panel sizing.
Install with the pre-assembled mounting kit and wiring duct brackets to minimize field assembly time. Refer to installation manuals 1STM604121R0006 for step-by-step guidance and ensure compatibility with IS2 Enclosures or AM2 Cabinets for automation projects.
Expect reduced commissioning time, improved cable routing and earthing, regulatory compliance (CE, RoHS, REACH), and lower lifecycle costs due to durable metal construction and standardized dimensions. The product streamlines upgrades and supports scalable automation across multiple lines.
