ABB EV1131 Other/Miscellaneous - CE Declaration of Conformity
Part Number: EV1131
Quick Summary
ABB EV1131 is a control and automation board assembly for mounting wiring duct brackets on automation enclosures. Designed to streamline wiring organization, it reduces field install time and minimizes miswiring in complex cabinets. The assembly carries CE conformity, RoHS compliance, and REACH declarations, ensuring regulatory alignment and safer product handling in harsh environments. Compatible with AM2 cabinets and IS2 enclosures, it supports pre-assembled kits for faster deployment, improving maintenance readiness and total cost of ownership.
Product Information
Extended Description

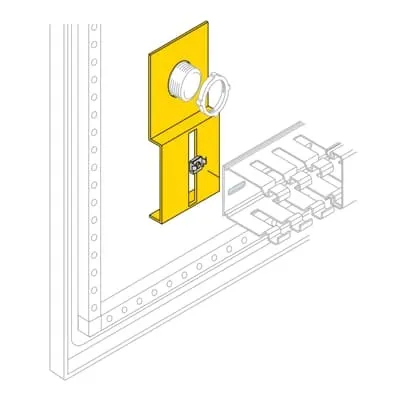

EV1131 ABB: N°100 wiring duct support brackets on pushbuttons ø22
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation | C2 Consolle - IP55
Suitable for Product Class
Control and Automation Board
Accessory Type
15. Distribution and earthing system
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B391
Material
Metal
Options Provided
15. Wiring duct support brackets
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
250 mm
Product Net Height
100 mm
Product Net Depth / Length
0.250 mm
Product Net Weight
5.770 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
5.890 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002620 - Components for installation (enclosure/cabinet)
ETIM 9
EC002620 - Components for installation (enclosure/cabinet)
eClass
V11.1 : 27182811
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit reduces field assembly and wiring time. Benefit: Accelerates initial setup and decreases labor costs, enabling faster project timelines in automation projects. Application: Ideal for AM2 cabinets and IS2 enclosures where quick deployment is critical. Feature: Metal construction provides rugged durability. Benefit: Withstands vibration and harsh industrial environments, improving uptime in IP55-rated installations. Application: Suitable for IS2 Enclosures Technical Catalogue 2024 environments. Feature: Included wiring duct support brackets simplifies wiring management. Benefit: Improves routing quality, airflow, and service accessibility, reducing maintenance expenses. Application: Control and automation boards in automation cabinets. Feature: Flexible sizing compatibility with reference depths and heights. Benefit: Supports multiple enclosure sizes (300–1000 mm depth, 1400–2200 mm height, 400–1600 mm width) reducing part proliferation. Application: Mixed cabinet families in IS2 systems. Feature: Compliance and documentation integration. Benefit: CE, RoHS, and REACH declarations streamline regulatory audits and supplier qualification. Application: Industries with strict regulatory requirements such as process automation and energy equipment.
Get a Quick Quote for a ABB EV1131
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EV1131?
Enquire Now
FAQs
Yes. EV1131 is designed as a kit or pre-assembled mounting solution compatible with AM2 cabinets and IS2 enclosures for automation. It integrates with the enclosure framework and supports 250 mm width, 100 mm height, and 300–1000 mm reference depths to match common automation layouts.
Key specs include metal construction, 250 mm net width, 100 mm net height, and 5.770 kg net weight. It also references various depths/heights (300–1000 mm depth and 1400–2200 mm height) and supports wiring duct brackets for pushbuttons Ø22, with mounting options of kit or pre-assembled.
EV1131 suits control and automation boards within automation cabinets and IS2 enclosures, particularly in industries requiring robust enclosure systems with organized wiring ducting. It supports IP55 environments and is aligned with ETIM EC002620 classifications, making it ideal for process automation, manufacturing lines, and electrical installations with stringent regulatory needs.
EV1131 carries CE conformity as declared, with RoHS information and REACH declarations. It complies with WEEE guidance and is documented for IS2 enclosures alongside the IS2 Technical Catalogue 2024, helping with regulatory audits and supplier qualification.
By delivering a pre-assembled mounting solution with wiring duct brackets, EV1131 reduces installation time and field wiring errors, lowering labor costs and downtime. Its durable metal construction and documented compliance support long-term maintenance, easier asset management, and improved return on investment in automation projects.
