ABB EV1143 Control and Automation Board - CE RoHS
Part Number: EV1143
Quick Summary
ABB EV1143 Control and Automation Board enables compact cabinet automation for AM2 IS2 enclosures. Engineers often face space constraints, wiring complexity, and the need for reliable guard interlocking in panel assemblies. This unit carries CE conformity and RoHS compliance, with ETIM classification for accurate cataloging and REACH declarations to support regulatory workflows. By pre-assembling a kit with interlock plus one NC contact and integrated lighting/ signalling options, it reduces installation time and minimizes on-site wiring errors. The product fits IS2 Enclosures Technical Catalogue 2024 and is designed to streamline procurement and maintenance while offering scalable reference depths and standard widths.
Product Information
Extended Description

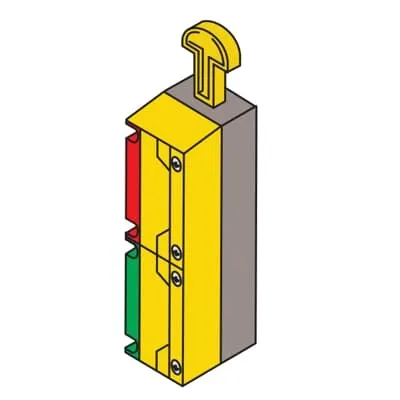

EV1143 ABB: Interlock + 1 contact NC
Sub-Function 3
Contacts for position switch
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
16. Lighting and signalling devices
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B391
Material
Pickled steel sheet
Options Provided
3. Voltage detector device
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
50 mm
Product Net Height
50 mm
Product Net Depth / Length
0.050 mm
Product Net Weight
0.061 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.064 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002593 - Position switch with guard locking
ETIM 9
EC002593 - Position switch with guard locking
eClass
V11.1 : 27270611
Object Classification Code
U
Standards
See code for structure
Feature → Interlock plus NC contact integrated into the enclosure kit; Business Impact → Improves safety compliance and reduces field wiring complexity; Application → Ideal for guard-locking applications in AM2 cabinets within IS2 enclosures. Feature → Mounting Type Kit or Pre-assembled; Business Impact → Speeds up installation and minimizes on-site assembly errors; Application → Supports turnkey projects and modular cabinet builds. Feature → Material: Pickled steel sheet; Business Impact → Delivers durable construction with corrosion resistance for industrial environments; Application → Suitable for harsh manufacturing settings. Feature → Options Provided: 3. Voltage detector device; Business Impact → Enhances maintenance safety with voltage awareness during service; Application → Common in automation panels where human interaction risk exists. Feature → Dimensions and footprint: 50 mm width, 50 mm height; Business Impact → Conserves panel space while maintaining accessibility; Application → Fits compact IS2/AM2 configurations. Feature → Compliance and documentation: CE Declaration, RoHS and REACH disclosures; Business Impact → Streamlines regulatory audits and supplier qualification; Application → Essential for QA processes and global deployments. Feature → Mounting and compatibility: Kit | Pre assembled; Business Impact → Reduces installation time and improves reproducibility across sites; Application → Fits IS2 Enclosures Technical Catalogue 2024 guidance.
Get a Quick Quote for a ABB EV1143
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EV1143?
Enquire Now
FAQs
EV1143 is designed for AM2 cabinets and IS2 enclosures. It ships as a kit or pre-assembled mounting option and includes an interlock plus one NC contact, enabling seamless integration into standard ABB IS2 enclosure configurations while preserving safe access and guard integrity.
Key features include an interlock with one normally closed contact, support for a voltage detector device, and compatibility with the 5B5B30B391 product class. It is built on pickled steel sheet for durability, and conforms to CE and RoHS requirements with REACH declarations.
Yes, EV1143 carries a CE Declaration of Conformity (IS2) and RoHS compliance. The CE declaration is referenced in the product data and can be located alongside related documentation such as the IS2 Enclosures Technical Catalogue 2024.
EV1143 supports kit or pre-assembled mounting, designed for quick integration into AM2 cabinets and IS2 enclosures. Its compact footprint (50x50 mm) helps conserve space, while the included interlock and NC contact simplify wiring and ensure reliable guard locking during operation.
By reducing field wiring, enabling pre-assembled configurations, and providing integrated interlocking, EV1143 lowers installation labor and commissioning time. Its standardized dimensions and ETIM classification improve procurement accuracy, audit readiness, and long-term maintenance planning, offering predictable lifecycle costs.
