ABB EV1148 Control & Automation Board - Voltage detector
Part Number: EV1148
Quick Summary
ABB EV1148 Control and Automation Board is a compact control panel module for AM2 cabinets and IS2 enclosures. Installing in tight spaces often requires compromises on safety interlocks and local signaling; EV1148 provides an integrated voltage detector, interlock, and a built-in NC contact to streamline wiring and reduce panel footprint. CE Declaration of Conformity confirms industrial compliance, RoHS and REACH declarations ensure regulatory alignment, and WEEE categorization supports responsible end-of-life management. Designed for long-term value in automation projects, it supports IS2 enclosures and AM2 cabinets, offering faster installation and easier maintenance. This makes it a cost-effective, compliant choice for panel builders and integrators seeking reliable automation cabinet solutions that reduce wiring complexities and downtime.
Product Information
Extended Description

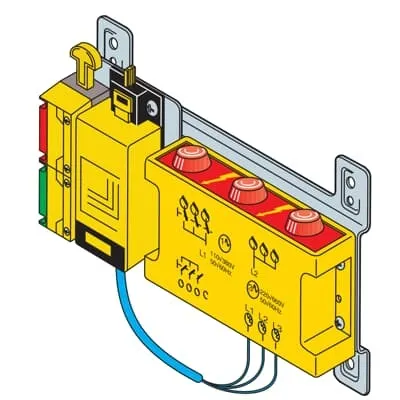

EV1148 ABB: Voltage detector device + interlock + 1 NC contact
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
16. Lighting and signalling devices
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B391
Material
Pickled steel sheet
Options Provided
3. Voltage detector device
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
120 mm
Product Net Height
30 mm
Product Net Depth / Length
0.120 mm
Product Net Weight
0.619 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.652 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002494 - Signal device with LED-multicolourlamp
ETIM 9
EC002494 - Signal device with LED-multicolourlamp
eClass
V11.1 : 27143218
Object Classification Code
U
Standards
See code for structure
Feature: Integrated voltage detector device, interlock, and one NC contact built into the EV1148. Business Impact: Reduces wiring complexity and improves safety by consolidating protection and signaling in a single kit for AM2 cabinets and IS2 enclosures. Application: Ideal for automation panels requiring compact, reliable signaling and interlock capabilities. Paragraph 2: Feature: Mounting Type is Kit or Pre-assembled. Business Impact: Accelerates installation and reduces risk of field assembly errors, enabling predictable project timelines. Application: Supports fast deployment in panel builds for OEMs and integrators. Paragraph 3: Feature: Pickled steel sheet construction. Business Impact: Delivers robust durability in demanding industrial environments, extending component life and reducing maintenance costs. Application: Suitable for IS2 enclosures and heavy-use automation cabinets. Paragraph 4: Feature: 120 mm width × 30 mm height footprint with configurable reference depth from 300 to 1000 mm. Business Impact: Optimizes rack space and provides flexible enclosure sizing, improving overall cabinet scalability. Application: Fits modular automation installations with varied depths in production lines. Paragraph 5: Feature: RoHS and REACH compliance, WEEE category, and CE Declaration of Conformity with ETIM classification. Business Impact: Ensures regulatory compliance and simplifies procurement processes. Application: Suitable for regulated facilities and global supply chains. Paragraph 6: Feature: Installation documentation and manuals (1STM604121R0006) included. Business Impact: Reduces commissioning time and minimizes setup errors. Application: Engineers rely on specifications for accurate wiring and safe integration.
Get a Quick Quote for a ABB EV1148
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EV1148?
Enquire Now
FAQs
Yes. The EV1148 is designed for AM2 cabinets and IS2 enclosures, offered as a mounting kit or pre-assembled option to simplify integration. Its compact 120 mm width and 30 mm height footprint supports efficient panel layouts while accommodating standard enclosure depths from 300 to 1000 mm.
The EV1148 integrates a voltage detector device, interlock, and one NC contact into a single unit, reducing wiring complexity and improving safety and signaling reliability. This combination enables safer startup/shutdown sequencing and straightforward fault indication within compact control panels.
Industries with compact control panels in automation lines benefit most, including manufacturing, process automation, and packaging. The device is ideal for AM2 cabinets and IS2 enclosures where space is at a premium and integrated signaling is required for safety and efficiency.
The EV1148 carries CE Declaration of Conformity, RoHS and REACH compliance, and WEEE categorization. It also aligns with ETIM classifications for standardized product data, ensuring procurement and regulatory requirements are met across diverse regions.
By consolidating voltage detection, interlock, and signaling in one module, EV1148 reduces wiring labor and field assembly errors, cutting installation time. Durable pickled steel construction and clear installation manuals further reduce maintenance needs, contributing to lower lifecycle costs and faster time-to-value in automation projects.
