ABB EV1160 Door Block - IS2 Enclosures
Part Number: EV1160
Quick Summary
ABB EV1160 Door Block is a rugged enclosure module for System pro E control installations. Engineers often struggle with modular mounting and secure door locking in tight control panels. The design aligns with CE declarations, RoHS compliance, and REACH information, ensuring regulatory readiness for European deployments. By providing a pre-assembled mounting kit in a metal enclosure, it simplifies field assembly, reduces wiring errors, and accelerates commissioning. This delivers shorter project timelines and lower lifecycle costs while maintaining compatibility with Automation and Control Enclosures IS2 series and System pro E control environments. For procurement, the EV1160 offers standardized dimensions and a reliable door mechanism that minimizes change orders and downtime.
Product Information
Extended Description

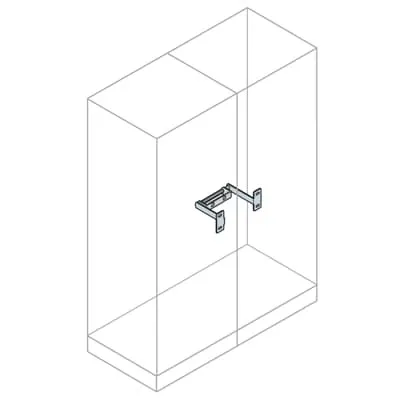

EV1160 ABB: Door Block
Sub-Function 3
Other
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Automation and Control Enclosures (System pro E control)
Accessory Type
21. Accessories
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B310
Material
Metal
Options Provided
3. Door lock
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
120 mm
Product Net Height
50 mm
Product Net Depth / Length
120 mm
Product Net Weight
0.84 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
0.85 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
IS2 instruction handbook 2024
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002626 - Components for door (enclosure/cabinet)
ETIM 9
EC002626 - Components for door (enclosure/cabinet)
eClass
V11.1 : 27182816
Object Classification Code
U
Standards
See code for structure
Feature: Metal enclosure construction with a pre-assembled mounting kit. Business Impact: enhances durability in harsh industrial environments and minimizes field wiring and assembly time. Application: ideal for System pro E control IS2 automation enclosures, delivering reliable, plug-and-play integration. Feature: Precise dimensions and weight (120 mm W x 50 mm H x 120 mm D; 0.84 kg) with reference depth/length options (300–1000 mm) and reference height (1400–2200 mm). Business Impact: supports flexible panel sizing, reduces cabinet fabrication, and lowers logistics costs. Application: suitable for a range of ABB IS2 enclosure configurations. Feature: Door lock option as part of accessory type 21. Accessories. Business Impact: enhances security and controlled access for safety-critical automation lines. Application: ideal where lockable access is required on IS2 enclosures. Feature: Compliance suite including CE, RoHS, and REACH declarations. Business Impact: regulatory alignment reduces risk, simplifies audits, and accelerates approvals. Application: European installations and customer projects with strict compliance requirements. Feature: Compatibility with System pro E control and Automation and Control Enclosures (IS2). Business Impact: streamlines procurement and installation across multiple enclosure families, reducing change orders and maintenance overhead. Application: scalable for growing control systems and modular panel designs.
Get a Quick Quote for a ABB EV1160
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EV1160?
Enquire Now
FAQs
Install the EV1160 as a pre-assembled mounting kit designed for System pro E control IS2 enclosures. Use standard enclosure mounting hardware, align with reference depths (300–1000 mm) and heights (1400–2200 mm), and attach the door lock if required. Follow the IS2 instruction handbook 2024 for sequence and torque specifications to ensure a secure, compliant fit.
The EV1160 features a compact metal enclosure with 120 mm width, 50 mm height, and 120 mm depth. It weighs 0.84 kg in its net form. Reference depth/length options range from 300 mm to 1000 mm, while reference height options span 1400 mm to 2200 mm, enabling flexible integration into System pro E IS2 cabinets.
Yes. The EV1160 is specifically designed for Automation and Control Enclosures (System pro E control) IS2. It serves as a compatible door block with pre-assembled mounting or kit configurations, ensuring seamless integration across ABB IS2 enclosure lines and reducing customization needs.
EV1160 carries CE Declaration of Conformity, RoHS information, and REACH information. This supports regulatory compliance for European installations, helps simplify audits, and assures customers that the enclosure component meets essential safety and environmental standards for automation panels.
By offering a pre-assembled mounting kit and a durable metal enclosure with standard IS2 compatibility, the EV1160 reduces on-site assembly time, lowers wiring errors, and minimizes change orders. Its regulatory compliance and modular design also decrease maintenance overhead and extend panel reliability, delivering measurable ROI across installation and operation phases.
